MSRP: $6,649.00
$1,650.00 Savings
Total Price: $4,999.00
* Plus Applicable Charges

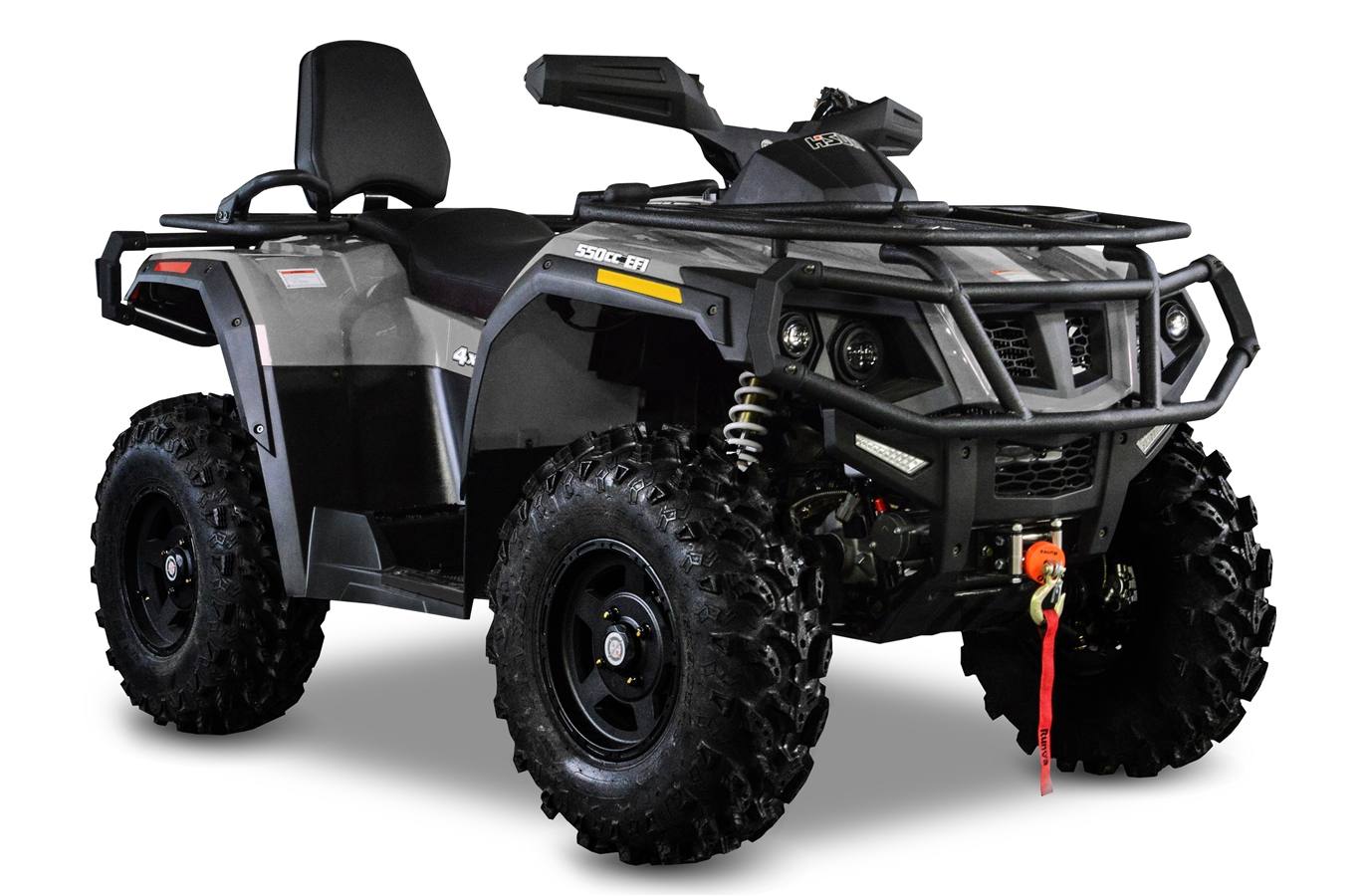

* Sale Price does not include Freight, Set-up, Tax, License and Doc fee.The full-size Tactic 550 EPS 2-Up comes equipped with a 4-Stroke OHV 546cc Single Cylinder EFI Engine and 4-Wheel drive giving you the ability to take on the toughest trails. The Dual A-Arm Nitrogen Assisted Shocks give the Tactic 550 a smooth unforgettable ride. The Tactic’s front and rear cargo racks and a 2500LB Winch make it the right choice for your off-road adventure.
For safety and training call the SVIA at (800) 887-2887 or visit www.atvsafety.org for an online safety course.
ENGINE
Engine Type : 4-Stroke Single Cylinder OHC
Cylinder Displacement : 546 cc
Fuel System : Electronic Fuel Injection
Cooling : Liquid
DRIVE TRAIN
Transmission : Automatic CVT L/H/N/R/P
Drive System : 2WD / 4WD
Locking Differential : Front
Final Drive : Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension : Dual A-Arm
Rear Suspension : Dual A-Arm
Shocks : Hydraulic w/ Nitrogen Assist
Front / Rear Brakes : Hydraulic Disc
Parking Brake : Mechanical
Front Tires : 26 x 9-12
Rear Tires : 26 x 10-12
Wheels : Aluminum
DIMENSIONS
Overal Vehicle (L x W x H) : 90" x 47" x 54.5"
Wheel Base : 57"
Rack Capacity : Front 44 LB / Rear 77 LB
Person Capacity : 2
Fuel Capacity : 4.5 Gallons
Empty Vehicle Weight Rating (EVW) : 860 LBS
Gross Vehicle Weight Rating (GVW) : 1,334 LBS
Towing Rating : 1,200 LB
Ground Clearance : 11"
OTHER
Instrumentation : Analog Speedometer & Tachometer with LCD Rider Information
Winch : 2,500 LBS
Brake Lights : Yes
Head Lights : High / Low Beam
Turn Signals & Horn : Yes
Cargo Racks : Front / Rear
Power Steering (EPS) : Yes
Warranty : 2-Year Limited
Color : Camo, Red, Bahama Blue
PRICING
| Price | Standard |
| Price - Warranty (Months) | 24 |
| Price - Warranty (Condition) | Limited |
ENGINE
| Engine | Standard |
| Engine - Engine Type | Single-Cylinder |
| Engine - Cylinders | 1 |
| Engine - Engine Stroke | 4-Stroke |
| Engine - Cooling | Liquid |
| Engine - Valves | 2 |
| Engine - Valves Per Cylinder | 2 |
| Engine - Valve Configuration | OHV |
| Engine - Bore (mm) | 91 |
| Engine - Bore (in) | 3.58 |
| Engine - Stroke (mm) | 84 |
| Engine - Stroke (in) | 3.31 |
| Engine - Displacement (cc) | 546 |
| Engine - Displacement (ci) | 33.3 |
| Engine - Compression Ratio | 9.6:1 |
| Engine - Starter | Electric / Pull |
| Engine - Fuel Requirements | Regular |
| Engine - Fuel Type | Gas |
| Carburetion | Standard |
| Carburetion - Fuel Injector | Yes |
| Carburetion - Carburetor | No |
| Carburetion - Carburetion Type | Fuel Injected |
TRANSMISSION
| Transmission | Standard |
| Transmission - Transmission Type | Continuously Variable (CVT) |
| Transmission - Primary Drive (Rear Wheel) | Shaft |
| Transmission - Primary Drive (Engine / Transmission) | Belt |
| Transmission - Reverse | Yes |
| Transmission - Hi / Low Range | Yes |
| Transmission - Primary Drive (Front Wheel) | Shaft |
TECHNICAL SPECIFICATIONS
| Dimensions | Standard |
| Dimensions - Length (in) | 90 |
| Dimensions - Length (mm) | 2286 |
| Dimensions - Width (in) | 47 |
| Dimensions - Width (mm) | 1193.8 |
| Dimensions - Height (in) | 54.5 |
| Dimensions - Height (mm) | 1384.3 |
| Dimensions - Wheelbase (in) | 57 |
| Dimensions - Wheelbase (mm) | 1447.8 |
| Dimensions - Ground Clearance (in) | 11 |
| Dimensions - Ground Clearance (mm) | 279.4 |
| Dimensions - Length (ft) | 7.5 |
| Dimensions - Length (ft/ft) | 7 |
| Dimensions - Length (ft/in) | 6 |
| Weight | Standard |
| Weight - Dry Weight (lbs) | 860 |
| Weight - Dry Weight (kg) | 390.1 |
| Weight - Towing Capacity (lbs) | 1200 |
| Weight - Towing Capacity (kgs) | 544.3 |
| Weight - GVWR (lbs) | 1334 |
| Weight - GVWR (kgs) | 605.1 |
| Capacities | Standard |
| Capacities - Fuel Capacity (gal) | 4.5 |
| Capacities - Fuel Capacity (l) | 17 |
| Performance | Standard |
| Performance - Engine Displacement to Weight (cc) | 0.63 |
EXTERIOR
| Construction | Standard |
| Construction - Frame | Steel |
| Construction - Body Material | Plastic |
| Floor Boards | Standard |
| Floor Boards - Floor Board Location | Driver and Passenger |
| Hand Grips | Standard |
| Exterior Guards | Standard |
| Exterior Guards - Hand Guards | Yes |
| Exterior Guards - Brush Guard | Yes |
| Exterior Guards - Light Guard | Yes |
| Exterior Covers | Standard |
| Exterior Covers - CV Boot Cover | Yes |
| Exterior Covers - Shock Cover | No |
| Front Fender | Standard |
| Rear Fender | Standard |
| Handlebars | Standard |
| Front Bumper | Standard |
| Front Fender Flairs | Standard |
| Rear Fender Flairs | Standard |
| Skid Plate | Standard |
| Skid Plate - A-Arm Skid Plate (Front) | Yes |
| Skid Plate - A-Arm Skid Plate (Rear) | Yes |
| Skid Plate - Bash Plate (Front) | Yes |
SUSPENSION
| Front Suspension | Standard |
| Front Suspension - Front Suspension Type | Independent Double A-Arm |
| Front Suspension - Front Adjustable Fork Pre-Load | Yes |
| Front Suspension - Front Adjustable Rebound Damping | No |
| Front Suspension - Front Central Suspension Strut | No |
| Front Suspension - Steering Damper | No |
| Front Suspension - Front Stabilizer Bar | No |
| Rear Suspension | Standard |
| Rear Suspension - Rear Suspension Type | Independent Double A-Arm |
| Rear Suspension - Rear Adjustable Shock / Spring Pre-Load | Yes |
| Rear Suspension - Rear Adjustable Rebound Damping | No |
| Rear Suspension - Number Rear Shock Absorbers | 2 |
| Rear Suspension - Rear Stabilizer Bar | Yes |
| Rear Suspension - Air Adjustable | No |
WHEELS & TIRES
| Wheels | Standard |
| Wheels - Wheels Composition | Aluminum |
| Wheels - Tube / Tubeless | Tubed |
| Wheels - Front Tire Diameter (in) | 26 |
| Wheels - Rear Tire Diameter (in) | 26 |
| Wheels - Chromed | No |
| Tires | Standard |
| Tires - Front Tire Width | 9 |
| Tires - Front Wheel Diameter | 12 |
| Tires - Rear Tire Width | 10 |
| Tires - Rear Wheel Diameter | 12 |
| Tires - Front Tire (Full Spec) | AT 26 X 9-12 Radial |
| Tires - Rear Tire (Full Spec) | AT 26 X 10-12 Radial |
BRAKES
| Brakes | Standard |
| Brakes - Front Brake Type | Dual Hydraulic Disc |
| Brakes - Rear Brake Type | Dual Hydraulic Disc |
| Engine Braking | Standard |
SEATS
| Seat | Standard |
| Seat - Seat Type | One-Piece |
| Seat - Adjustable | No |
| Seat - Seat Material | Vinyl |
| Seat - Seat Location | Driver and Passenger |
| Seat - Folding | No |
| Seat Specifications | Standard |
| Seat Specifications - Number Of Seats | 2 |
| Seat Backrest | Standard |
| Seat Backrest - Backrest Type | Detachable |
| Seat Backrest - Backrest Location | Passenger |
| Seat Backrest - Lumbar Adjustment | No |
| Grab Rail or Strap | Standard |
INSTRUMENTATION
| Digital Instrumentation | Standard |
| Clock | Standard |
| Tachometer | Standard |
| Trip Odometer | Standard |
| Speedometer | Standard |
| Hour Meter | Standard |
| Temperature Warning | Standard |
| Temperature Warning - Temperature Warning Type | Light |
| Fuel Level Warning | Standard |
| Fuel Level Warning - Fuel Level Warning Type | Gauge |
STORAGE
| Rear Rack | Standard |
| Rear Rack - Capacity (lbs) | 77 |
| Rear Rack - Capacity (kgs) | 34.9 |
| Front Rack | Standard |
| Front Rack - Capacity (lbs) | 44 |
| Front Rack - Capacity (kgs) | 20 |
LIGHTS
| Headlight(s) | Standard |
| Headlight(s) - Type | Halogen |
PAINT & FINISH
| Paint | Standard |
| Paint - Metallic | No |
DRIVE LINE
| Driveline | Standard |
| Driveline - Driveline Brand | On-Demand™ |
| Driveline - Driveline Type | Selectable 4X2 / 4X4 |
| Driveline - Number Of Driveline Modes | 2 |
| Driveline - Rear Unlocking Differential | No |
| Driveline - Rear Solid Axle | No |
| Differential Lock | Standard |
| Differential Lock - Differential Lock Location | Front |
STEERING
| Steering | Standard |
| Steering - Steering Type | Power |
| Steering - Steering Control | Handlebar |
TOWING & HAULING
| Rear Hitch | Standard |
| Winch | Standard |
| Winch - Weight (lbs) | 2500 |
| Winch - Weight (kgs) | 1134 |
| Roller Fairlead | Standard |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
