2011 HARLEY Softail Deluxe

Compact package. Big impact.

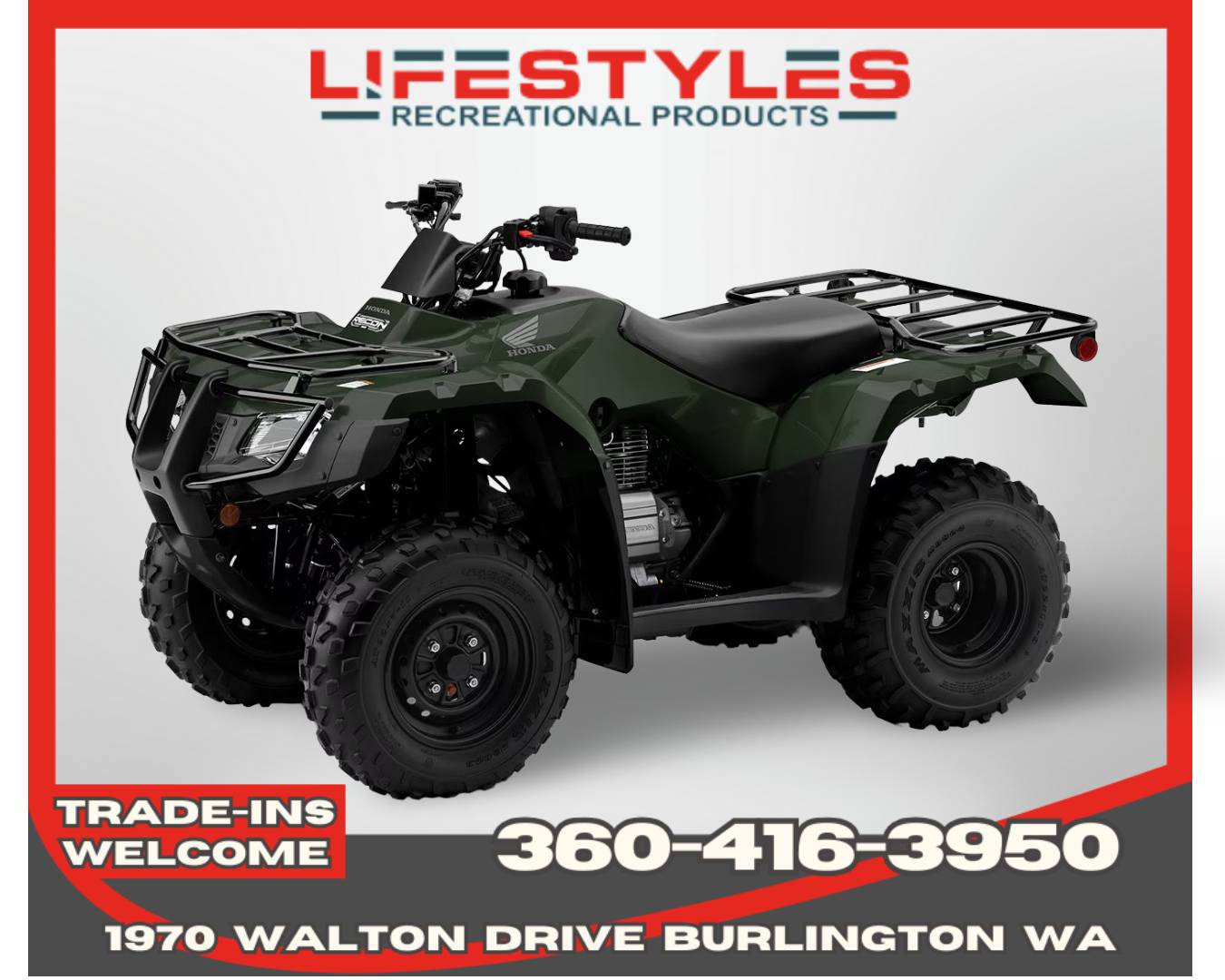

Jumpstart your adventure with the FourTrax Recon. Featuring a responsive 250-class engine and agile handling, this lightweight ATV easily outperforms bigger, pricier competitors with its well-known Honda durability and ease of maintenance. Whether you choose the standard foot-shift or our Electric Shift Program (ESP) ES model, every journey and every job becomes easier and more enjoyable.

Semi-dry-sump engine design

The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.

Longitudinal engine layout

By orienting the engine front to back in the chassis, we route the power flow straight to the wheels without any unnecessary right-angle detours. This reduces powertrain friction and puts more grunt to the ground.

Electric Shift Program (ESP)

Found exclusively on the ES model, our ESP system features a semi-auto clutch with easy, push-button upshifting and downshifting. No foot-shift lever is required, making it ideal for riding in mud or with snow-covered boots.

Shaft drive

The shaft drive is clean, low-maintenance, and efficient. Perfect for high-mileage riders, it eliminates the need for lubrication or adjustment at home or on the trail.

Comfortable seat

A thick foam seat with a rugged cover is designed for all-day comfort and support.

Unique floorboard design

The floorboards are designed to prevent mud and debris while providing a good grip on the rider's feet.

Reverse mechanism and parking brake

Mounted on the left bar, alongside the parking brake, the reverse lever is easily accessible without requiring you to take your hands off the handlebars.

Steel cargo racks

Front and rear cargo racks feature rugged steel construction and can carry a maximum of 33 pounds (front) and 66 pounds (rear).

Effortless electric starting

Starting the engine is easy, even in cold weather, with a key turn and a button push. A backup recoil starting system is included for added confidence.

LED taillight and brakelight

The taillight and brakelight are both LED, designed to last long and offer strong, dependable lighting.

Features

Electric Shift Program

229cc air-cooled single-cylinder engine

Semi-dry-sump engine design

Longitudinal engine layout

Integrated floorboard design with steel cleats

Engine

Engine Type - 229cc air-cooled OHV longitudinally mounted single-cylinder four-stroke

Bore and Stroke - 68.5mm x 62.2mm

Compression Ratio - 9.2:1

Induction - OHV; two valves per cylinder

Induction - 22.0mm piston-valve carburetor

Starter - Electric with optional auxiliary recoil

Drivetrain

Transmission - Five-speed ATV-style semi-automatic with reverse

Driveline - Direct rear driveshaft

Chassis Suspension Brakes

Front Suspension - Independent double-wishbone; 5.1-inch travel

Rear Suspension - Swingarm with single shock; 4.9-inch travel

Front Brakes - Dual sealed 130.0mm drums

Rear Brake - Sealed 140.0mm drum

Front Tires - 22 x 7-11

Rear Tires - 22 x 10-9

Dimensions

Length - 75.0 inches

Width - 40.7 inches

Height - 42.1 inches

Wheelbase - 44.5 inches

Seat Height - 31.2 inches

Ground Clearance - 6.0 inches

Turning Radius - 8.5 feet

Curb Weight - 443 pounds (Includes all standard equipment, required fluids and a full tank of fuel)

Fuel Capacity - 2.4 gallons

Front Rack Capacity - 33.0 pounds

Rear Rack Capacity - 66.0 pounds

Towing Capacity - 500.0 pounds

Other

Available Colors - Hero Red, Black Forest Green

Model ID - TRX250TE

Emissions - Meets current EPA off-road emissions standards. Not available in California or for California use.

Important Safety Information - Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Factory Warranty Information

Duration - Transferable, one year included, limited warranty

Optional Extended - Extended coverage available with a HondaCare® Protection Plan
