Specifications

PRICING

Price	Standard
Price - Warranty (Months)	6
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Brand Name	Liberty™
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Cooling	Liquid
Engine - Valves	4
Engine - Valves Per Cylinder	4
Engine - Valve Configuration	OHV
Engine - Bore (mm)	80
Engine - Bore (in)	3.15
Engine - Stroke (mm)	68
Engine - Stroke (in)	2.68
Engine - Displacement (cc)	683
Engine - Displacement (ci)	41.7
Engine - Compression Ratio	9.78:1
Engine - Starter	Electric
Engine - Fuel Requirements	Regular
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Carburetion Brand	Mikuni
Carburetion - Fuel Injector	No
Carburetion - Carburetor	Yes
Carburetion - Number Of Carburetors	1
Carburetion - Carburetor Size (mm)	34
Carburetion - Carburetion Type	Carburetor

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Continuously Variable (CVT)
Transmission - Primary Drive (Rear Wheel)	Shaft
Transmission - Reverse	Yes
Transmission - Transmission Brand	Polaris Variable Transmission (PVT)
Transmission - Hi / Low Range	Yes

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	81
Dimensions - Length (mm)	2057
Dimensions - Width (in)	46
Dimensions - Width (mm)	1168
Dimensions - Height (in)	47
Dimensions - Height (mm)	1194
Dimensions - Wheelbase (in)	50.8
Dimensions - Wheelbase (mm)	1289
Dimensions - Turning Radius (ft)	6.3
Dimensions - Ground Clearance (in)	11.3
Dimensions - Ground Clearance (mm)	286
Dimensions - Length (ft)	6.75
Dimensions - Length (ft/ft)	6
Dimensions - Length (ft/in)	9
Weight	Standard
Weight - Dry Weight (lbs)	765
Weight - Dry Weight (kg)	347
Weight - Towing Capacity (lbs)	1500
Weight - Towing Capacity (kgs)	681
Weight - GVWR (lbs)	1240
Weight - GVWR (kgs)	563
Capacities	Standard
Capacities - Fuel Capacity (gal)	4.8
Capacities - Fuel Capacity (l)	18
Performance	Standard
Performance - Engine Displacement to Weight (cc)	0.89

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Floor Boards	Standard
Floor Boards - Floor Board Location	Driver
Hand Grips	Standard
Exterior Guards	Standard
Exterior Guards - Light Guard	No
Exterior Guards - Radiator Guard	No
Front Fender	Standard
Rear Fender	Standard
Handlebars	Standard
Front Bumper	Standard
Rear Bumper	Standard
Front Fender Flairs	Standard
Rear Fender Flairs	Standard
Skid Plate	Standard
Skid Plate - Bash Plate (Front)	Yes
Skid Plate - Full Length Skid Plate	Yes

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	McPherson Strut
Front Suspension - Front Travel (in)	8.2
Front Suspension - Front Travel (mm)	208
Front Suspension - Front Adjustable Fork Pre-Load	No
Front Suspension - Front Adjustable Rebound Damping	No
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Steering Damper	No
Front Suspension - Front Stabilizer Bar	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Independent
Rear Suspension - Rear Travel (in)	9.5
Rear Suspension - Rear Travel (mm)	241
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	No
Rear Suspension - Rear Adjustable Rebound Damping	No
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Rear Stabilizer Bar	Yes
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Steel
Wheels - Front Tire Diameter (in)	26
Wheels - Rear Tire Diameter (in)	26
Wheels - Chromed	No
Tires	Standard
Tires - Tire Brand	Polaris PXT
Tires - Front Tire Width	8
Tires - Front Wheel Diameter	12
Tires - Rear Tire Width	11
Tires - Rear Wheel Diameter	12
Tires - Front Tire (Full Spec)	Polaris PXT 26 X 8-12
Tires - Rear Tire (Full Spec)	Polaris PXT 26 X 11-12

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Hydraulic Disc
Brakes - Rear Brake Type	Hydraulic Disc
Engine Braking	Standard

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Vinyl
Seat - Seat Location	Driver
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	34
Seat Specifications - Seat Height (mm)	864
Seat Specifications - Number Of Seats	1

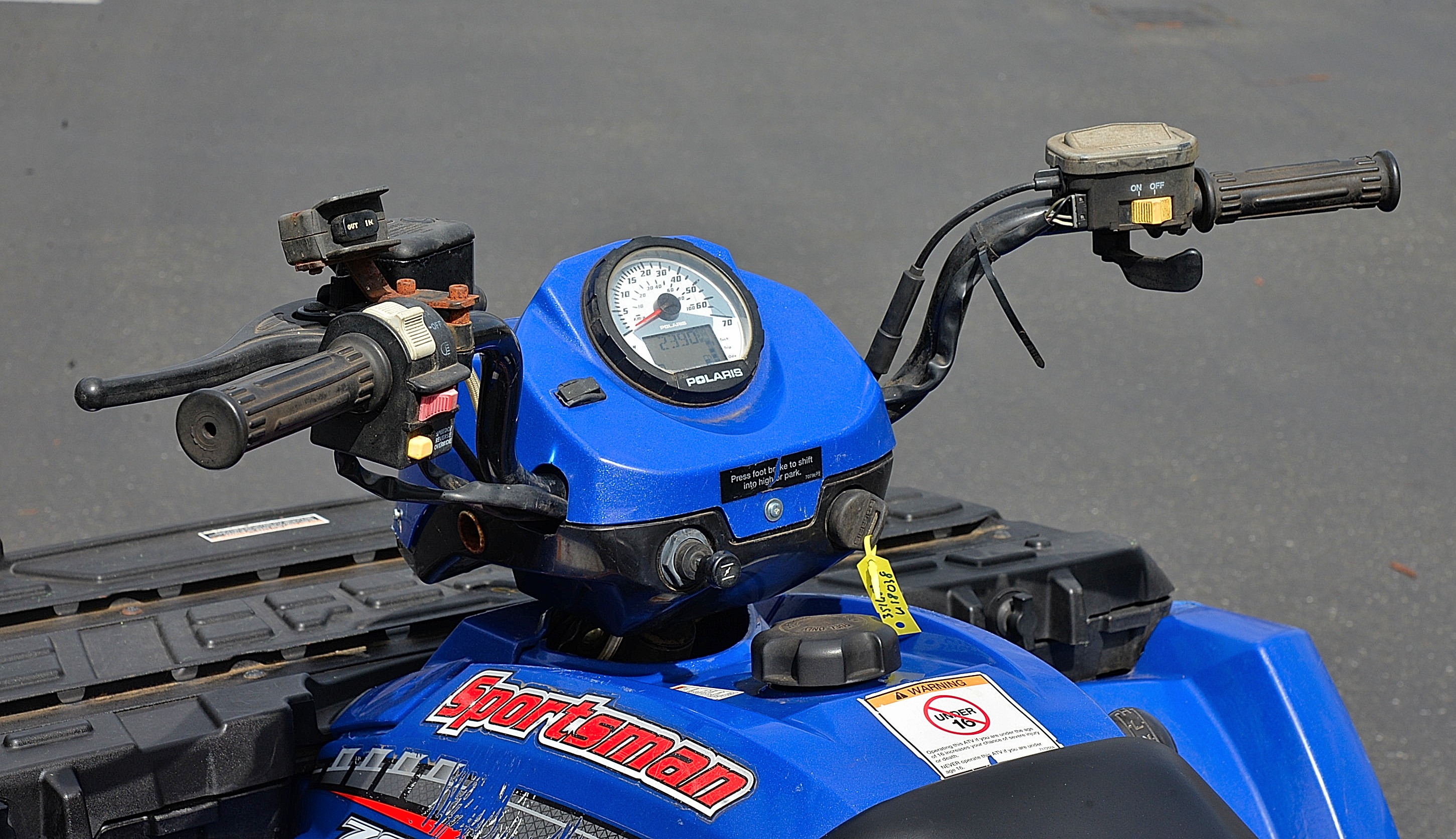

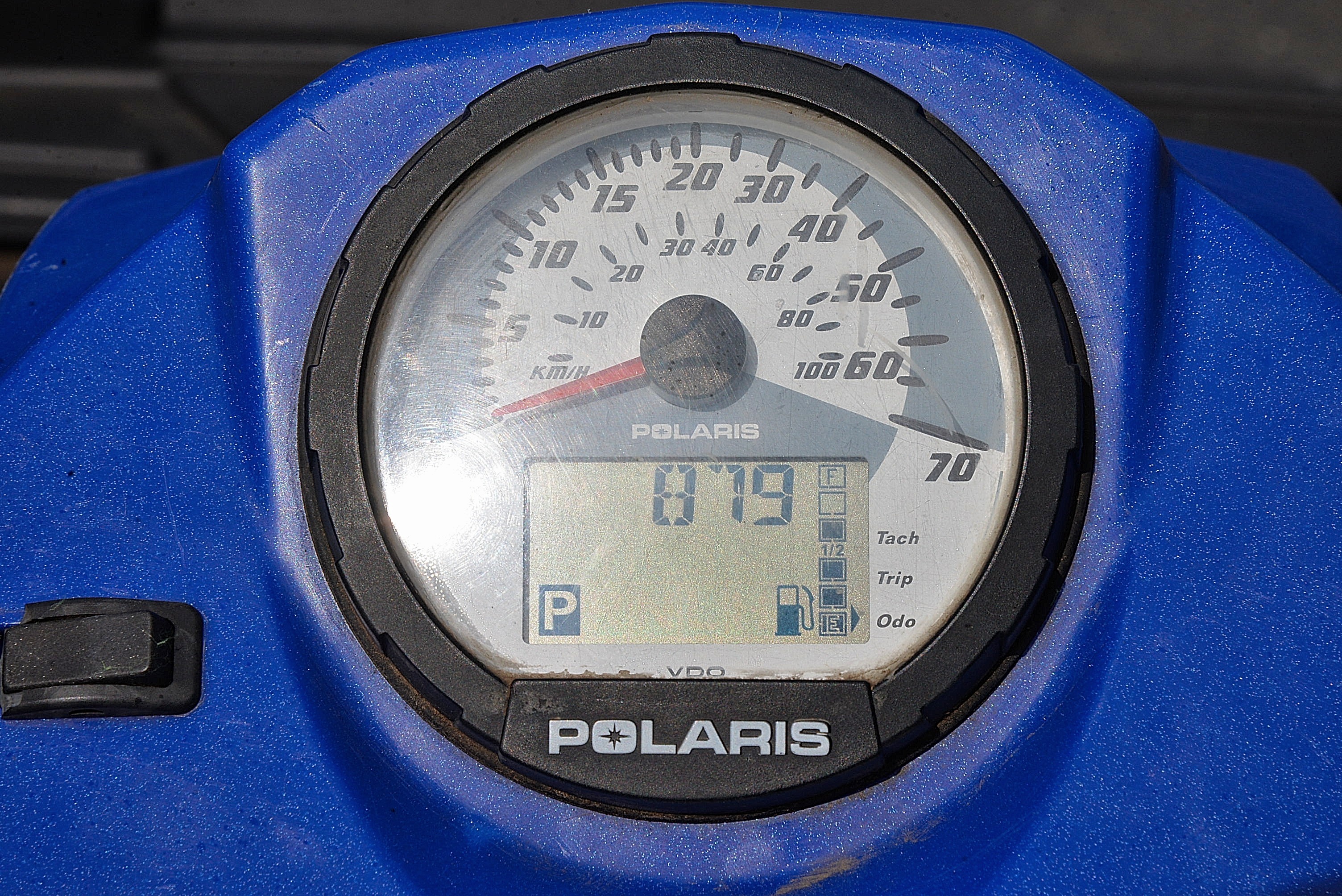

INSTRUMENTATION

Digital Instrumentation	Standard
Tachometer	Standard
Trip Odometer	Standard
Speedometer	Standard
Hour Meter	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge

STORAGE

Rear Rack	Standard
Rear Rack - Capacity (lbs)	200
Rear Rack - Capacity (kgs)	90.9

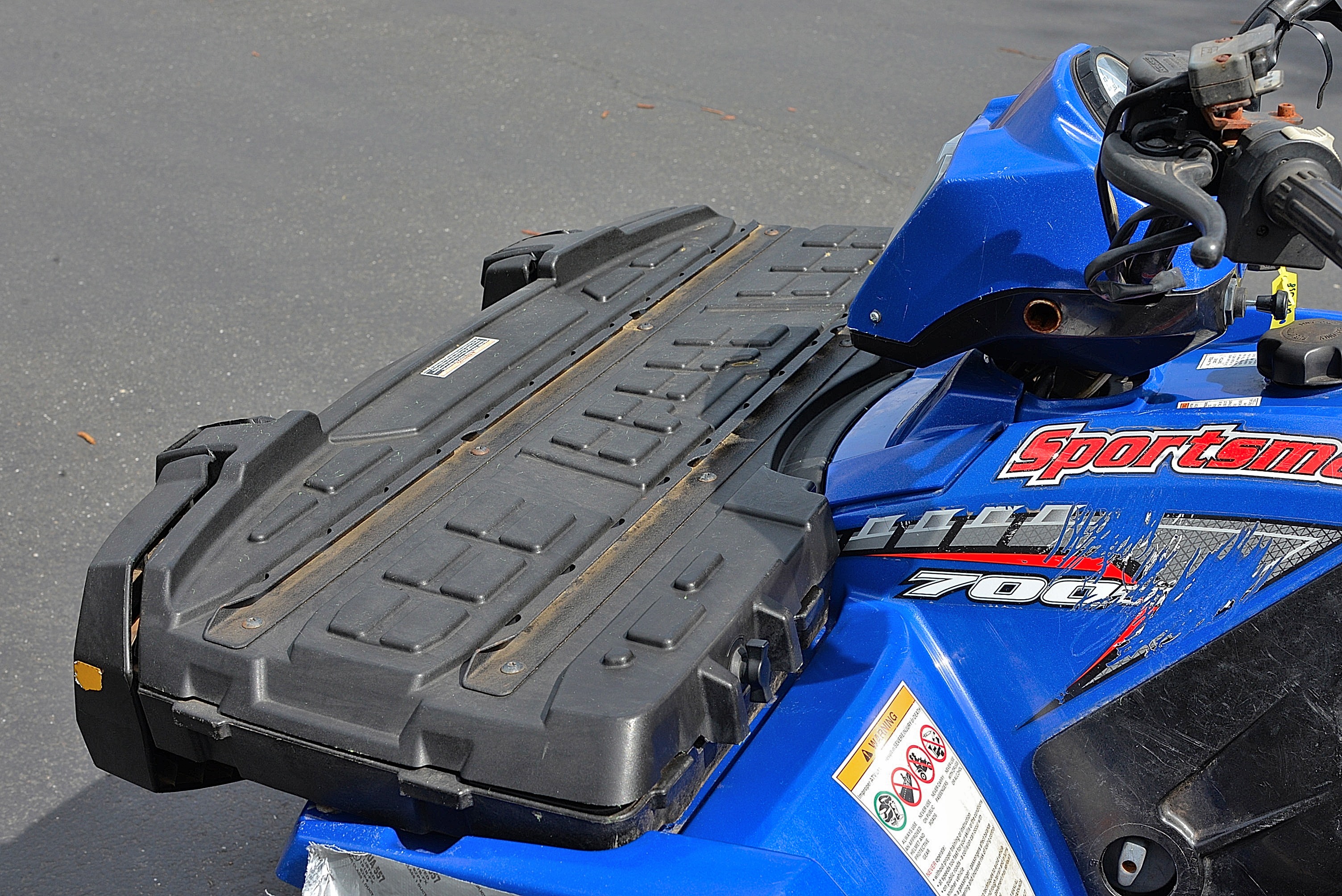

Front Rack	Standard
Front Rack - Capacity (lbs)	100
Front Rack - Capacity (kgs)	45.4
Front Storage Well	Standard
Rear Storage Well	Standard

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

CONVENIENCE

Power Outlet

Standard

PAINT & FINISH

Paint	Standard
Paint - Metallic	No

DRIVE LINE

Driveline	Standard
Driveline - Driveline Brand	On-Demand™
Driveline - Driveline Type	Selectable 4X2 / 4X4
Driveline - Number Of Driveline Modes	2
Driveline - Rear Unlocking Differential	No
Driveline - Rear Solid Axle	No
Limited Slip Differential	Standard
Limited Slip Differential - Limited Slip Differential Location	Rear
Differential Lock	Standard
Differential Lock - Differential Lock Location	Rear

STEERING

Steering	Standard
Steering - Steering Type	Manual
Steering - Steering Control	Handlebar

TOWING & HAULING

Rear Hitch	Standard
Rear Hitch - Size (in)	1.25
Rear Hitch - Size (cm)	3.2
Rear Hitch - Tongue Weight (lbs)	150
Rear Hitch - Tongue Weight (kgs)	68
Rear Hitch - Rear Hitch Type	Receiver

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
