MSRP: $8499
$1300.00 Savings
Total Price: $7199
* Plus Applicable Charges
* Sale Price does not include Freight, Set-up, Tax, License and Doc fee.Highlights
Rotax® V-Twin engine
Continuously Variable Transmission (CVT) with engine braking
Tri-Mode Dynamic Power Steering (DPS™)

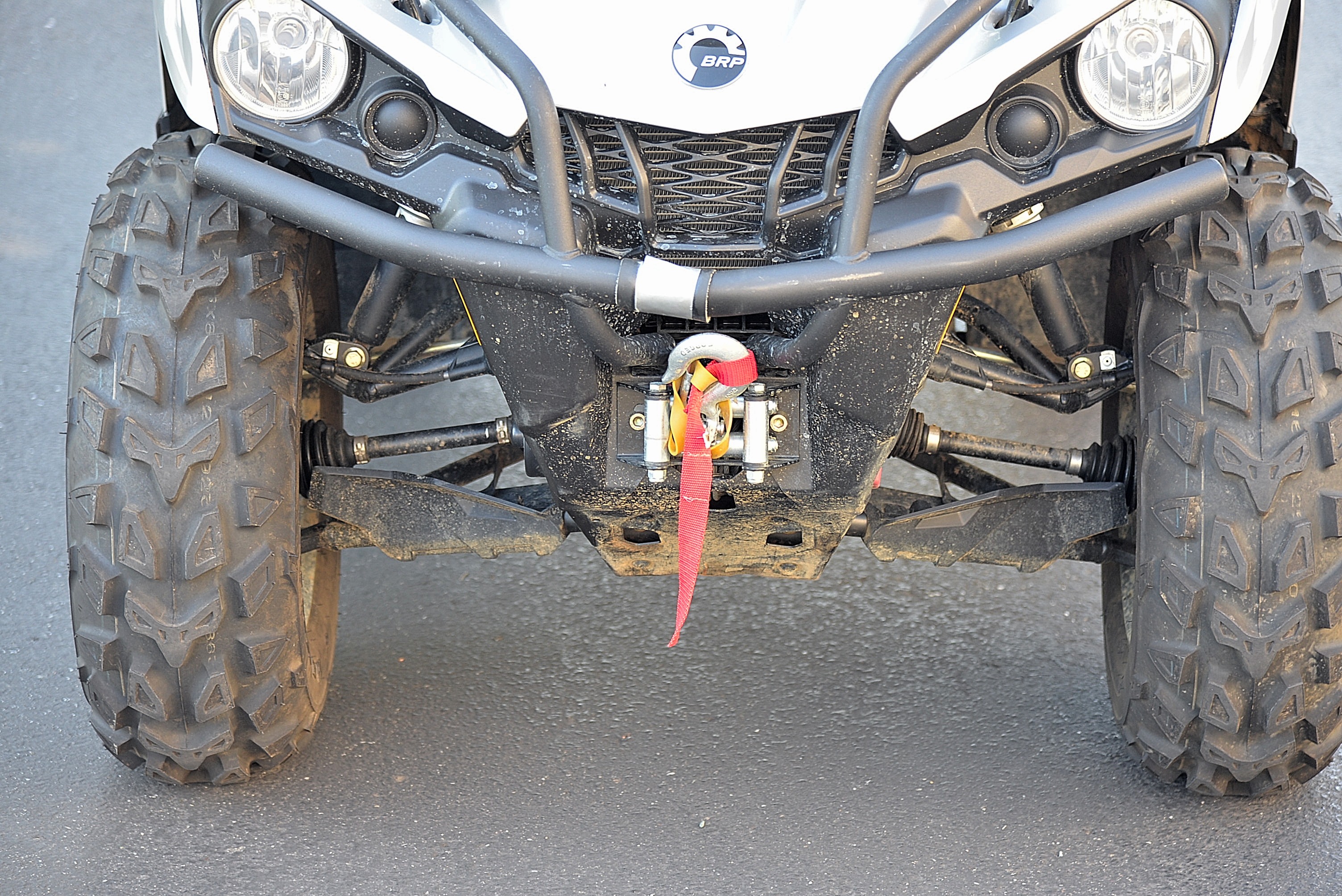

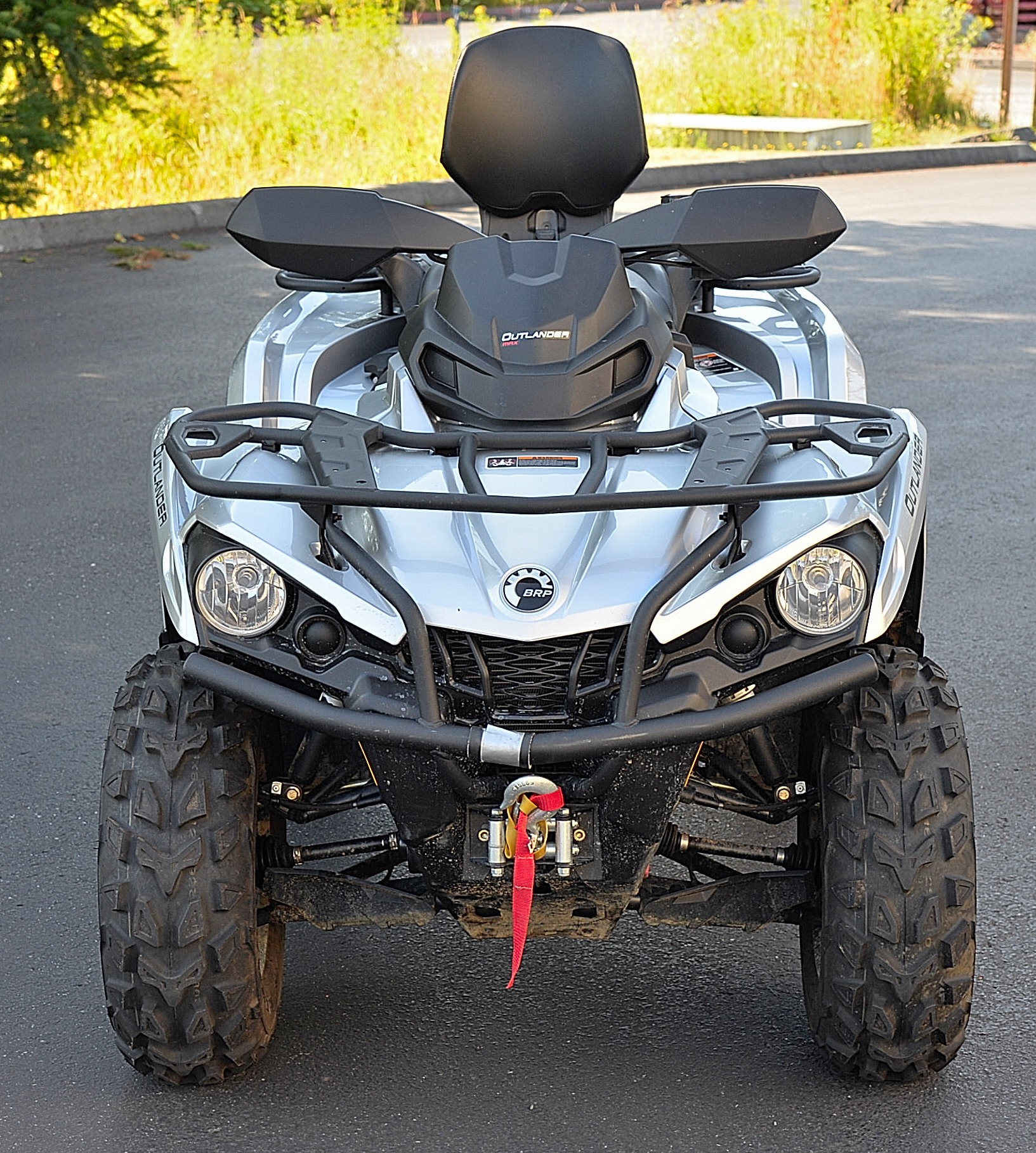

3,000-lb (1,361 kg) WARN® winch with roller fairlead
Heavy-duty front and rear bumpers
Painted plastics for premium look
12-in. cast-aluminum wheels
25-in. Maxxis® M923J radial tires

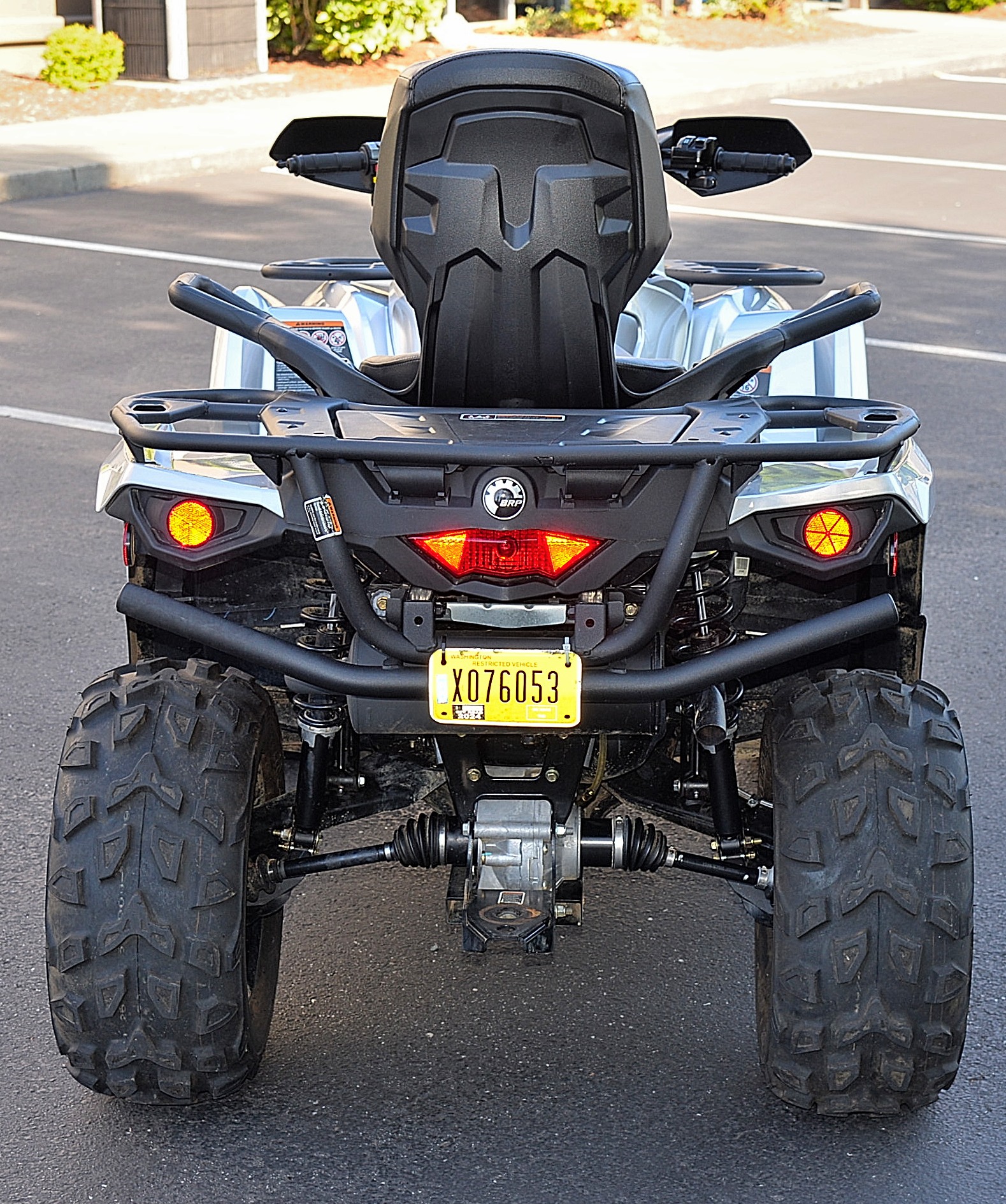

Torsional Trailing arm Independent (TTI) rear suspension

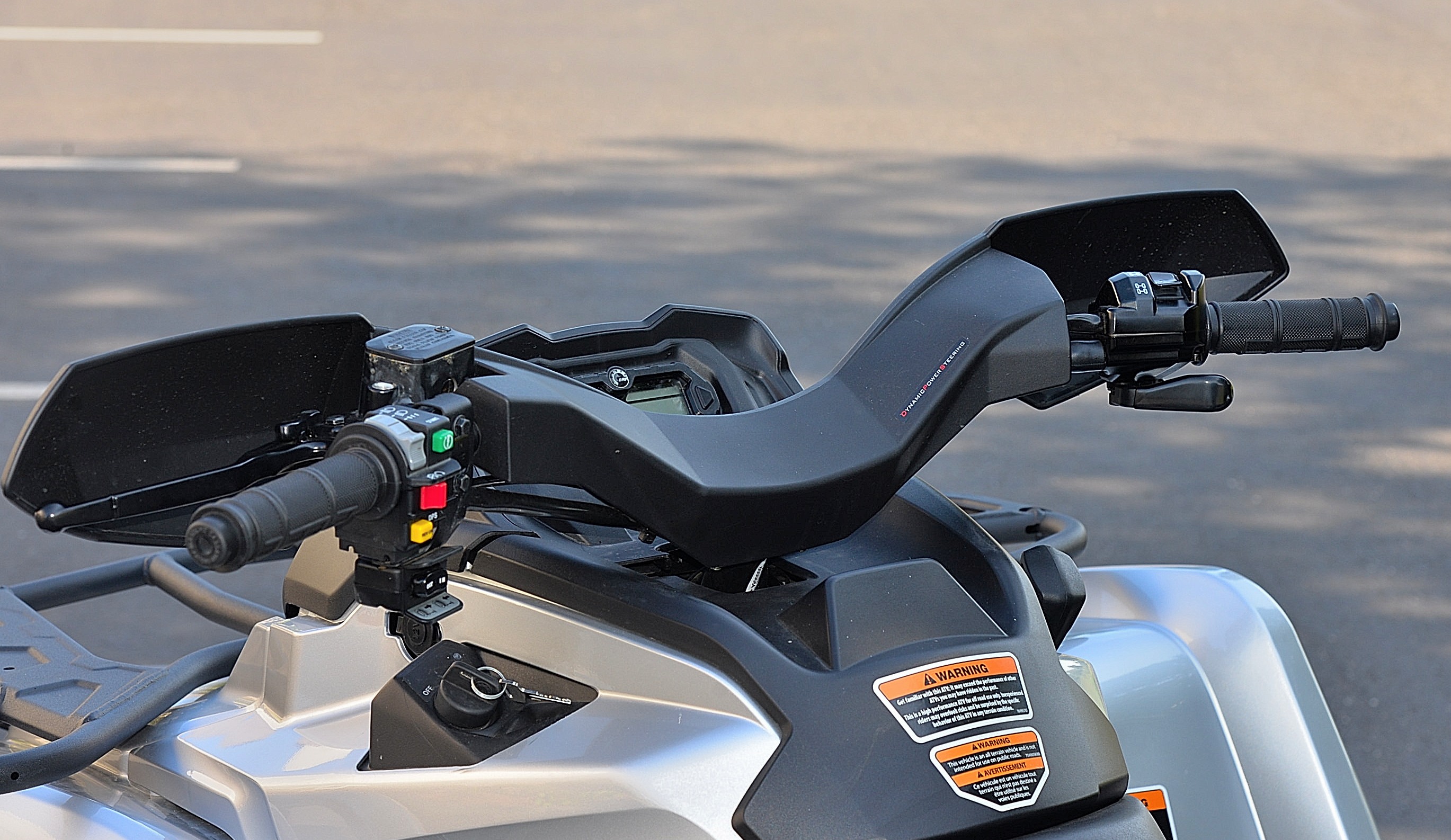

Wind deflectors
Steel racks with LinQ quick-attach accessory system and a combined 360 pounds (163.3 kg) capacity
2.9-gal (10.9 L) water-resistant rear compartment
Dynamic passenger comfort ergonomics
Multiposition passenger handgrips
Raised floorboards
Engines
Type: 48 hp, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System: Electronic Fuel Injection (EFI)
Transmission: CVT, P / R / N / H / L, standard engine braking
Drive Train: Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential

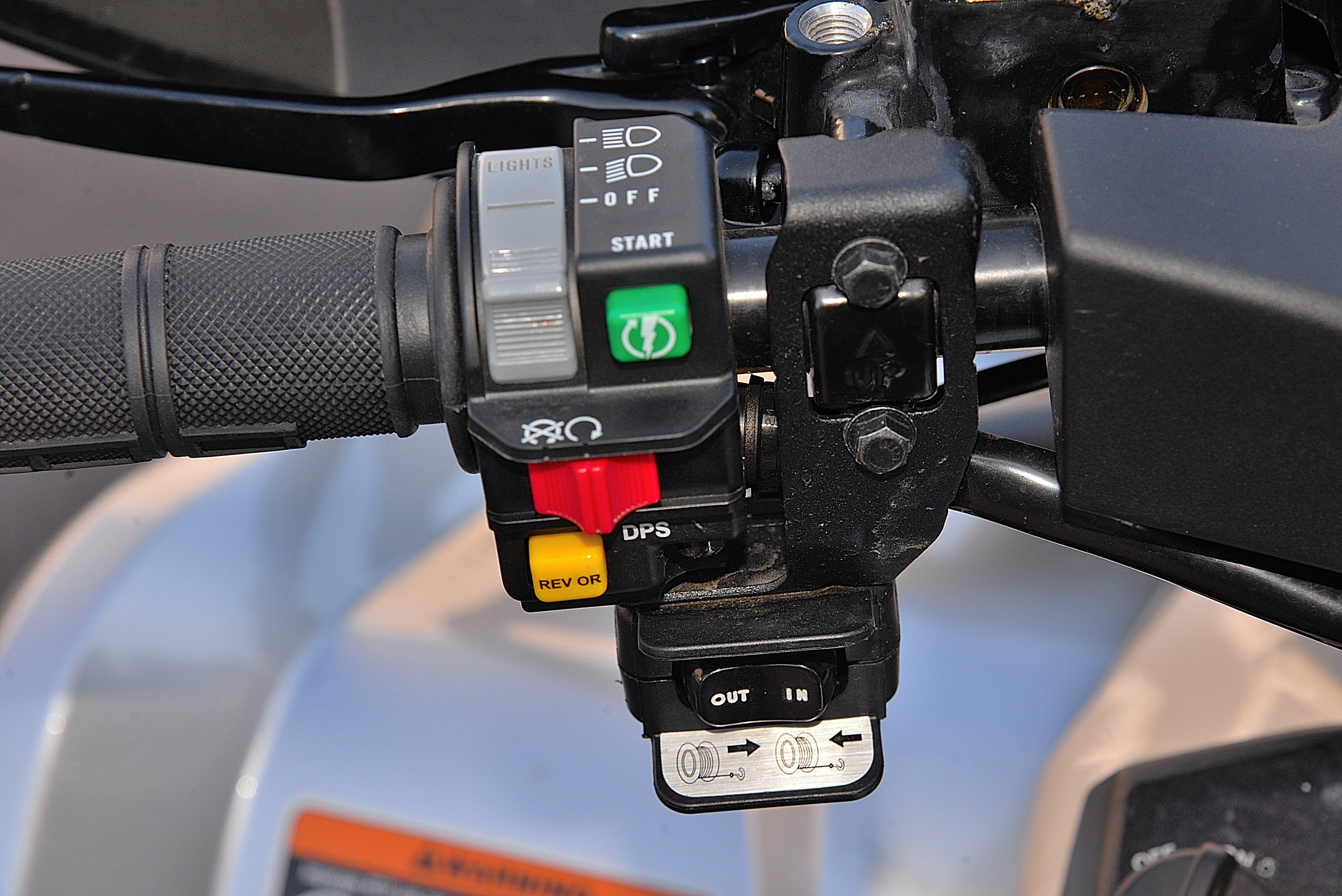

Power Steering: Tri-Mode Dynamic Power Steering (DPS)
Suspensions
Front Suspension: Double A-arm; 9 in. (22.9 cm) travel
Front Shocks: Oil
Rear Suspension: Torsional Trailing arm Independent (TTI) 8.8 in. (22 cm) travel
Rear Shocks: Oil
Brakes
Front: Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear: Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Tires / Wheels
Front Tires: Maxxis M923J 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires: Maxxis M923J 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels: 12 in. cast aluminum
Dimensions / Capacities
L x W x H: 91 x 46 x 52.5 in. (231 x 116.8 x 133 cm)
Wheelbase: 59 in. (129.5 cm)
Ground Clearance: 10.5 in. (26.7 cm)
Seat Height: 33.8 in. (85.8 cm)
Engine / Dry Weight*: 741 lb (319 kg)
Rack Capacity: Front: Front: 120 lb (54.4 kg); Rear: 240 lb (109 kg)
Storage Capacity: Rear: 2.9 gal (10.9 L)
Towing Capacity: 1,300 lb (590 kg)
Fuel Capacity: 5.4 gal (20.5 L)
Features

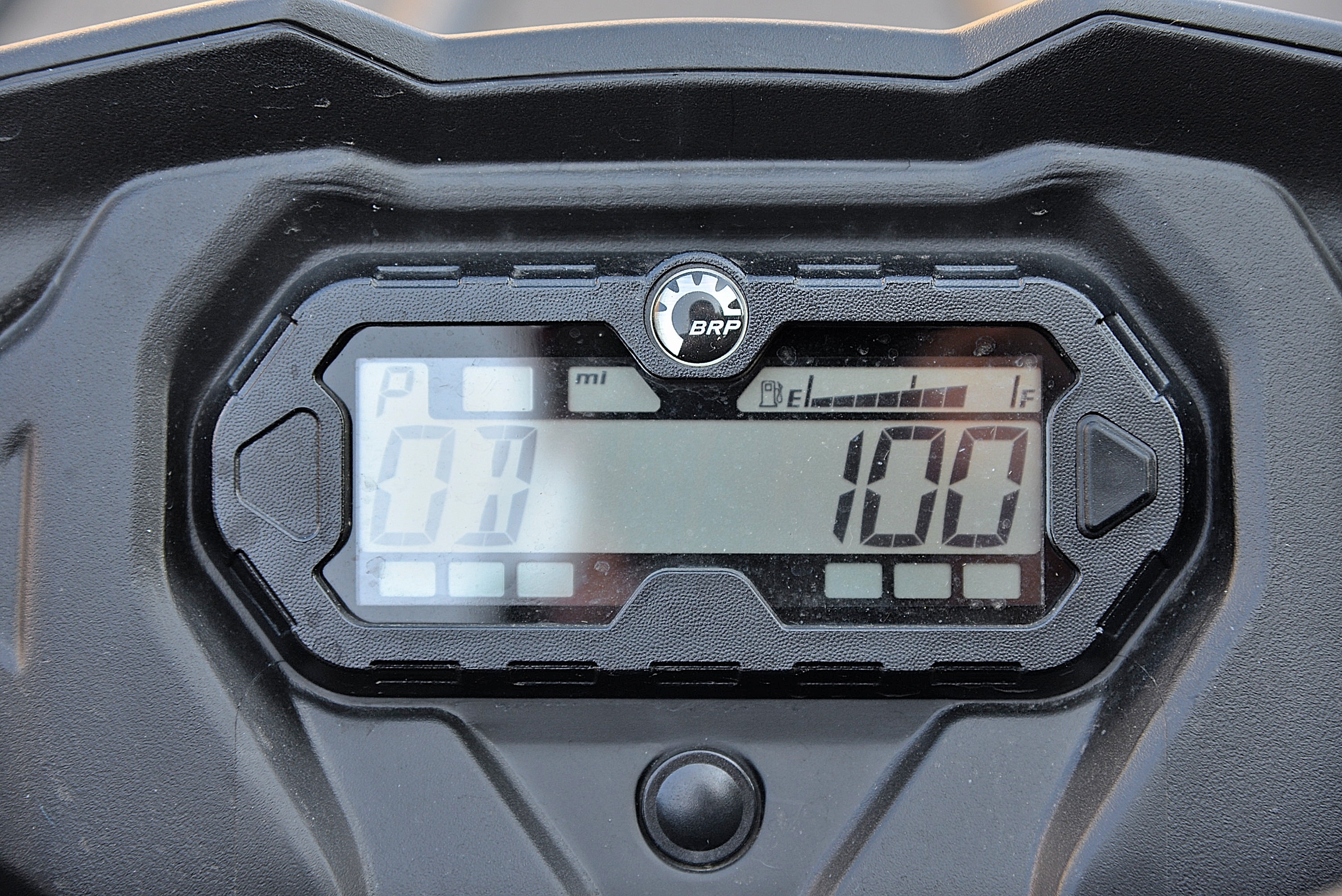

Gauge: Multifunction Digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Winch: 3,000-lb (1,361 kg) WARN winch with roller fairlead
Instrumentation: Lighter type DC outlet in console, standard connector in the back (15-A)
Lighting: 70 W from dual 35-W front light / brake light
Seat Convertible Rack System (CRS)
Protection: Heavy-duty front & rear bumpers Handlebar wind deflectors
PRICING
| Price | Standard |
| Price - Warranty (Months) | 6 |
| Price - Warranty (Condition) | Limited |
ENGINE
| Engine | Standard |
| Engine - Engine Brand Name | Rotax® |
| Engine - Engine Type | V Twin |
| Engine - Cylinders | 2 |
| Engine - Engine Stroke | 4-Stroke |
| Engine - Horsepower (bhp) | 48 |
| Engine - Horsepower (kW) | 35.8 |
| Engine - Cooling | Liquid |
| Engine - Valves | 8 |
| Engine - Valves Per Cylinder | 4 |
| Engine - Valve Configuration | SOHC |
| Engine - Displacement (cc) | 570 |
| Engine - Displacement (ci) | 34.8 |
| Engine - Starter | Electric |
| Engine - Fuel Requirements | Regular |
| Engine - Fuel Type | Gas |
| Carburetion | Standard |
| Carburetion - Fuel Injector | Yes |
| Carburetion - Carburetor | No |
| Carburetion - Carburetion Type | Fuel Injected |
| Parental Controls - Speed Governor | No |
TRANSMISSION
| Transmission | Standard |
| Transmission - Transmission Type | Continuously Variable (CVT) |
| Transmission - Primary Drive (Rear Wheel) | Shaft |
| Transmission - Primary Drive (Engine / Transmission) | Belt |
| Transmission - Reverse | Yes |
| Transmission - Hi / Low Range | Yes |
| Transmission - Primary Drive (Front Wheel) | Shaft |
TECHNICAL SPECIFICATIONS
| Dimensions | Standard |
| Dimensions - Length (in) | 91 |
| Dimensions - Length (mm) | 2311.4 |
| Dimensions - Width (in) | 46 |
| Dimensions - Width (mm) | 1168 |
| Dimensions - Height (in) | 52.5 |
| Dimensions - Height (mm) | 1333.5 |
| Dimensions - Wheelbase (in) | 59 |
| Dimensions - Wheelbase (mm) | 1499 |
| Dimensions - Ground Clearance (in) | 10.5 |
| Dimensions - Ground Clearance (mm) | 267 |
| Dimensions - Length (ft) | 7.58 |
| Dimensions - Length (ft/ft) | 7 |
| Dimensions - Length (ft/in) | 7 |
| Weight | Standard |
| Weight - Dry Weight (lbs) | 741 |
| Weight - Dry Weight (kg) | 336 |
| Weight - Towing Capacity (lbs) | 1300 |
| Weight - Towing Capacity (kgs) | 590 |
| Capacities | Standard |
| Capacities - Fuel Capacity (gal) | 5.4 |
| Capacities - Fuel Capacity (l) | 20.5 |
| Capacities - Storage Capacity (cuft) | 0.5 |
| Capacities - Storage Capacity (gal) | 2.9 |
| Capacities - Storage Capacity (l) | 10.9 |
| Performance | Standard |
| Performance - Engine Displacement to Weight (cc) | 0.77 |
EXTERIOR
| Construction | Standard |
| Construction - Frame | Steel |
| Construction - Body Material | Plastic |
| Floor Boards | Standard |
| Floor Boards - Floor Board Location | Driver and Passenger |
| Hand Grips | Standard |
| Foot Pegs | Standard |
| Foot Pegs - Foot Peg Location | Driver and Passenger |
| Foot Pegs - Adjustable | No |
| Exterior Guards | Standard |
| Exterior Guards - Hand Guards | Yes |
| Exterior Guards - Radiator Guard | No |
| Exterior Covers | Standard |
| Exterior Covers - CV Boot Cover | Yes |
| Exterior Covers - Shock Cover | No |
| Front Fender | Standard |
| Rear Fender | Standard |
| Handlebars | Standard |
| Front Bumper | Standard |
| Rear Bumper | Standard |
| Skid Plate | Standard |
| Skid Plate - A-Arm Skid Plate (Front) | Yes |
| Skid Plate - A-Arm Skid Plate (Rear) | No |
| Skid Plate - Bash Plate (Front) | Yes |
| Skid Plate - Bash Plate (Rear) | No |
| Skid Plate - Swing Arm Skid Plate | No |
| Skid Plate - Full Length Skid Plate | Yes |
SUSPENSION
| Front Suspension | Standard |
| Front Suspension - Front Suspension Type | Double A-Arm |
| Front Suspension - Front Travel (in) | 9 |
| Front Suspension - Front Travel (mm) | 229 |
| Front Suspension - Front Adjustable Fork Pre-Load | No |
| Front Suspension - Front Adjustable Rebound Damping | No |
| Front Suspension - Front Central Suspension Strut | No |
| Front Suspension - Steering Damper | No |
| Rear Suspension | Standard |
| Rear Suspension - Rear Suspension Type | Independent |
| Rear Suspension - Rear Travel (in) | 8.8 |
| Rear Suspension - Rear Travel (mm) | 224 |
| Rear Suspension - Rear Adjustable Shock / Spring Pre-Load | No |
| Rear Suspension - Rear Adjustable Rebound Damping | No |
| Rear Suspension - Number Rear Shock Absorbers | 2 |
| Rear Suspension - Rear Suspension Brand Name | Trailing Torsional Independent (TTI) |
| Rear Suspension - Rear Suspension Material | Steel |
| Rear Suspension - Air Adjustable | No |
WHEELS & TIRES
| Wheels | Standard |
| Wheels - Wheels Composition | Aluminum |
| Wheels - Front Tire Diameter (in) | 26 |
| Wheels - Rear Tire Diameter (in) | 26 |
| Wheels - Chromed | No |
| Tires | Standard |
| Tires - Tire Brand | Maxxis® |
| Tires - Front Tire Width | 8 |
| Tires - Front Wheel Diameter | 12 |
| Tires - Rear Tire Width | 10 |
| Tires - Rear Wheel Diameter | 12 |
| Tires - Front Tire (Full Spec) | Maxxis 25 X 8-12 |
| Tires - Rear Tire (Full Spec) | Maxxis 25 X 10-12 |
BRAKES
| Brakes | Standard |
| Brakes - Front Brake Type | Dual Hydraulic Disc |
| Brakes - Front Brake Diameter (in) | 8.4 |
| Brakes - Front Brake Diameter (mm) | 214 |
| Brakes - Rear Brake Type | Hydraulic Disc |
| Brakes - Rear Brake Diameter (in) | 8.4 |
| Brakes - Rear Brake Diameter (mm) | 214 |
| Engine Braking | Standard |

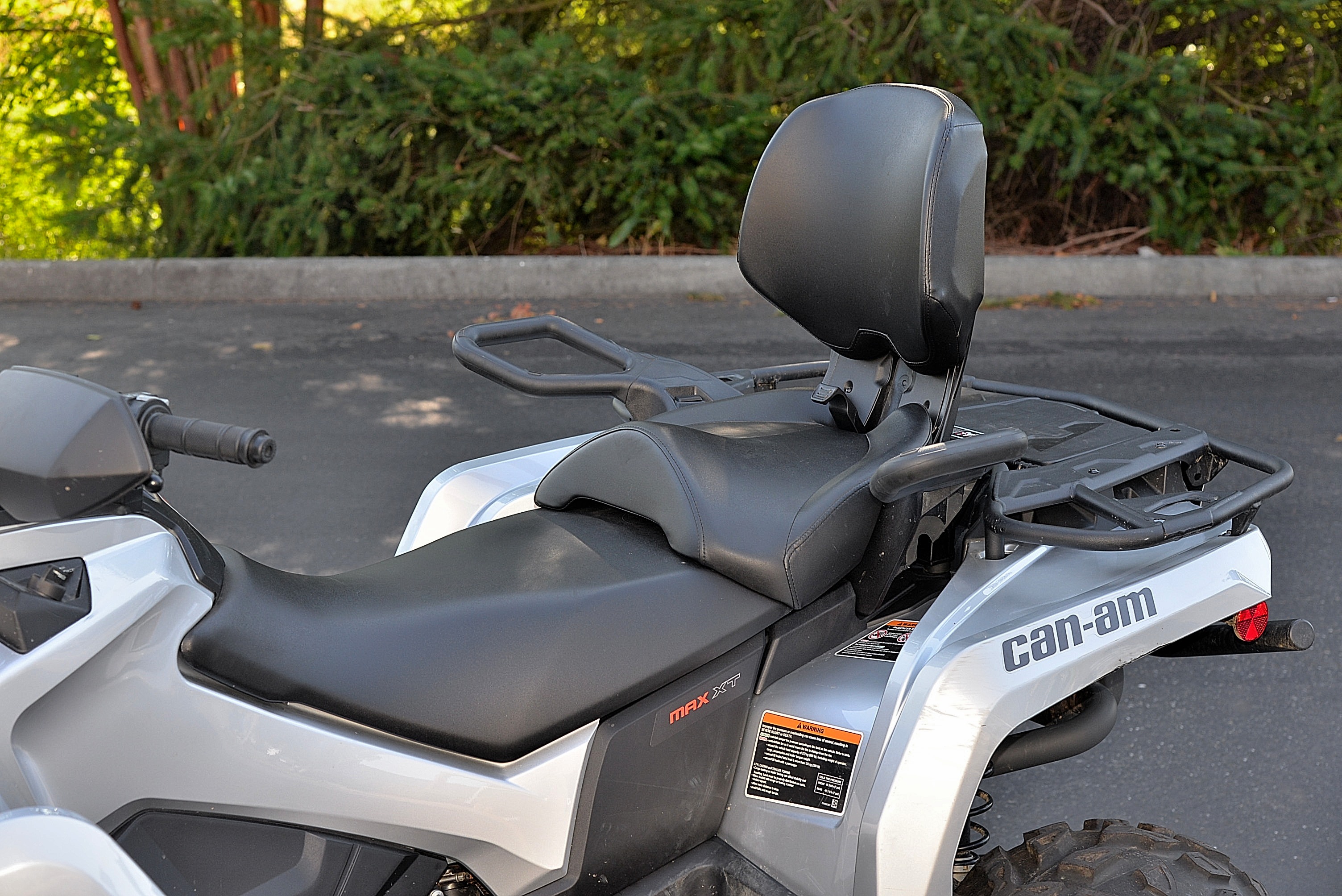

SEATS
| Seat | Standard |
| Seat - Seat Type | Two-Piece |
| Seat - Adjustable | No |
| Seat - Seat Material | Vinyl |
| Seat - Seat Location | Driver and Passenger |
| Seat - Folding | No |
| Seat Specifications | Standard |
| Seat Specifications - Seat Height (in) | 33.8 |
| Seat Specifications - Seat Height (mm) | 859 |
| Seat Specifications - Number Of Seats | 2 |
| Seat Backrest | Standard |
| Seat Backrest - Backrest Logo Plate | No |
| Seat Backrest - Backrest Type | Detachable |
| Seat Backrest - Backrest Location | Passenger |
| Seat Backrest - Lumbar Adjustment | No |
| Grab Rail or Strap | Standard |
INSTRUMENTATION
| Digital Instrumentation | Standard |
| Clock | Standard |
| Tachometer | Standard |
| Trip Odometer | Standard |
| Speedometer | Standard |
| Hour Meter | Standard |
| Temperature Warning | Standard |
| Temperature Warning - Temperature Warning Type | Light |
| Fuel Level Warning | Standard |
| Fuel Level Warning - Fuel Level Warning Type | Gauge |
STORAGE
| Rear Rack | Standard |
| Rear Rack - Capacity (lbs) | 240 |
| Rear Rack - Capacity (kgs) | 109 |
| Front Rack | Standard |
| Front Rack - Capacity (lbs) | 120 |
| Front Rack - Capacity (kgs) | 54.4 |
| Rear Storage Well | Standard |
LIGHTS
| Halogen Headlight(s) | Standard |
| Headlight(s) | Standard |
| Headlight(s) - Type | Halogen |
CONVENIENCE
| Power Outlet | Standard |
PAINT & FINISH
| Paint | Standard |
| Paint - Metallic | No |
AUDIO & COMMUNICATION
| Radio - Satellite | No |
DRIVE LINE
| Driveline | Standard |
| Driveline - Driveline Type | Selectable 4X2 / 4X4 |
| Driveline - Number Of Driveline Modes | 2 |
| Driveline - Rear Unlocking Differential | No |
| Driveline - Rear Solid Axle | No |
| Limited Slip Differential | Standard |
| Limited Slip Differential - Limited Slip Differential Location | Front |
| Differential Lock | Standard |
| Differential Lock - Differential Lock Location | Front |
| Differential Lock - Differential Lock Brand | ViscoLok |
STEERING
| Steering | Standard |
| Steering - Steering Brand | Dynamic Power Steering (DPS™) |
| Steering - Steering Type | Power |
| Steering - Steering Control | Handlebar |
TOWING & HAULING
| Rear Hitch | Standard |
| Rear Hitch - Rear Hitch Type | Standard |
| Winch | Standard |
| Winch - Weight (lbs) | 3000 |
| Winch - Weight (kgs) | 1361 |
| Winch - Winch Brand Name | Warn® |
| Tow Hook | Standard |
| Roller Fairlead | Standard |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
