MSRP: $3999
$350.00 Savings
Total Price: $3649
* Plus Applicable Charges

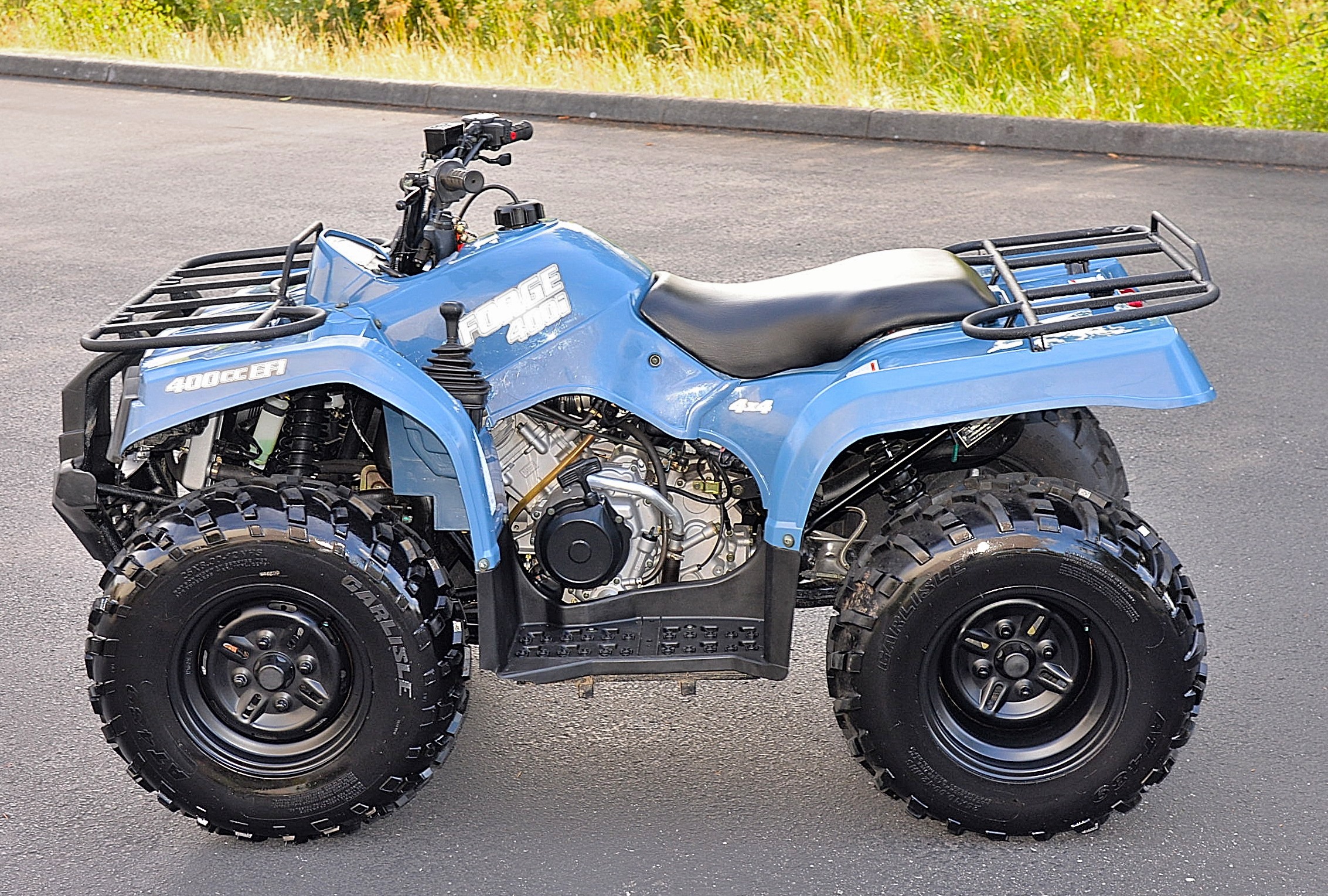

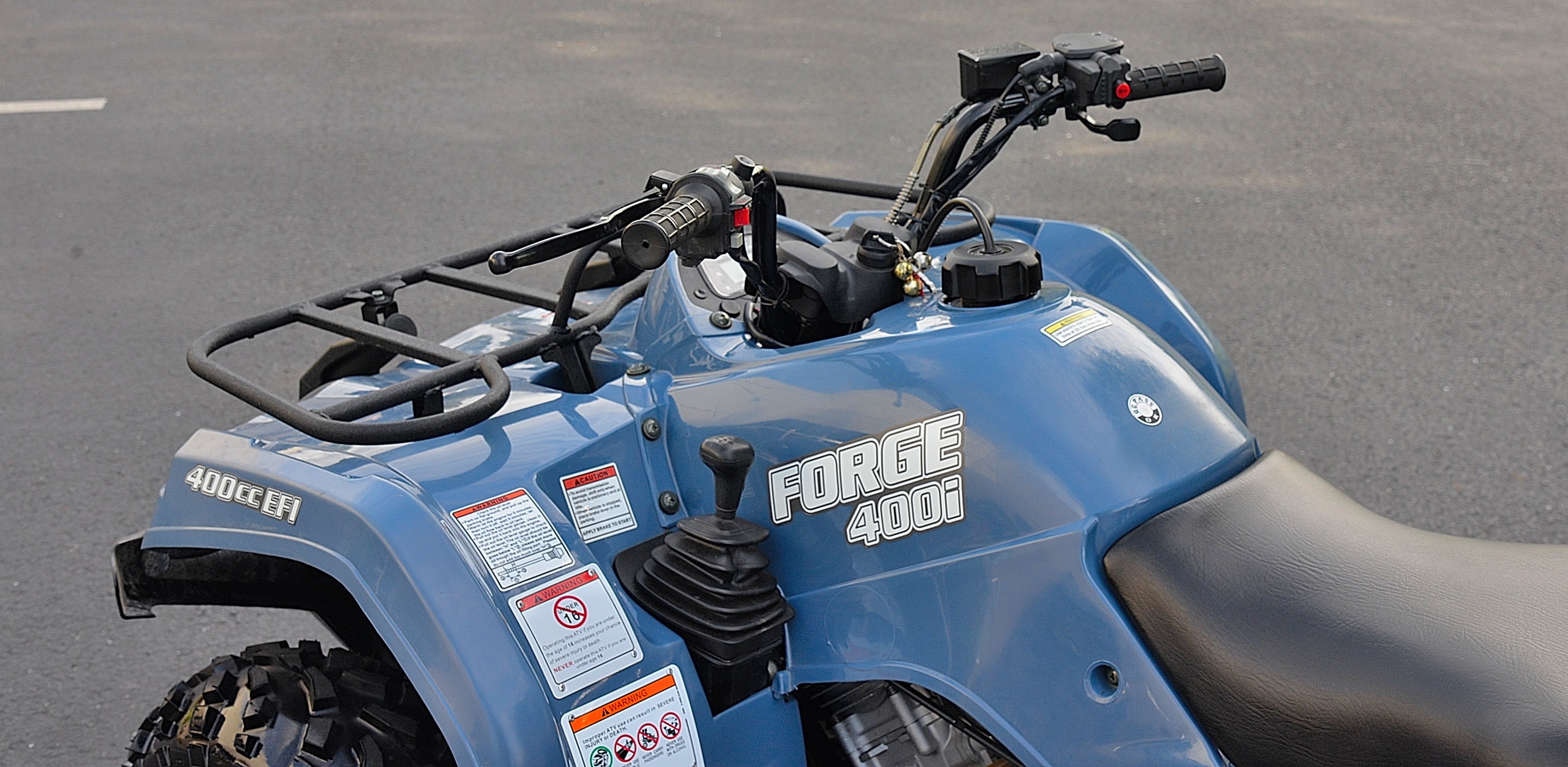

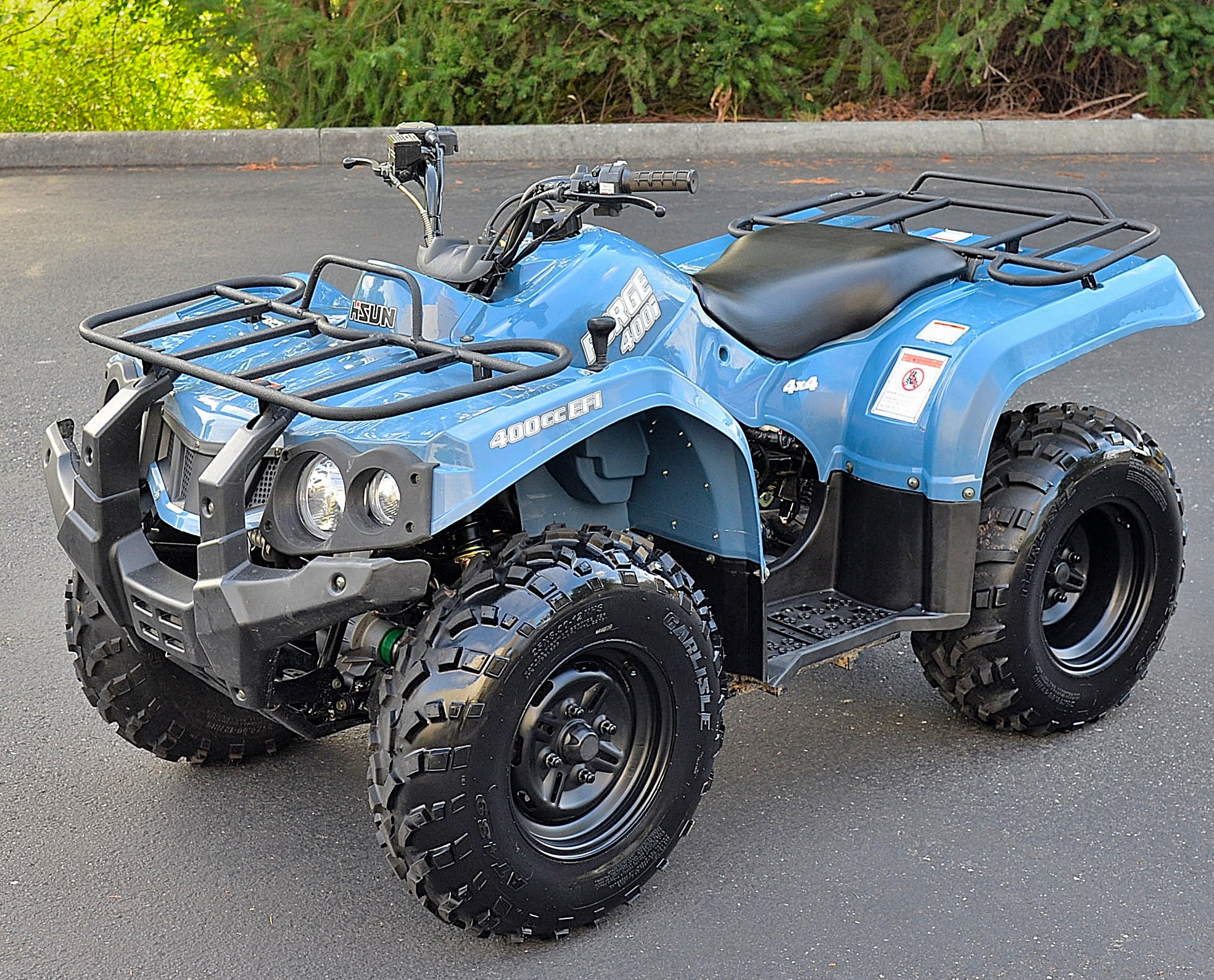

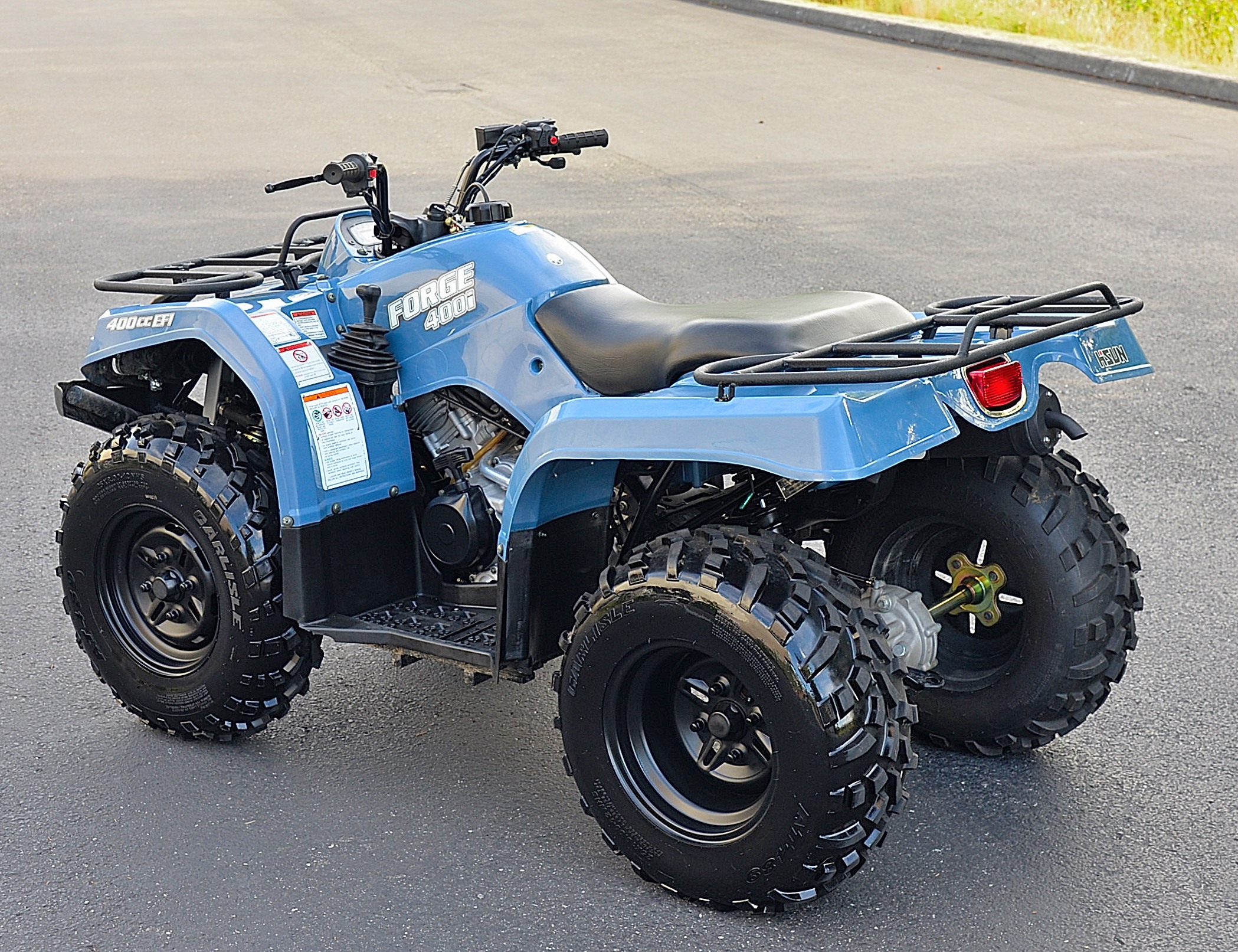

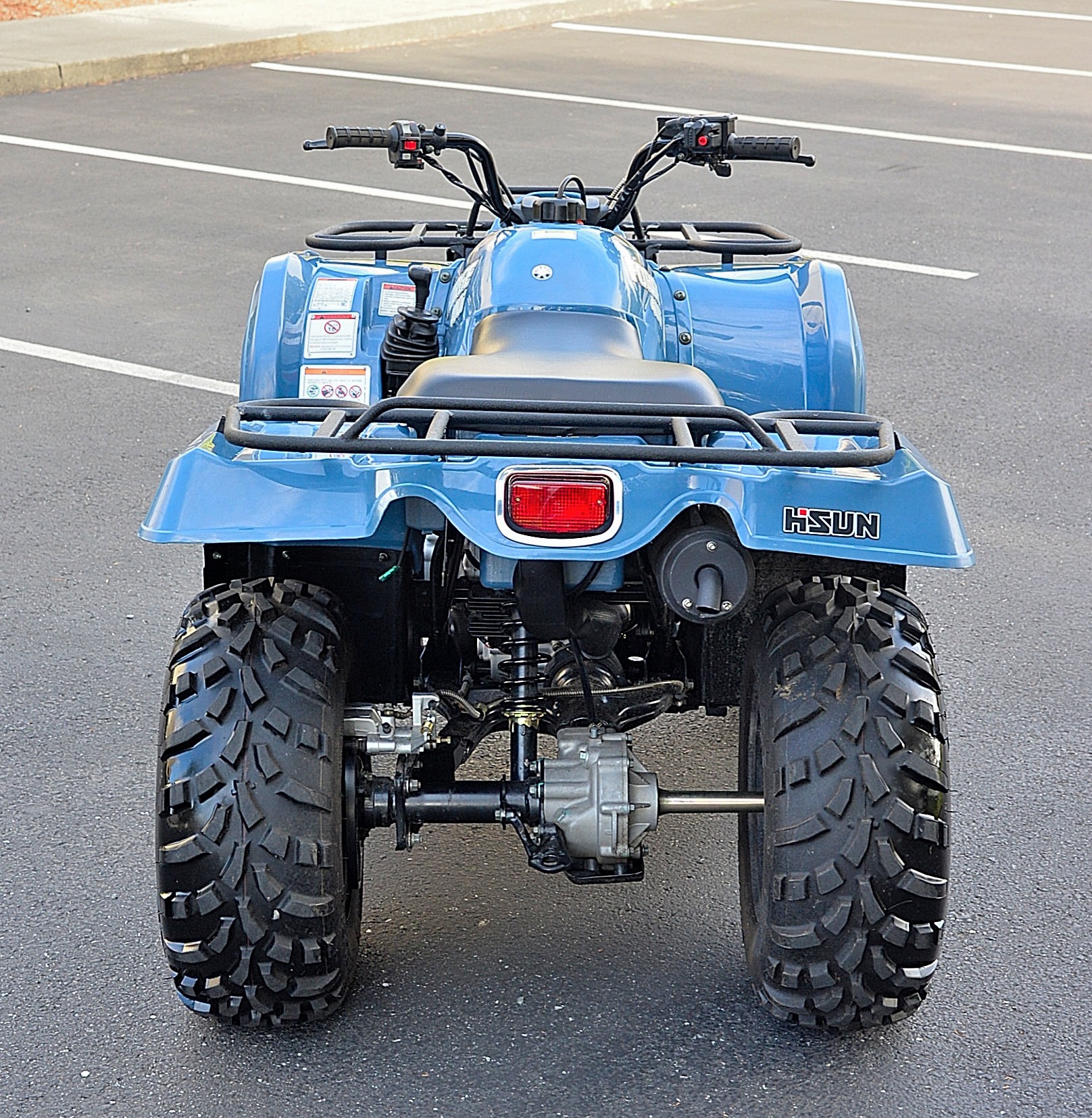

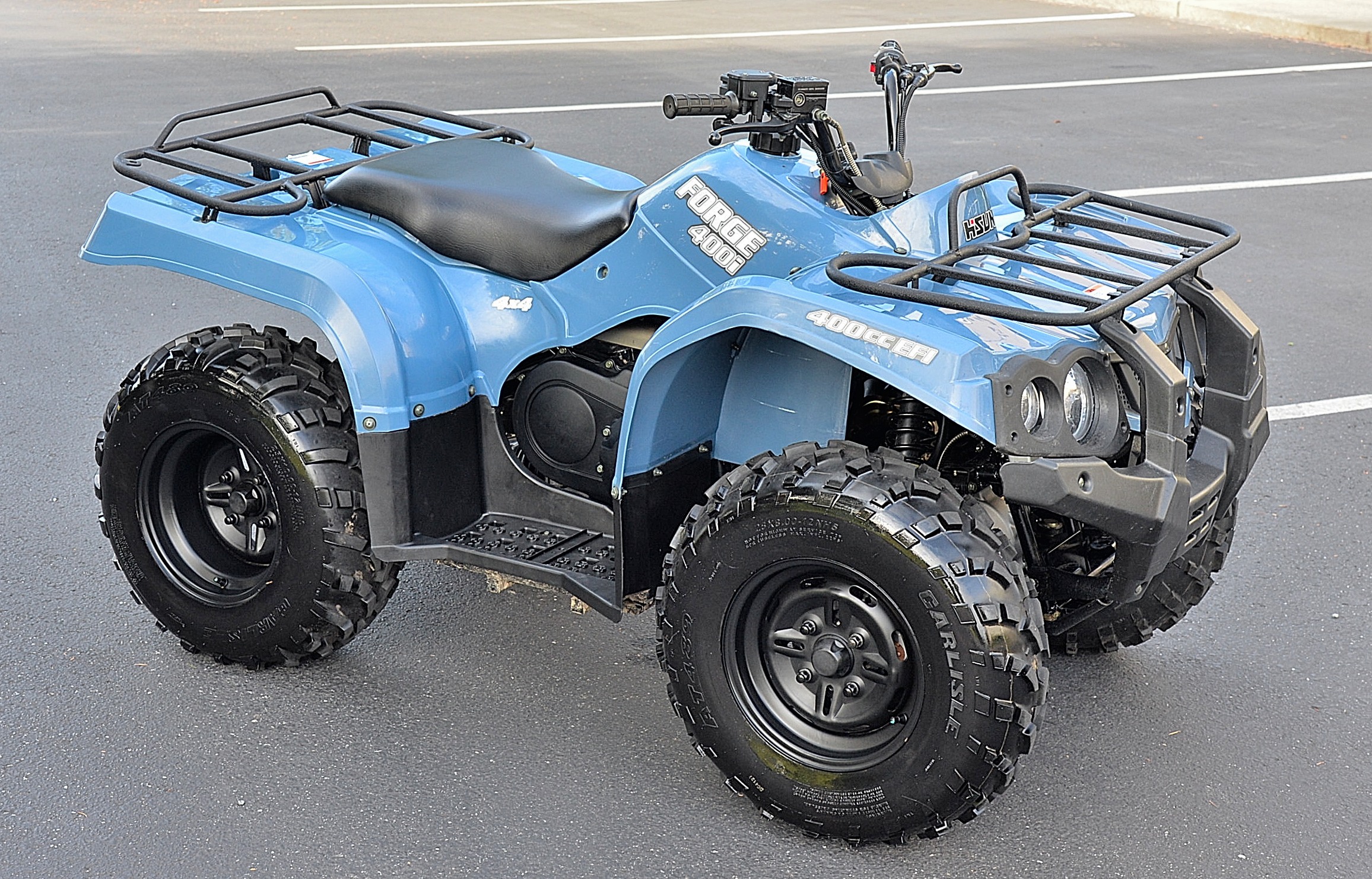

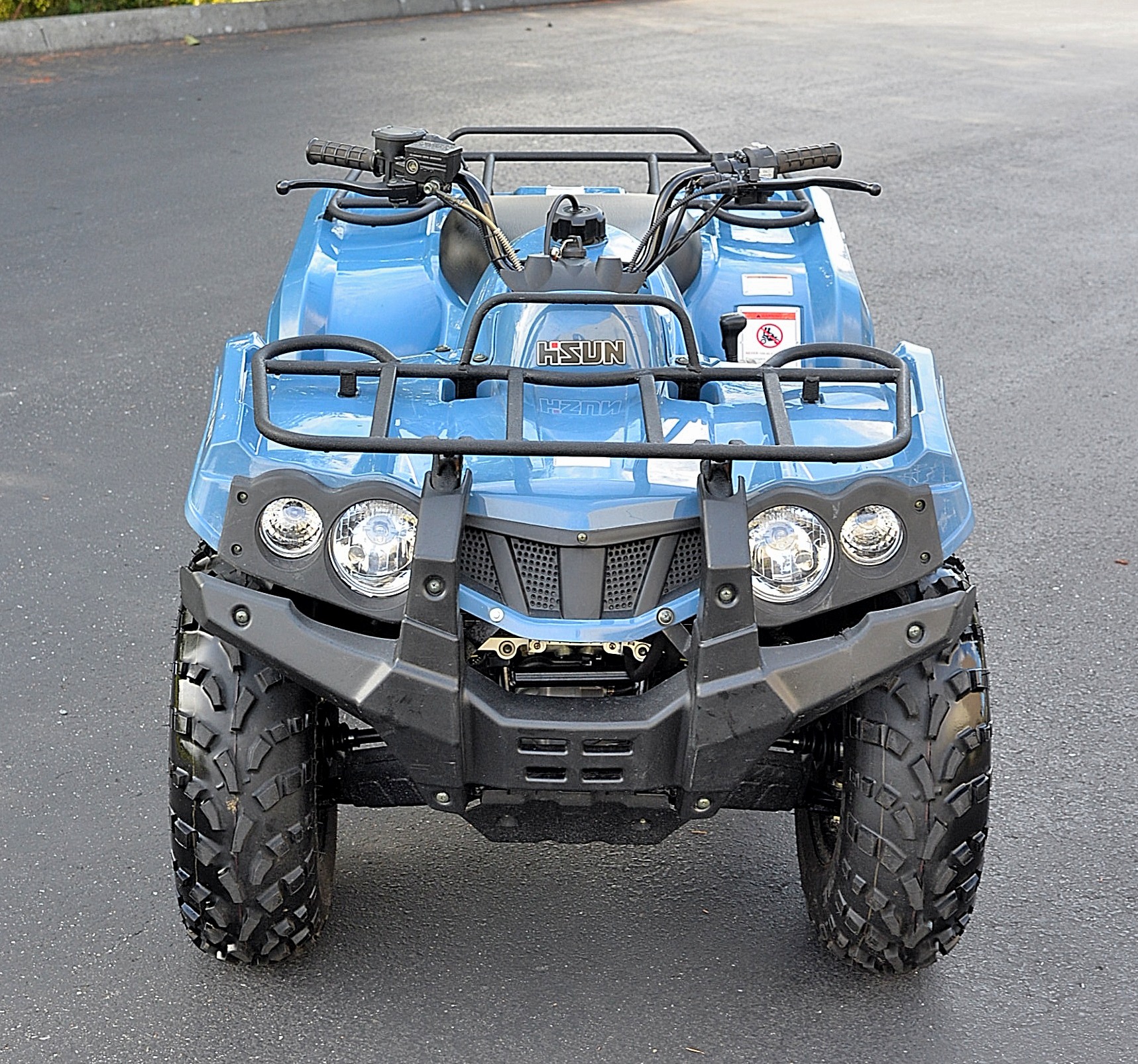

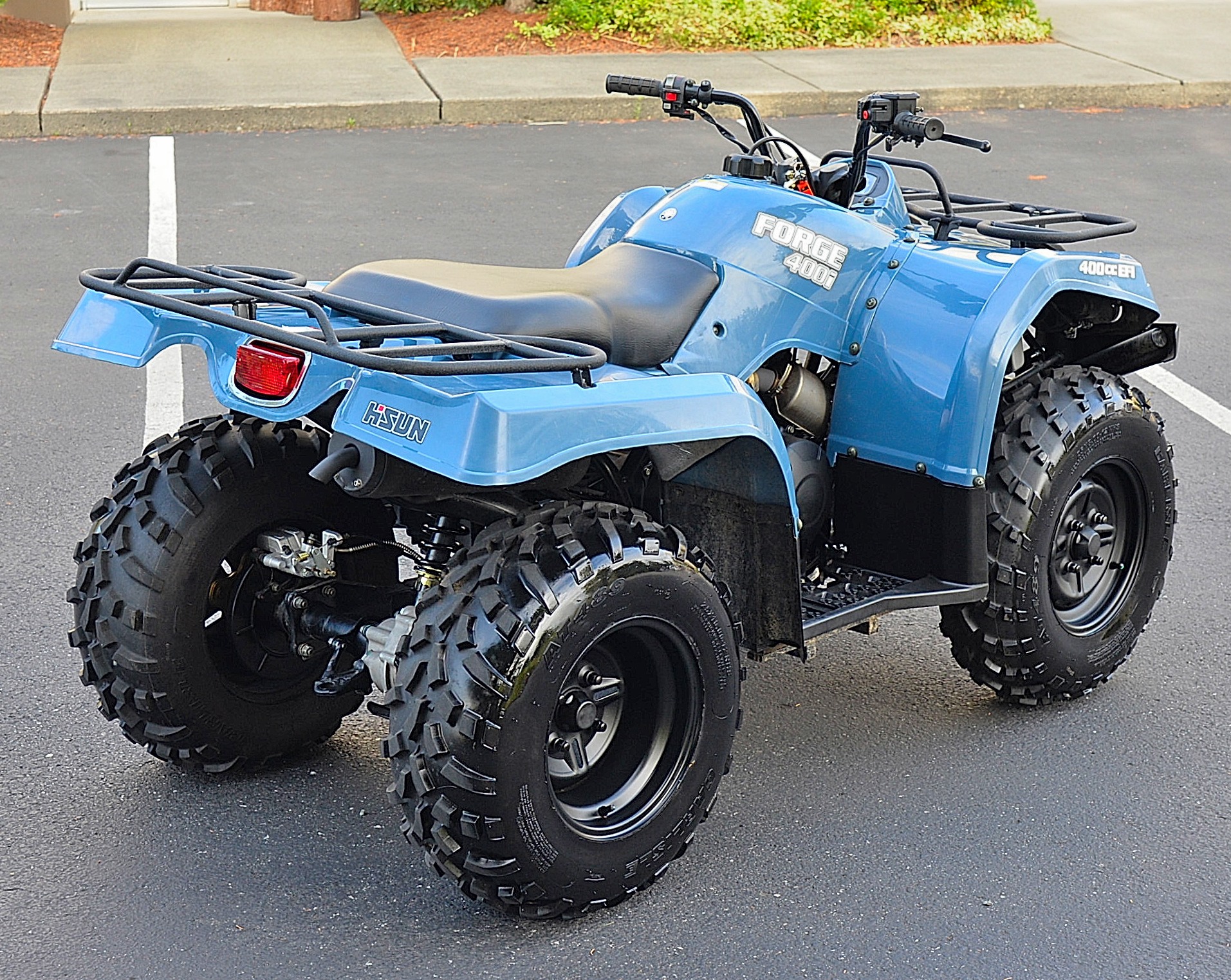

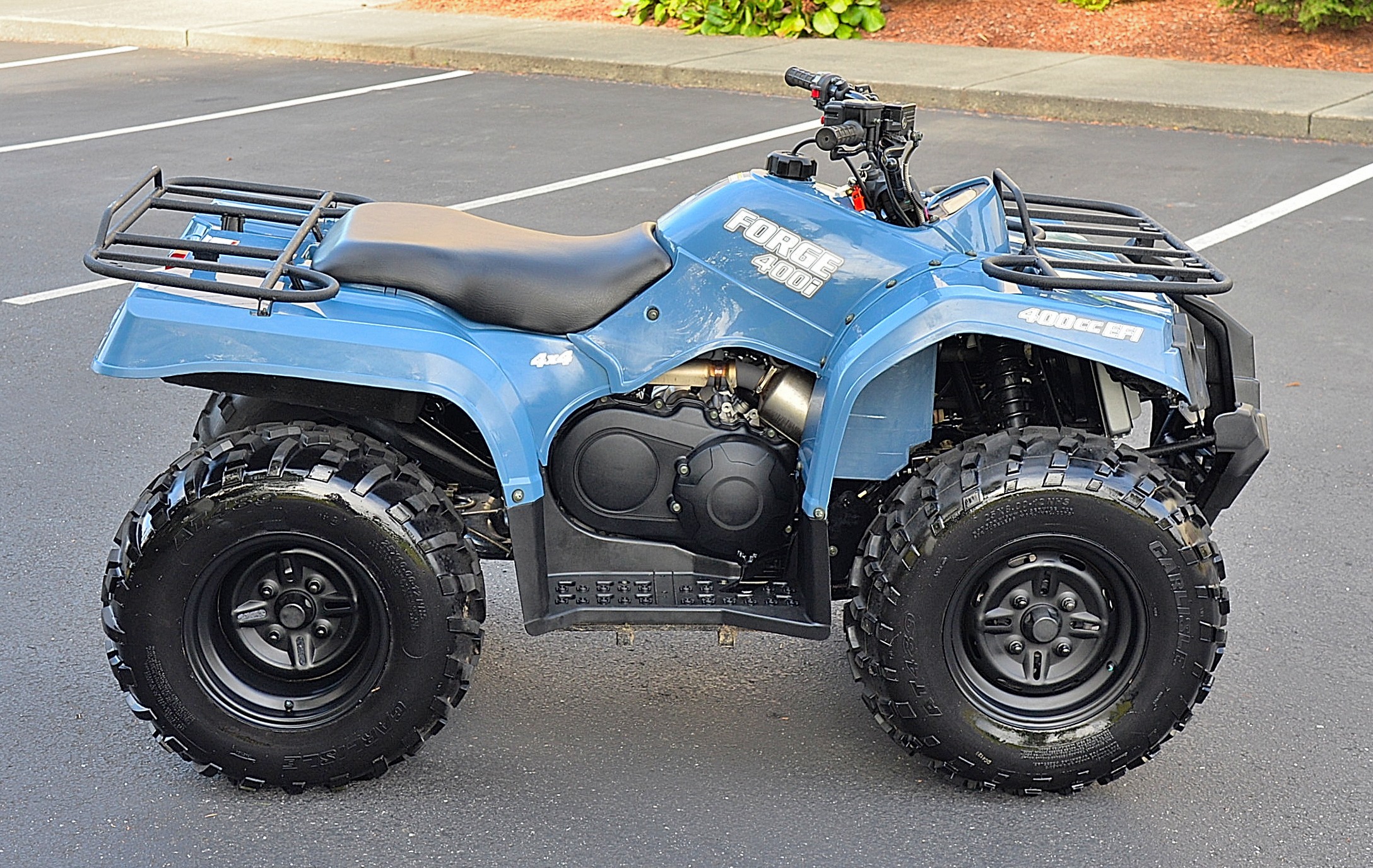

* Sale Price does not include Freight, Set-up, Tax, License and Doc fee.Backed by a 2-year warranty, the mid-size Forge 400 is ready to take on the terrain. Reliable, powerful, and engineered for great handling, the Forge 400 comes powered by a 393cc Single Cylinder EFI Engine, Automatic CVT Clutching and Dual A-Arm Front Suspension to make for a better ride.
For safety and training call the SVIA at (800) 887-2887 or visit www.atvsafety.org for an online safety course.
ENGINE
Engine Type : 4-Stroke Single Cylinder OHC
Cylinders Displacement : 393cc
Fuel System : Electronic Fuel Injection
Cooling : Liquid
DRIVE TRAIN
Transmission : Automatic CVT F/N/R
Drive System : 2WD / 4WD
Locking Differential : Front
Final Drive : Shaft
CHASIS / SUSPENSION / BRAKES
Front Suspension : Dual A-Arm
Rear Suspension : Swing Arm
Shocks : Adjustable Hydraulic
Front / Rear Brakes : Hydraulic Disc
Parking Break : Mechanical
Front Tires : 25 x 8-12
Rear Tires : 25 x 10-12
Wheels : Steel
DIMENSIONS
Overall Vehicle (L x W x H) : 82.5" x 42" x 46"
Wheel Base : 51
Rack Capacity : Front 44 LB / Rear 77 LB
Person Capacity : 1
Fuel Capacity : 2.9 Gallons
Empty Vehicle Weight Rating : 772 LBS
Gross Vehicle Weight Rating : 1,069 LBS
Tow Rating : 1,200 LBS
Ground Clearance : 8"
OTHER

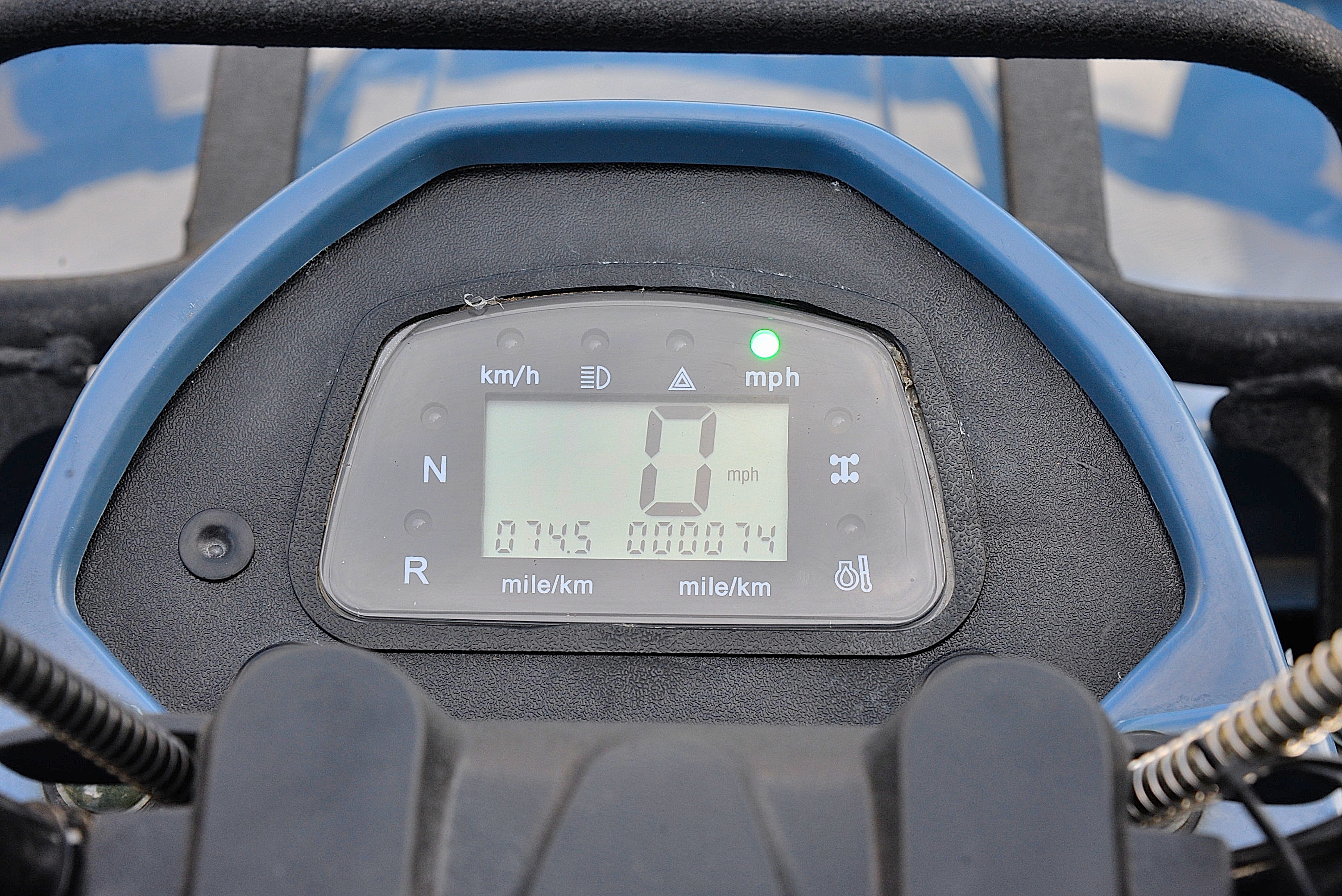

Instrumentation : Digital Speedometer & Tachometer With LCD Rider Information
Winch: N/A
Brake Lights : Yes
Headlights : High / Low Beam
Cargo Racks : Front / Rear
Warranty : 2-Year Limited
Colors : Camo, Red
PRICING
| Price | Standard |
| Price - MSRP | 3999 |
| Price - Currency | US Dollars |
| Price - Warranty (Months) | 24 |
| Price - MSRP + Destination | 3999 |
| Price - Warranty (Condition) | Limited |
ENGINE
| Engine | Standard |
| Engine - Engine Type | Single-Cylinder |
| Engine - Cylinders | 1 |
| Engine - Engine Stroke | 4-Stroke |
| Engine - Cooling | Liquid |
| Engine - Valves | 2 |
| Engine - Valves Per Cylinder | 2 |
| Engine - Valve Configuration | OHV |
| Engine - Bore (mm) | 84.5 |
| Engine - Bore (in) | 3.33 |
| Engine - Stroke (mm) | 70 |
| Engine - Stroke (in) | 2.76 |
| Engine - Displacement (cc) | 393 |
| Engine - Displacement (ci) | 24 |
| Engine - Compression Ratio | 9.3:1 |
| Engine - Starter | Electric / Pull |
| Engine - Fuel Requirements | Regular |
| Engine - Fuel Type | Gas |
| Carburetion | Standard |
| Carburetion - Fuel Injector | Yes |
| Carburetion - Carburetor | No |
| Carburetion - Carburetion Type | Fuel Injected |
| Kill Switch / Tether Cord | Standard |
TRANSMISSION
| Transmission | Standard |
| Transmission - Transmission Type | Continuously Variable (CVT) |
| Transmission - Primary Drive (Rear Wheel) | Shaft |
| Transmission - Primary Drive (Engine / Transmission) | Belt |
| Transmission - Reverse | Yes |
| Transmission - Hi / Low Range | No |
| Transmission - Primary Drive (Front Wheel) | Shaft |
TECHNICAL SPECIFICATIONS
| Dimensions | Standard |
| Dimensions - Length (in) | 82.5 |
| Dimensions - Length (mm) | 2095.5 |
| Dimensions - Width (in) | 42 |
| Dimensions - Width (mm) | 1066.8 |
| Dimensions - Height (in) | 46 |
| Dimensions - Height (mm) | 1168.4 |
| Dimensions - Wheelbase (in) | 51 |
| Dimensions - Wheelbase (mm) | 1295.4 |
| Dimensions - Ground Clearance (in) | 8 |
| Dimensions - Ground Clearance (mm) | 203.2 |
| Dimensions - Length (ft) | 6.88 |
| Dimensions - Length (ft/ft) | 6 |
| Dimensions - Length (ft/in) | 10.5 |
| Weight | Standard |
| Weight - Dry Weight (lbs) | 772 |
| Weight - Dry Weight (kg) | 350.2 |
| Weight - Towing Capacity (lbs) | 1200 |
| Weight - Towing Capacity (kgs) | 544.3 |
| Weight - GVWR (lbs) | 1069 |
| Weight - GVWR (kgs) | 484.9 |
| Capacities | Standard |
| Capacities - Fuel Capacity (gal) | 2.9 |
| Capacities - Fuel Capacity (l) | 11 |
| Performance | Standard |
| Performance - Engine Displacement to Weight (cc) | 0.51 |
EXTERIOR
| Construction | Standard |
| Construction - Frame | Steel |
| Construction - Body Material | Plastic |
| Floor Boards | Standard |
| Floor Boards - Floor Board Location | Driver |
| Hand Grips | Standard |
| Exterior Guards | Standard |
| Exterior Guards - Hand Guards | No |
| Exterior Guards - Brush Guard | Yes |
| Exterior Guards - Light Guard | No |
| Exterior Covers | Standard |
| Exterior Covers - CV Boot Cover | Yes |
| Exterior Covers - Shock Cover | No |
| Front Fender | Standard |
| Rear Fender | Standard |
| Handlebars | Standard |
| Front Bumper | Standard |
| Front Fender Flairs | Standard |
| Rear Fender Flairs | Standard |
| Skid Plate | Standard |
| Skid Plate - A-Arm Skid Plate (Front) | Yes |
| Skid Plate - A-Arm Skid Plate (Rear) | No |
| Skid Plate - Bash Plate (Front) | Yes |
| Skid Plate - Swing Arm Skid Plate | Yes |
SUSPENSION
| Front Suspension | Standard |
| Front Suspension - Front Suspension Type | Independent Double A-Arm |
| Front Suspension - Front Adjustable Fork Pre-Load | Yes |
| Front Suspension - Front Adjustable Rebound Damping | No |
| Front Suspension - Front Central Suspension Strut | No |
| Front Suspension - Steering Damper | No |
| Front Suspension - Front Stabilizer Bar | No |
| Rear Suspension | Standard |
| Rear Suspension - Rear Suspension Type | Swing Arm |
| Rear Suspension - Rear Adjustable Shock / Spring Pre-Load | Yes |
| Rear Suspension - Rear Adjustable Rebound Damping | No |
| Rear Suspension - Number Rear Shock Absorbers | 1 |
| Rear Suspension - Rear Suspension Material | Steel |
| Rear Suspension - Rear Stabilizer Bar | No |
| Rear Suspension - Air Adjustable | No |
WHEELS & TIRES
| Wheels | Standard |
| Wheels - Wheels Composition | Steel |
| Wheels - Tube / Tubeless | Tubed |
| Wheels - Front Tire Diameter (in) | 25 |
| Wheels - Rear Tire Diameter (in) | 25 |
| Wheels - Chromed | No |
| Tires | Standard |
| Tires - Front Tire Width | 8 |
| Tires - Front Wheel Diameter | 12 |
| Tires - Rear Tire Width | 10 |
| Tires - Rear Wheel Diameter | 12 |
| Tires - Front Tire (Full Spec) | AT 25 X 8-12 Radial |
| Tires - Rear Tire (Full Spec) | AT 25 X 10-12 Radial |
BRAKES
| Brakes | Standard |
| Brakes - Front Brake Type | Dual Hydraulic Disc |
| Brakes - Rear Brake Type | Hydraulic Disc |
| Engine Braking | Standard |
SEATS
| Seat | Standard |
| Seat - Seat Type | One-Piece |
| Seat - Adjustable | No |
| Seat - Seat Material | Vinyl |
| Seat - Seat Location | Driver |
| Seat - Folding | No |
| Seat Specifications | Standard |
| Seat Specifications - Number Of Seats | 1 |
INSTRUMENTATION
| Digital Instrumentation | Standard |
| Clock | Standard |
| Tachometer | Standard |
| Trip Odometer | Standard |
| Speedometer | Standard |
| Hour Meter | Standard |
| Temperature Warning | Standard |
| Temperature Warning - Temperature Warning Type | Light |
| Fuel Level Warning | Standard |
| Fuel Level Warning - Fuel Level Warning Type | Gauge |
STORAGE
| Rear Rack | Standard |
| Rear Rack - Capacity (lbs) | 77 |
| Rear Rack - Capacity (kgs) | 34.9 |
| Front Rack | Standard |
| Front Rack - Capacity (lbs) | 44 |
| Front Rack - Capacity (kgs) | 20 |
LIGHTS
| Halogen Headlight(s) | Standard |
| Headlight(s) | Standard |
| Headlight(s) - Type | Halogen |
PAINT & FINISH
| Paint | Standard |
| Paint - Metallic | No |
DRIVE LINE
| Driveline | Standard |
| Driveline - Driveline Brand | On-Demand™ |
| Driveline - Driveline Type | Selectable 4X2 / 4X4 |
| Driveline - Number Of Driveline Modes | 2 |
| Driveline - Rear Unlocking Differential | No |
| Driveline - Rear Solid Axle | Yes |
| Differential Lock | Standard |
| Differential Lock - Differential Lock Location | Front |
STEERING
| Steering | Standard |
| Steering - Steering Type | Manual |
| Steering - Steering Control | Handlebar |
TOWING & HAULING
| Rear Hitch | Standard |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
