MSRP: $3,999.00
* Plus Applicable Charges

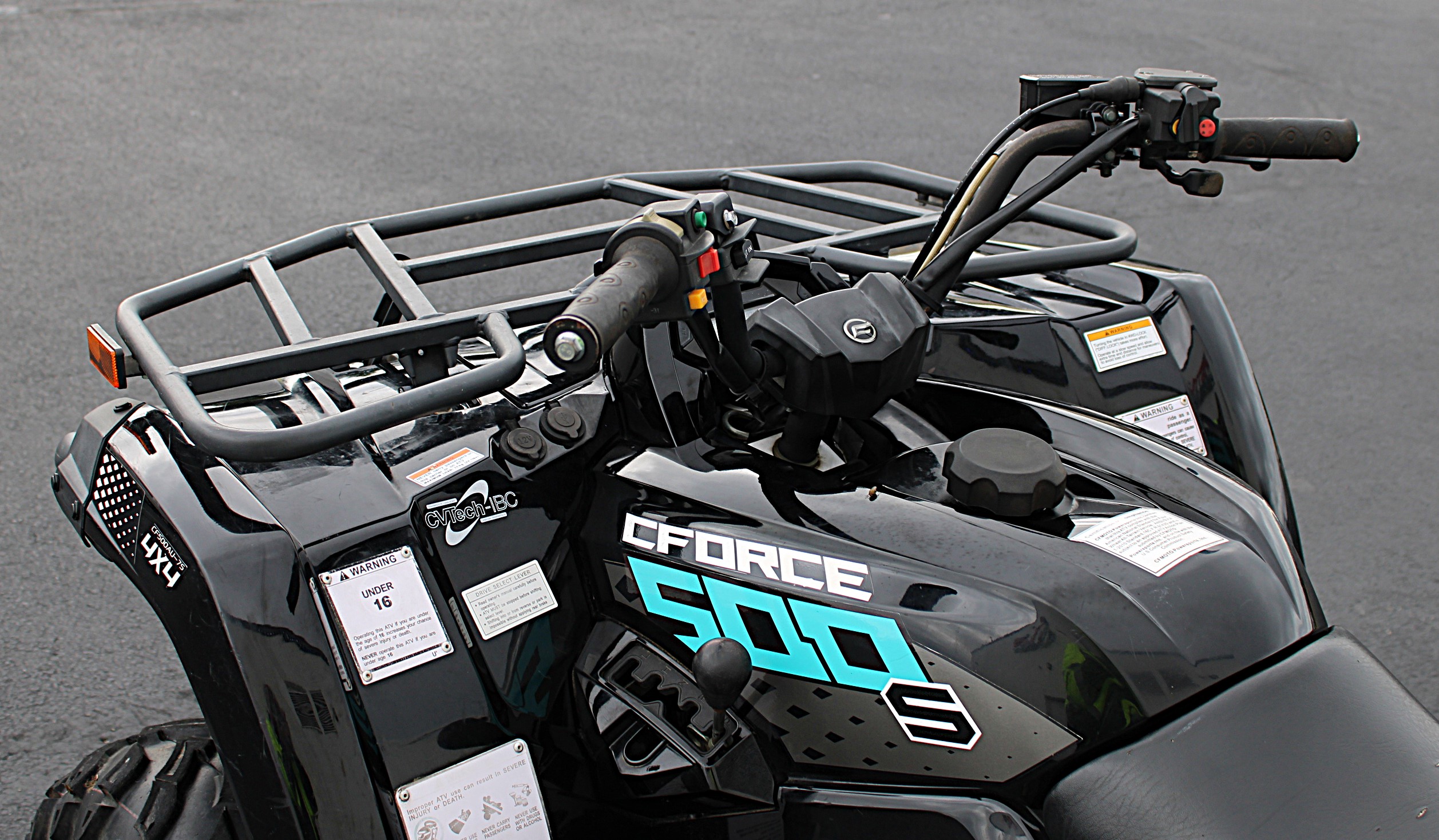

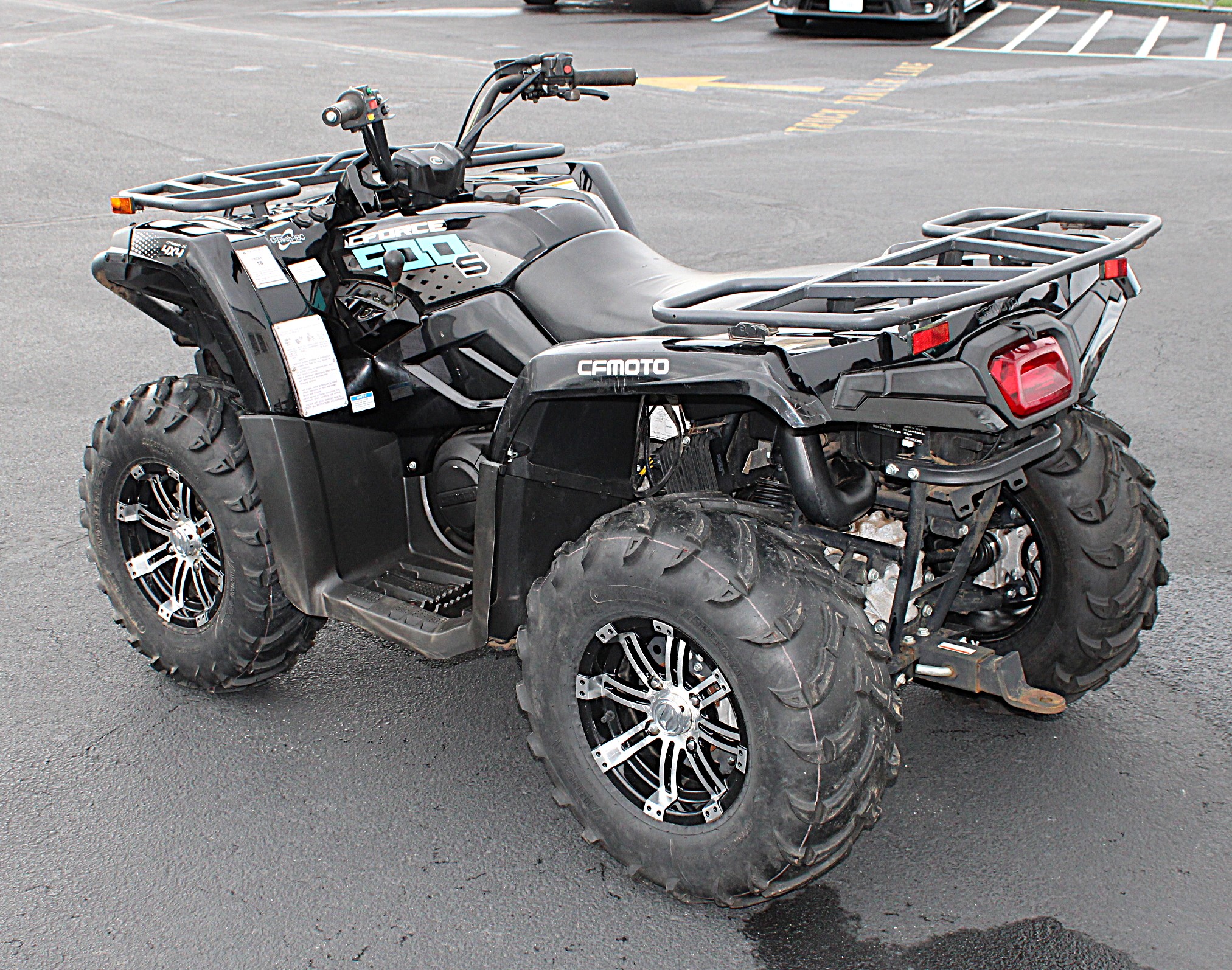

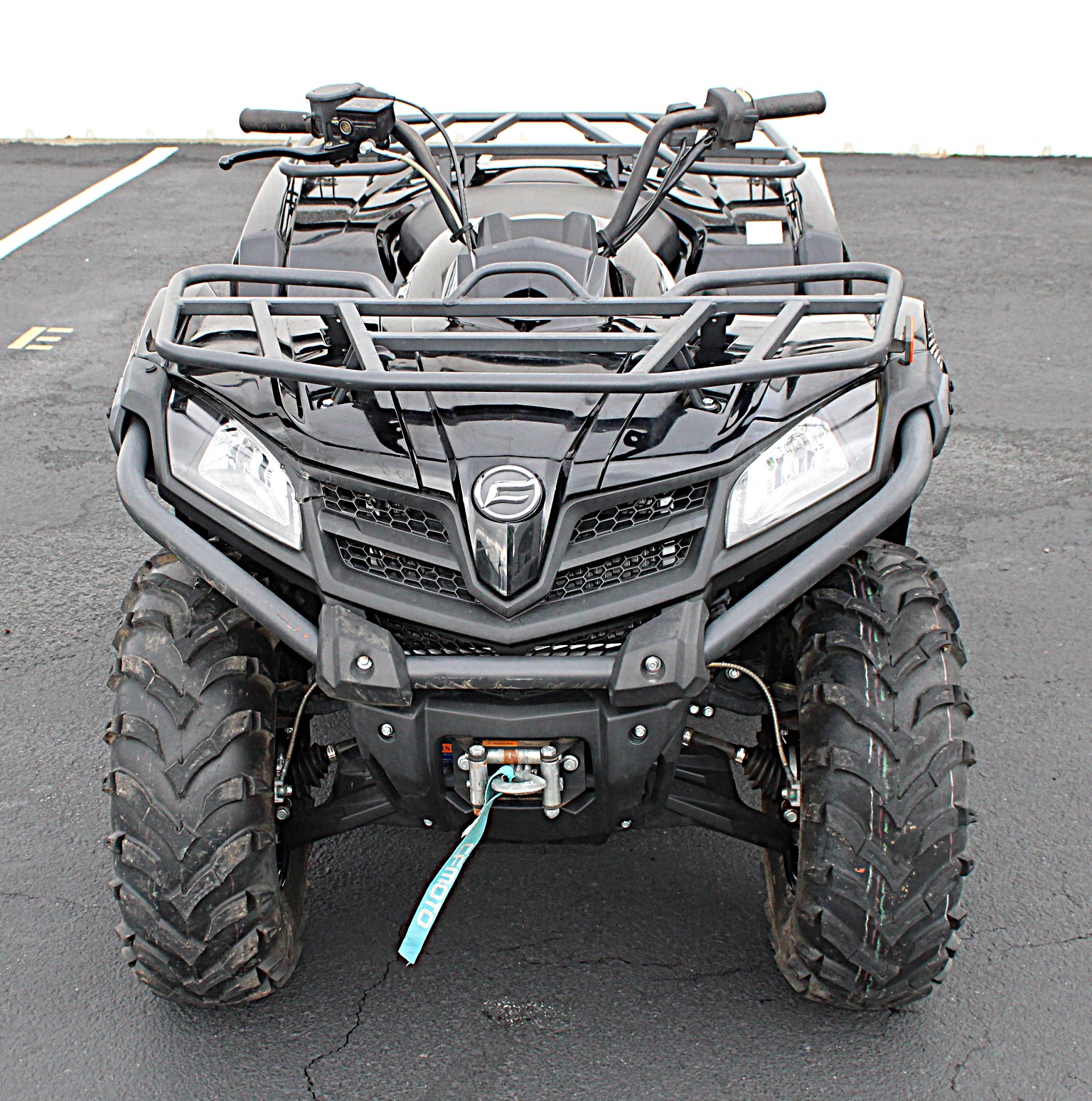

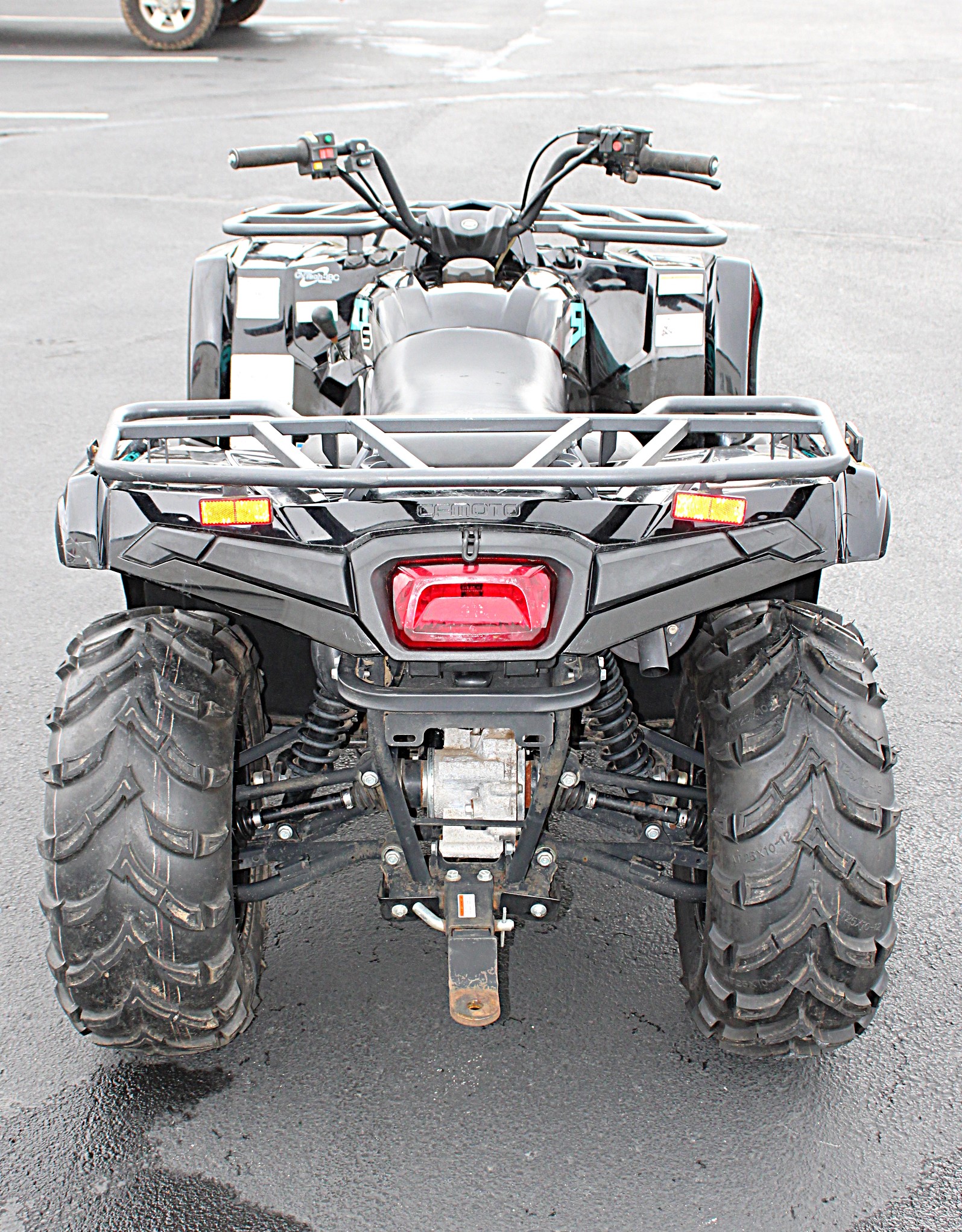

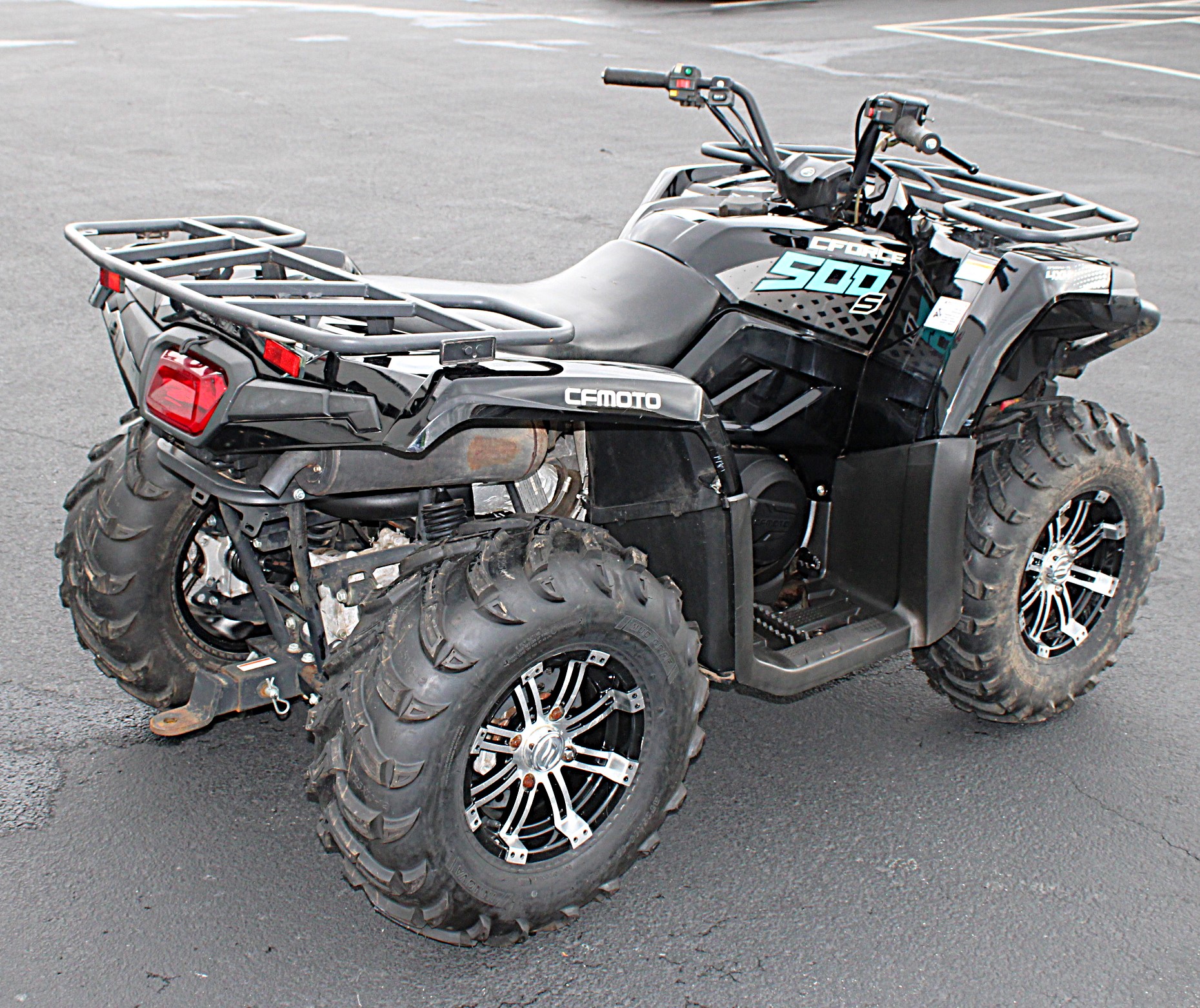

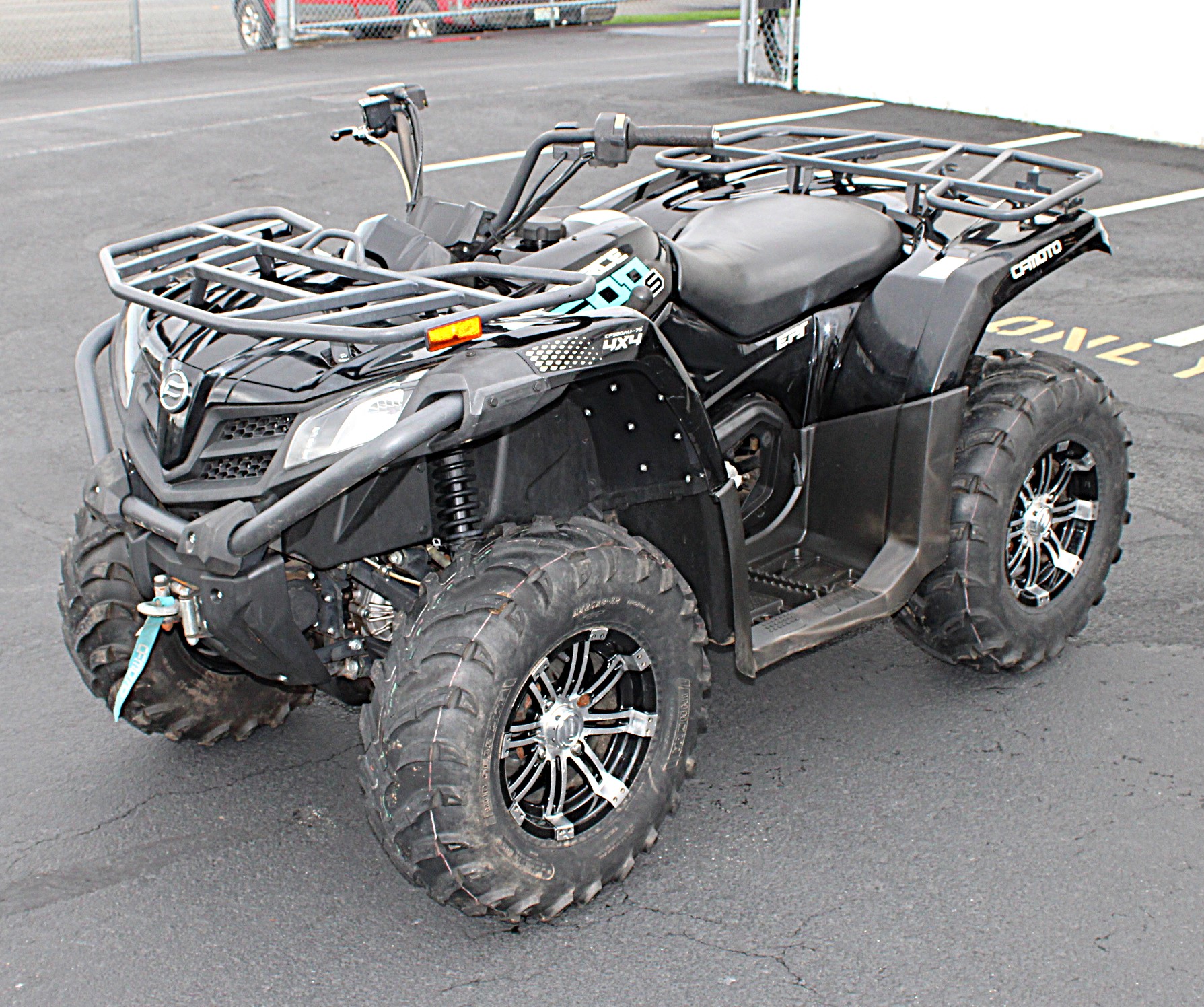

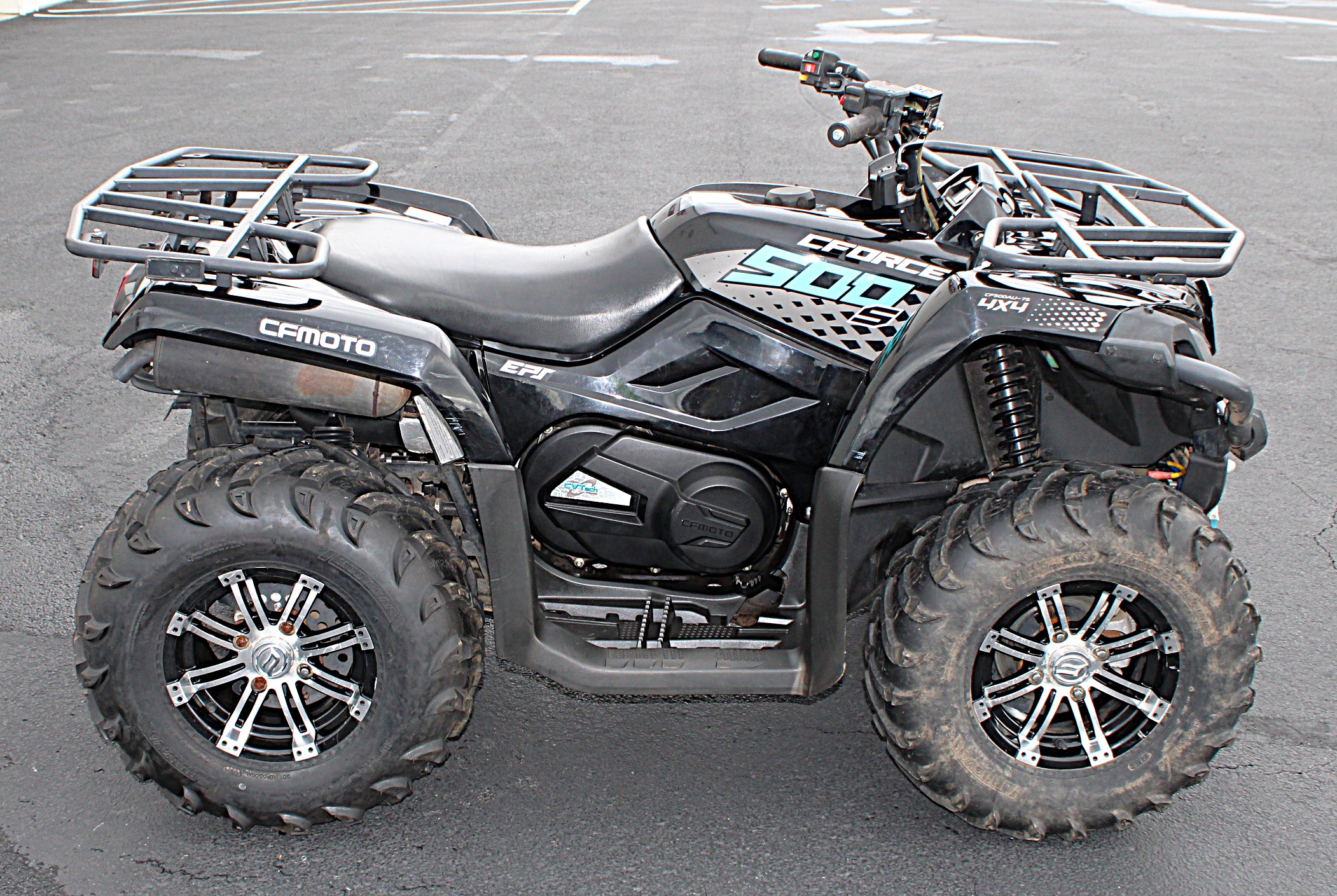

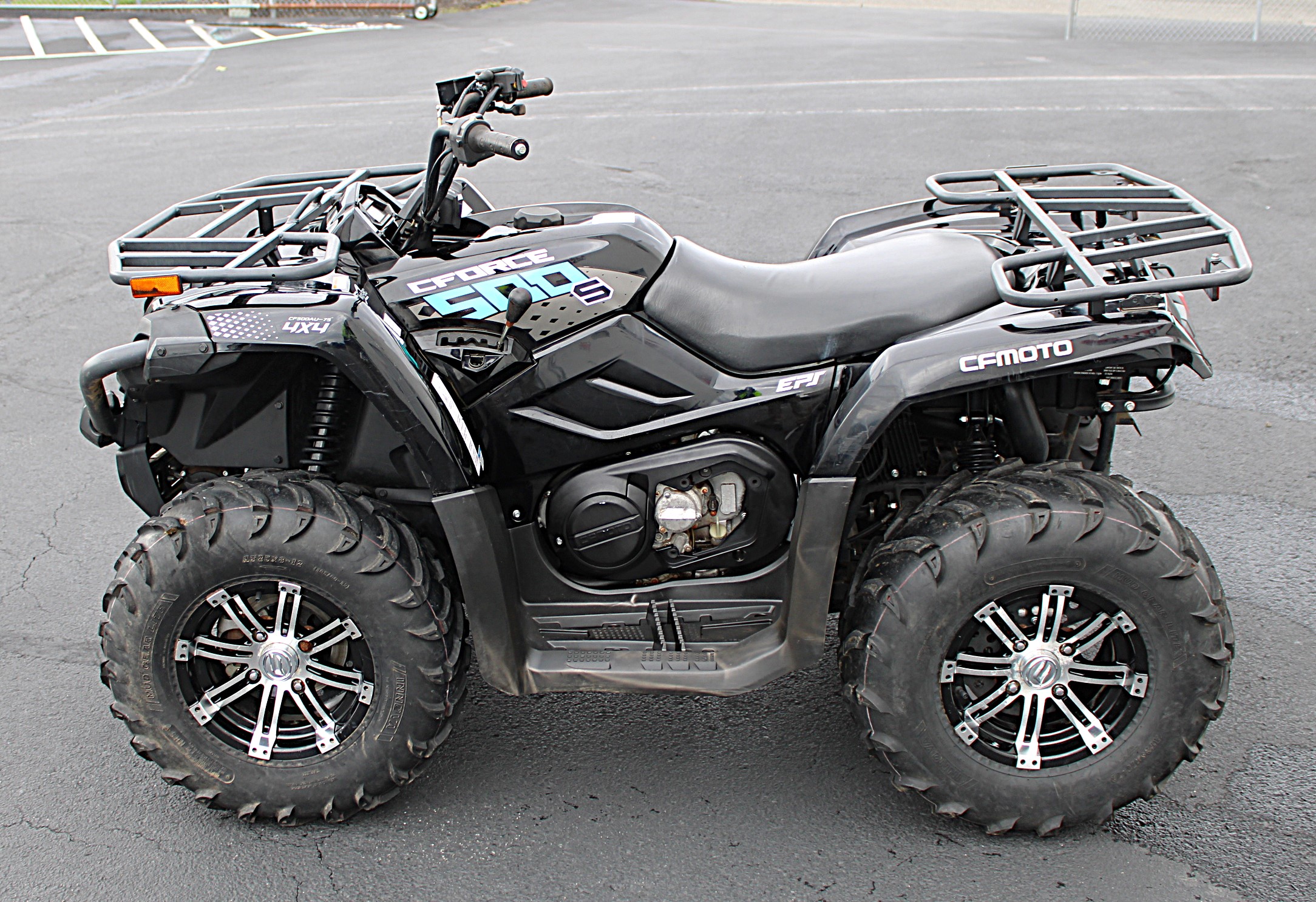

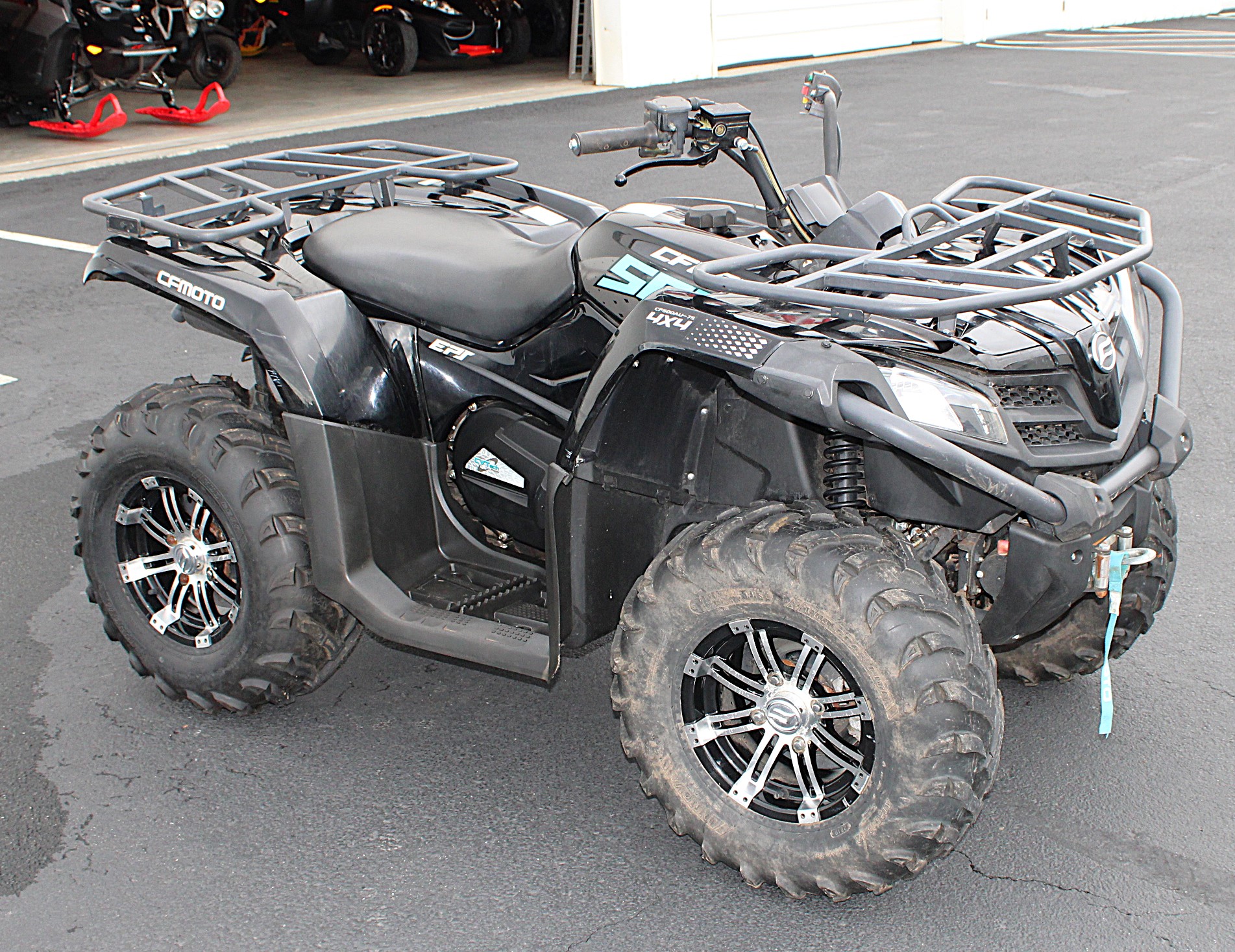

* Sale Price does not include Freight, Set-up, Tax, License and Doc fee.The CFMOTO CFORCE 500S is a utility style ATV with an MSRP of $5,299 and is carryover for 2019. Power is provided by a 4-Stroke, 495cc, Liquid cooled, SOHC, Single-Cylinder engine with Electric starter. The engine is paired with The CFORCE 500S rides on Aluminum wheels with 25 X 8 X 12 front tires and a 25 X 10 X 12 rear tires. The front suspension is an Independent Double A-Arm while the rear suspension is an Independent Double A-Arm. Front Hydraulic Disc brakes and rear Hydraulic Disc brakes provide stopping power. The CFORCE 500S comes standard with an One-Piece, 1-passenger seat.
Features may include:
PRICING
| Price | Standard |
| Price - Warranty (Months) | 12 |
| Price - Warranty (Condition) | Limited |
ENGINE
| Engine | Standard |
| Engine - Engine Type | Single-Cylinder |
| Engine - Cylinders | 1 |
| Engine - Engine Stroke | 4-Stroke |
| Engine - Horsepower (bhp) | 38 |
| Engine - Horsepower (kW) | 28.4 |
| Engine - Horsepower RPM | 6800 |
| Engine - Torque (Ft Lbs) | 32 |
| Engine - Torque (Nm) | 43.4 |
| Engine - Torque RPM | 5800 |
| Engine - Cooling | Liquid |
| Engine - Valves | 4 |
| Engine - Valves Per Cylinder | 4 |
| Engine - Valve Configuration | SOHC |
| Engine - Bore (mm) | 91 |
| Engine - Bore (in) | 3.58 |
| Engine - Stroke (mm) | 76.2 |
| Engine - Stroke (in) | 3 |
| Engine - Displacement (cc) | 495 |
| Engine - Displacement (ci) | 30.2 |
| Engine - Compression Ratio | 10.3:1 |
| Engine - Starter | Electric |
| Engine - Fuel Requirements | Regular |
| Engine - Fuel Type | Gas |
| Carburetion | Standard |
| Carburetion - Carburetion Brand | Bosch |
| Carburetion - Fuel Injector | Yes |
| Carburetion - Carburetor | No |
| Carburetion - Carburetion Type | Fuel Injected |
TRANSMISSION
| Transmission | Standard |
| Transmission - Transmission Type | Continuously Variable (CVT) |
| Transmission - Primary Drive (Rear Wheel) | Shaft |
| Transmission - Primary Drive (Engine / Transmission) | Belt |
| Transmission - Reverse | Yes |
| Transmission - Hi / Low Range | Yes |
| Transmission - Primary Drive (Front Wheel) | Shaft |
TECHNICAL SPECIFICATIONS
| Dimensions | Standard |
| Dimensions - Length (in) | 82.6 |
| Dimensions - Length (mm) | 2098 |
| Dimensions - Width (in) | 43.3 |
| Dimensions - Width (mm) | 1099.8 |
| Dimensions - Height (in) | 45.3 |
| Dimensions - Height (mm) | 1150.6 |
| Dimensions - Wheelbase (in) | 50.7 |
| Dimensions - Wheelbase (mm) | 1287.8 |
| Dimensions - Ground Clearance (in) | 10.8 |
| Dimensions - Ground Clearance (mm) | 274.3 |
| Dimensions - Length (ft) | 6.88 |
| Dimensions - Length (ft/ft) | 6 |
| Dimensions - Length (ft/in) | 10.6 |
| Weight | Standard |
| Weight - Dry Weight (lbs) | 758 |
| Weight - Dry Weight (kg) | 343.8 |
| Weight - Towing Capacity (lbs) | 873 |
| Weight - Towing Capacity (kgs) | 396 |
| Capacities | Standard |
| Performance | Standard |
| Performance - Engine Displacement to Weight (cc) | 0.65 |
EXTERIOR
| Construction | Standard |
| Construction - Frame | Steel |
| Construction - Body Material | Plastic |
| Floor Boards | Standard |
| Floor Boards - Floor Board Location | Driver |
| Exterior Guards | Standard |
| Exterior Guards - Hand Guards | No |
| Exterior Guards - Brush Guard | Yes |
| Exterior Guards - Light Guard | No |
| Exterior Guards - Radiator Guard | Yes |
| Exterior Covers | Standard |
| Front Fender | Standard |
| Rear Fender | Standard |
| Handlebars | Standard |
| Front Bumper | Standard |
| Front Fender Flairs | Standard |
| Rear Fender Flairs | Standard |
| Skid Plate | Standard |
| Skid Plate - A-Arm Skid Plate (Front) | Yes |
| Skid Plate - A-Arm Skid Plate (Rear) | Yes |
| Skid Plate - Bash Plate (Front) | Yes |
| Skid Plate - Bash Plate (Rear) | No |
| Skid Plate - Swing Arm Skid Plate | No |
| Skid Plate - Full Length Skid Plate | No |
SUSPENSION
| Front Suspension | Standard |
| Front Suspension - Front Suspension Type | Independent Double A-Arm |
| Front Suspension - Front Adjustable Fork Pre-Load | Yes |
| Front Suspension - Front Adjustable Rebound Damping | No |
| Front Suspension - Front Central Suspension Strut | No |
| Front Suspension - Steering Damper | No |
| Front Suspension - Front Stabilizer Bar | No |
| Rear Suspension | Standard |
| Rear Suspension - Rear Suspension Type | Independent Double A-Arm |
| Rear Suspension - Rear Adjustable Shock / Spring Pre-Load | Yes |
| Rear Suspension - Rear Adjustable Rebound Damping | No |
| Rear Suspension - Number Rear Shock Absorbers | 2 |
| Rear Suspension - Air Adjustable | No |
WHEELS & TIRES
| Wheels | Standard |
| Wheels - Wheels Composition | Aluminum |
| Wheels - Tube / Tubeless | Tubeless |
| Wheels - Chromed | No |
| Tires | Standard |
| Tires - Front Tire Width | 8 |
| Tires - Front Wheel Diameter | 12 |
| Tires - Rear Tire Width | 10 |
| Tires - Rear Wheel Diameter | 12 |
| Tires - Front Tire (Full Spec) | 25 X 8 X 12 |
| Tires - Rear Tire (Full Spec) | 25 X 10 X 12 |
BRAKES
| Brakes | Standard |
| Brakes - Front Brake Type | Hydraulic Disc |
| Brakes - Rear Brake Type | Hydraulic Disc |
| Engine Braking | Standard |
SEATS
| Seat | Standard |
| Seat - Seat Type | One-Piece |
| Seat - Adjustable | No |
| Seat - Seat Material | Vinyl |
| Seat - Seat Location | Driver |
| Seat - Folding | No |
| Seat Specifications | Standard |
| Seat Specifications - Seat Height (in) | 35.4 |
| Seat Specifications - Seat Height (mm) | 899.2 |
| Seat Specifications - Number Of Seats | 1 |
INSTRUMENTATION
| Digital Instrumentation | Standard |
| Clock | Standard |
| Tachometer | Standard |
| Trip Odometer | Standard |
| Speedometer | Standard |
| Hour Meter | Standard |
| Temperature Warning | Standard |
| Temperature Warning - Temperature Warning Type | Gauge |
| Fuel Level Warning | Standard |
| Fuel Level Warning - Fuel Level Warning Type | Gauge |
STORAGE
| Rear Rack | Standard |
| Rear Rack - Capacity (lbs) | 150 |
| Rear Rack - Capacity (kgs) | 68 |
| Front Rack | Standard |
| Front Rack - Capacity (lbs) | 75 |
| Front Rack - Capacity (kgs) | 34 |
LIGHTS
| Headlight(s) | Standard |
| Headlight(s) - Type | High Intensity Discharge |
CONVENIENCE
| Power Outlet | Standard |
PAINT & FINISH
| Paint | Standard |
DRIVE LINE
| Driveline | Standard |
| Driveline - Driveline Type | Selectable 4X2 / 4X4 |
| Driveline - Number Of Driveline Modes | 2 |
| Driveline - Rear Unlocking Differential | No |
| Driveline - Rear Solid Axle | No |
| Differential Lock | Standard |
| Differential Lock - Differential Lock Location | Front |
STEERING
| Steering | Standard |
| Steering - Steering Type | Power |
| Steering - Steering Control | Handlebar |
TOWING & HAULING
| Rear Hitch | Standard |
| Rear Hitch - Size (in) | 2 |
| Rear Hitch - Size (cm) | 5.1 |
| Rear Hitch - Rear Hitch Type | Receiver |
| Winch | Standard |
| Winch - Weight (lbs) | 2500 |
| Winch - Weight (kgs) | 1134 |
| Tow Hook | Standard |
| Roller Fairlead | Standard |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
