The art of control

Trials riding is often underestimated; in reality, it is one of the most challenging types of off-road riding. Featuring Honda's engine knowledge and Montesa's chassis expertise, the Cota 4RT 260R is an ideal bike for both aspiring champions and recreational riders who want to take on this demanding discipline.

Performance

PGM-FI engine

The bike has a fuel-injected power system that's easy to control for Trials riding. The 259cc Honda liquid-cooled four-stroke engine is tuned for low-rpm response and, thanks to a high-pressure fuel pump, provides ample power and torque across the rev range.

Dual-map ECU

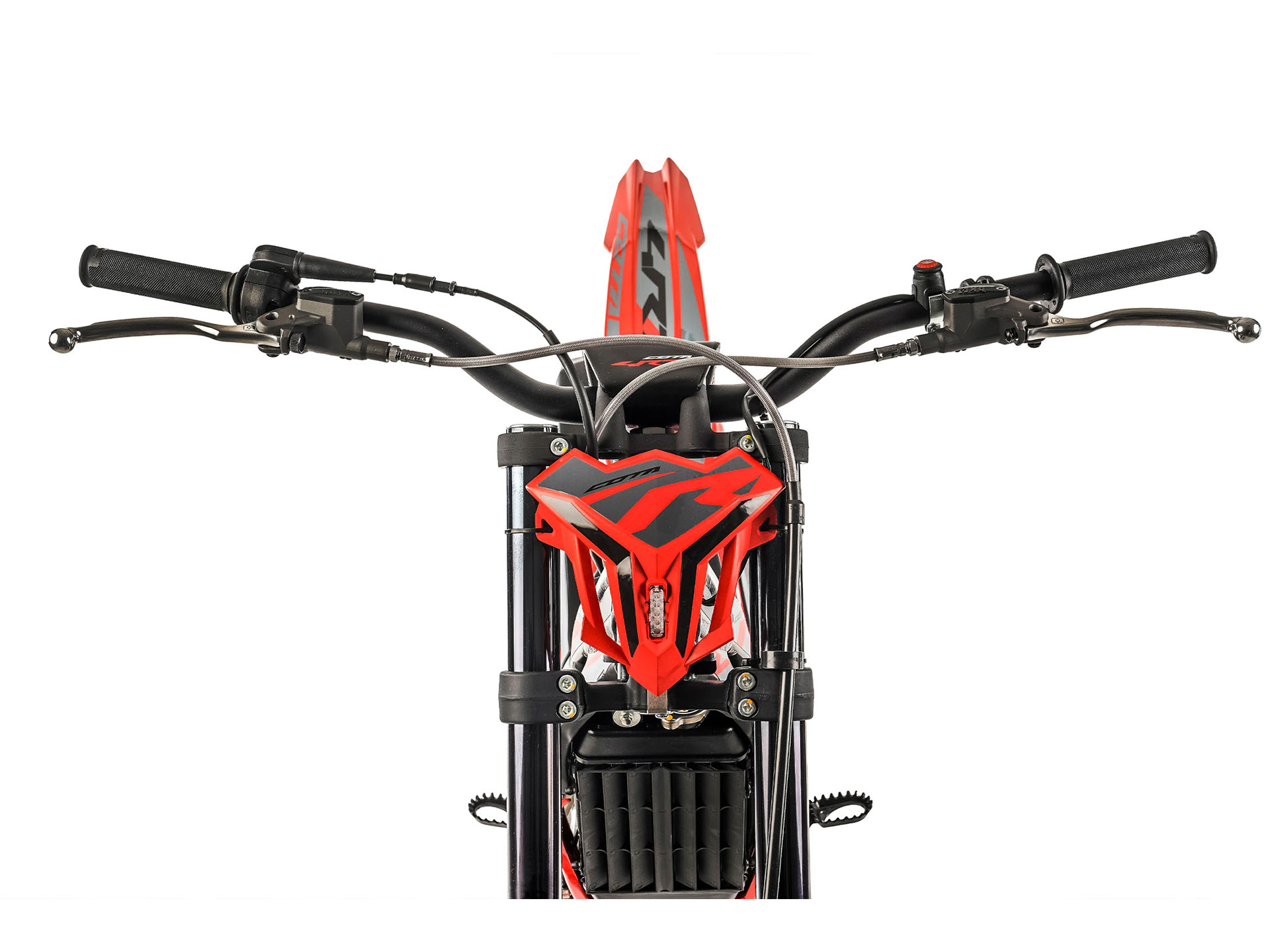

A handlebar-mounted mode switch lets you choose between two maps/modes to change engine power delivery. The bike even includes special ECU mapping, improving engine response in low and middle rpm ranges.

Handling

Chassis

An aluminum chassis with a stunning polished finish features impeccable manufacturing quality and a short rear brake pedal for more freedom of movement.

Premium suspension

An adjustable 39mm Showa® fork and Showa shock act in conjunction with the Pro-Link® rear suspension to provide precision handling and exceptional feel.

Brakes and wheels

The bike comes with a 4-piston monoblock front-brake caliper and 32-spoke wheels. The rear wheel features a central adjustment spokes system that reduces weight and allows tubeless rear tire installation.

Engineering

Advanced engineering

The 260R's Honda engine features a battery-less digital ignition system, a bank-angle sensor that turns off the ignition when the motorcycle is lying on the ground, and a magnetic kill switch.

Comfort and Convenience

Kickstart lever

A long kickstart lever helps ensure easy one-kick starts no matter where you are on the course.

Specifications:

Engine

Engine Type - 259cc liquid-cooled single-cylinder four-stroke

Bore and Stroke - 78.0mm x 54.2mm

Compression Ratio          10.5:1

Valve Train - SOHC, four-valves

Induction - Programmed Fuel Injection (PGM-FI)

Drive Train

Transmission - Close-ratio five-speed

Final Drive - #520 chain; 10T/41T

Chassis Suspension Brakes

Front Suspension - 39mm telescopic Showa® fork; 6.2-inch travel

Rear Suspension - Pro-Link® Showa® single shock; 6.7-inch travel

Front Brake - Single 185mm hydraulic disc with 4-piston caliper and sintered metal pads

Rear Brake - Single 150mm hydraulic disc with 2-piston caliper and sintered metal pads

Front Tire - Dunlop 80/100-21

Rear Tire - Dunlop 120/100-R18

Dimensions

Wheelbase - 52.0 inches

Rake - 23.0°

Trail - 2.4 inches

Seat Height - 25.6 inches

Curb Weight - 170 pounds (w/all fluids and fuel)

Fuel Capacity - 0.5 gallons

Ground Clearance - 13.2 inches

Other

Model ID - MRT260N

Available Colors - Red
