Specifications

PRICING

Price	Standard
Price - Warranty (Months)	24

ENGINE

Engine	Standard
Engine - Engine Brand Name	Twin Cam 88B®
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	85
Engine - Torque (Nm)	115
Engine - Torque RPM	3000
Engine - Cooling	Air
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	OHV
Engine - Bore (mm)	95
Engine - Bore (in)	3.75
Engine - Stroke (mm)	102
Engine - Stroke (in)	4
Engine - Displacement (cc)	1442
Engine - Displacement (ci)	88
Engine - Compression Ratio	8.9:1
Engine - Starter	Electric
Engine - Fuel Requirements	Premium
Engine - US Miles Per Gallon (Hwy)	50
Engine - US Miles Per Gallon (City)	42
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Fuel Injector	No
Carburetion - Carburetor	Yes
Carburetion - Number Of Carburetors	1
Carburetion - Carburetor Size (mm)	40
Carburetion - Carburetion Type	Carburetor

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	5
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Belt
Transmission - Gear Ratio (1)	10.11
Transmission - Gear Ratio (2)	6.96
Transmission - Gear Ratio (3)	4.95
Transmission - Gear Ratio (4)	3.86
Transmission - Gear Ratio (5)	3.15
Transmission - Reverse	No

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	95.4
Dimensions - Length (mm)	2423
Dimensions - Wheelbase (in)	66.6
Dimensions - Wheelbase (mm)	1692
Dimensions - Ground Clearance (in)	5.6
Dimensions - Ground Clearance (mm)	142
Dimensions - Length (ft)	7.95
Dimensions - Length (ft/ft)	7
Dimensions - Length (ft/in)	11.4
Weight	Standard
Weight - Dry Weight (lbs)	645
Weight - Dry Weight (kg)	293
Capacities	Standard
Capacities - Fuel Capacity (gal)	4.9
Capacities - Fuel Capacity (l)	19
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.24

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver and Passenger
Exterior Covers	Standard
Front Fender	Standard
Rear Fender	Standard
Rear Fender Rail	Standard
Stand	Standard
Stand - Stand Type	Kick
Handlebars	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Central Suspension Strut	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Steel

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Chromed	No
Tires	Standard
Tires - Tire Brand	Dunlop®
Tires - Front Tire Aspect Ratio	90
Tires - Front Tire Speed Rating	H
Tires - Front Wheel Diameter	21
Tires - Rear Tire Width	160
Tires - Rear Tire Aspect Ratio	70
Tires - Rear Tire Speed Rating	V
Tires - Rear Wheel Diameter	17
Tires - Front Tire (Full Spec)	Dunlop MH90-21 54H
Tires - Rear Tire (Full Spec)	Dunlop 160/70 VR17

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Disc
Brakes - Front Brake Diameter (in)	11.5
Brakes - Front Brake Diameter (mm)	292
Brakes - Rear Brake Type	Disc
Brakes - Rear Brake Diameter (in)	11.5
Brakes - Rear Brake Diameter (mm)	292

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Location	Driver and Passenger
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	26
Seat Specifications - Seat Height (mm)	660
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard

INSTRUMENTATION

Digital Instrumentation	Standard
Trip Odometer	Standard

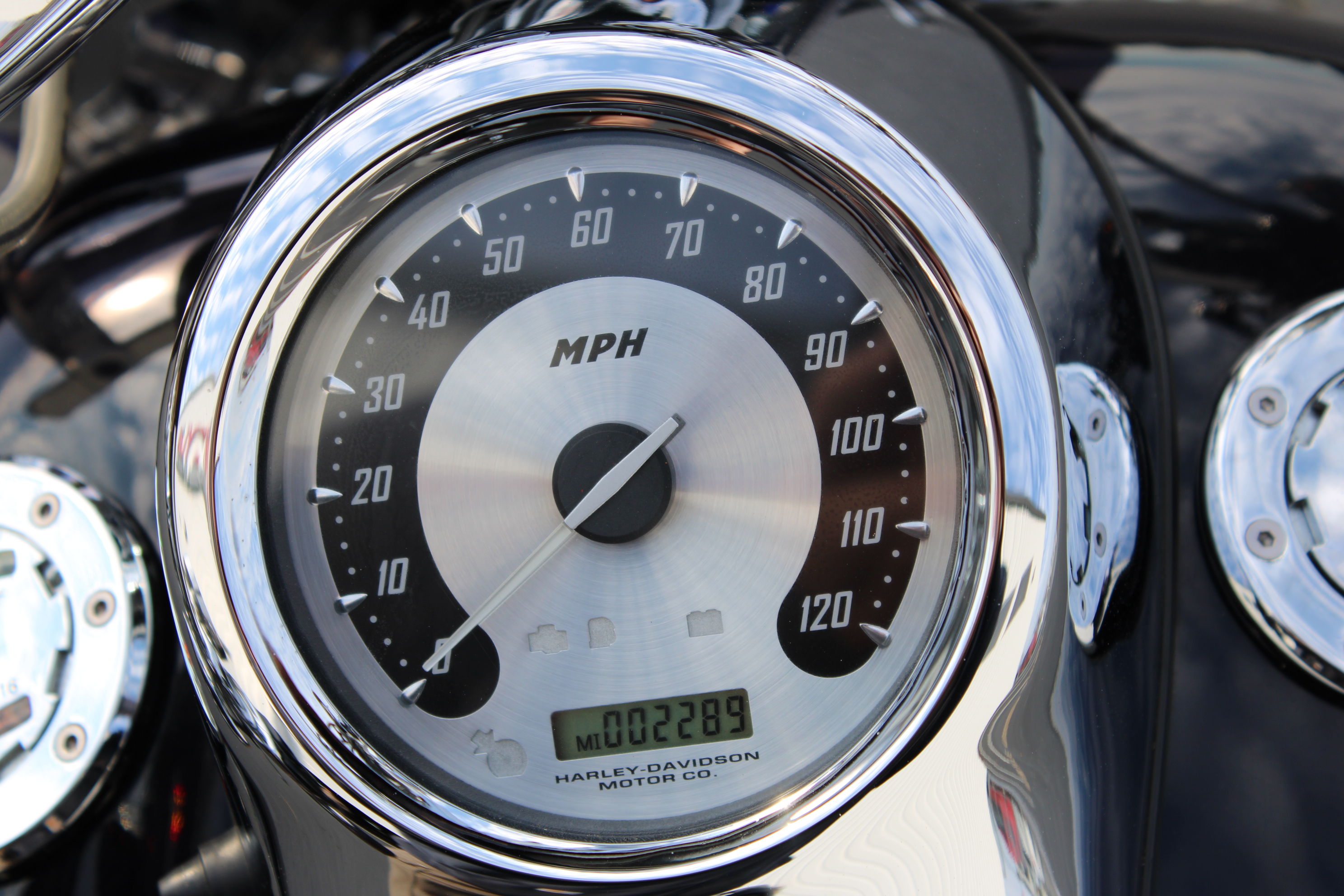

Speedometer	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Service Reminder	Standard

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors

Standard

PAINT & FINISH

Paint

Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
