Specifications

PRICING

Price	Standard
Price - Warranty (Months)	36
Price - Warranty (Condition)	Limited
Price - Basic Warranty (Miles)	36000

ENGINE

Engine	Standard
Engine - Engine Type	Horizontal In-line
Engine - Cylinders	4
Engine - Engine Stroke	4-Stroke
Engine - Horsepower (bhp)	152
Engine - Horsepower (kW)	113.4
Engine - Horsepower RPM	9500
Engine - Torque (Ft Lbs)	96
Engine - Torque (Nm)	130
Engine - Torque RPM	7750
Engine - Cooling	Liquid
Engine - Valves	16
Engine - Valves Per Cylinder	4
Engine - Valve Configuration	DOHC
Engine - Bore (mm)	79
Engine - Bore (in)	3.11
Engine - Stroke (mm)	59
Engine - Stroke (in)	2.32
Engine - Displacement (cc)	1157
Engine - Displacement (ci)	70.6
Engine - Compression Ratio	13.0:1
Engine - Starter	Electric
Engine - Fuel Requirements	Premium
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Shaft
Transmission - Gear Ratio (1)	2.52
Transmission - Gear Ratio (2)	1.84
Transmission - Gear Ratio (3)	1.45
Transmission - Gear Ratio (4)	1.28
Transmission - Gear Ratio (5)	1.14
Transmission - Gear Ratio (6)	1.01
Transmission - Reverse	No
Transmission - Final Drive Ratio	2.82

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	91.3
Dimensions - Length (mm)	2319
Dimensions - Width (in)	39
Dimensions - Width (mm)	990.6
Dimensions - Wheelbase (in)	61.9
Dimensions - Wheelbase (mm)	1572
Dimensions - Ground Clearance (in)	4.6
Dimensions - Ground Clearance (mm)	116.8
Dimensions - Length (ft)	7.61
Dimensions - Length (ft/ft)	7
Dimensions - Length (ft/in)	7.3
Weight	Standard
Weight - Dry Weight (lbs)	549
Weight - Dry Weight (kg)	249
Weight - Wet Weight (lbs)	622
Weight - Wet Weight (kg)	282.1
Weight - Payload Capacity (lbs)	992
Weight - Payload Capacity (kgs)	450
Capacities	Standard
Capacities - Fuel Capacity (gal)	6.3
Capacities - Fuel Capacity (l)	23.8
Capacities - Fuel Capacity Reserve (gal)	1
Capacities - Fuel Capacity Reserve (l)	3.8
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.11

EXTERIOR

Construction	Standard
Construction - Frame	Aluminum
Construction - Body Material	Plastic
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver and Passenger
Foot Pegs - Adjustable	No
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Fork Guards	No
Exterior Guards - Saddle Bag Guard	No
Exterior Guards - Belt Guard	No
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Front Fender	Standard
Rear Fender	Standard
Stand	Standard
Stand - Stand Type	Center / Kick
Lower Fairing	Standard
Spoiler	Standard

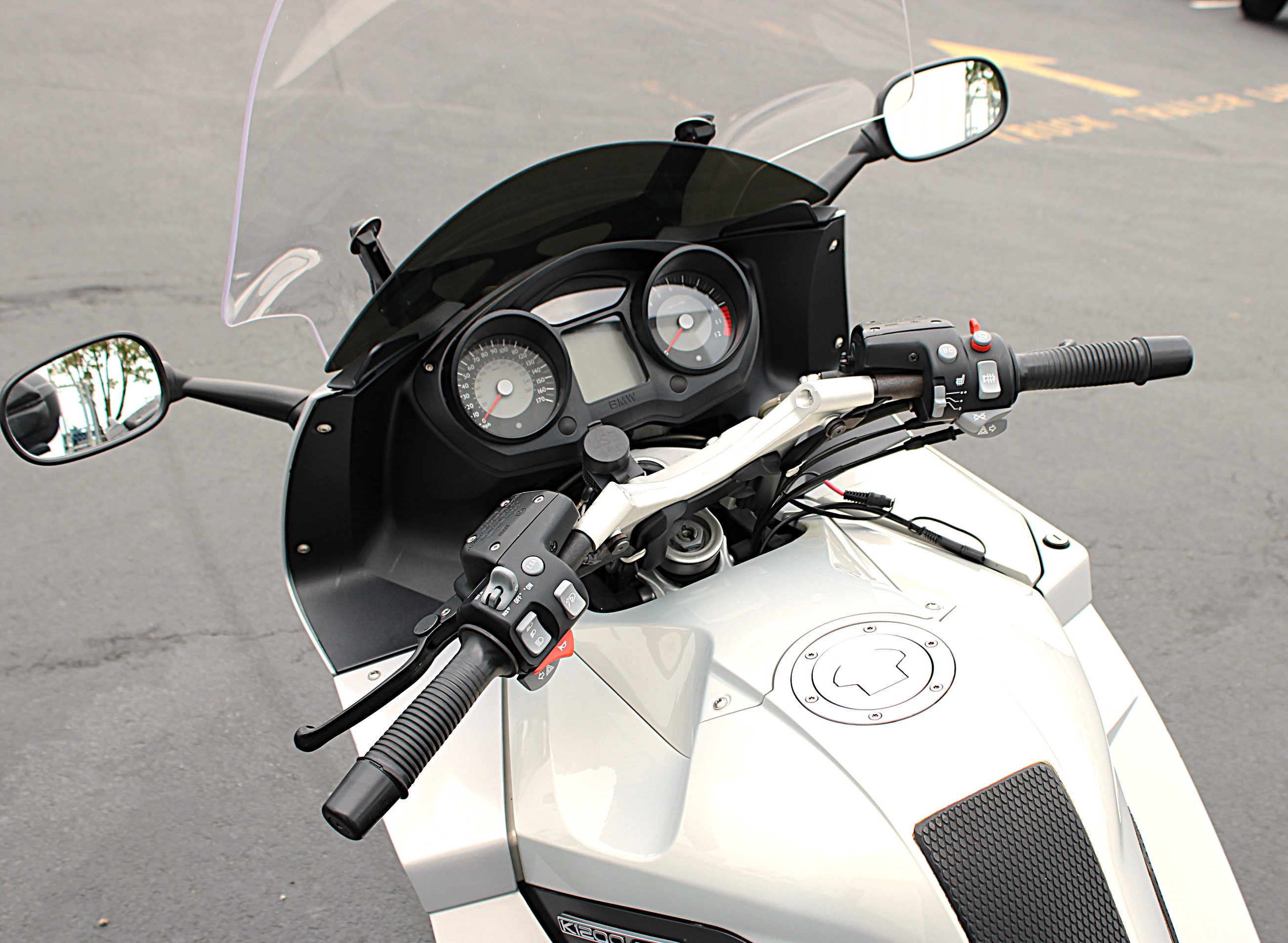

Handlebars	Standard
Upper Fairing	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Girder
Front Suspension - Front Travel (in)	4.5
Front Suspension - Front Travel (mm)	115
Front Suspension - Front Adjustable Fork Pre-Load	No
Front Suspension - Front Adjustable Rebound Damping	No
Front Suspension - Front Central Suspension Strut	Yes
Front Suspension - Front Suspension Brand Name	Duolever
Front Suspension - Steering Damper	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Single Sided Swing Arm
Rear Suspension - Rear Travel (in)	5.3
Rear Suspension - Rear Travel (mm)	135
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	Yes
Rear Suspension - Number Rear Shock Absorbers	1
Rear Suspension - Rear Suspension Brand Name	Paralever
Rear Suspension - Rear Suspension Material	Aluminum
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Tube / Tubeless	Tubeless
Wheels - Front Wheel Width (in)	3.5
Wheels - Rear Wheel Width (in)	5.5
Wheels - Chromed	No
Tires	Standard
Tires - Front Tire Width	120
Tires - Front Tire Aspect Ratio	70
Tires - Front Wheel Diameter	17
Tires - Rear Tire Width	180
Tires - Rear Tire Aspect Ratio	55
Tires - Rear Wheel Diameter	17
Tires - Front Tire (Full Spec)	120/70 ZR17
Tires - Rear Tire (Full Spec)	180/55 ZR17

BRAKES

Brakes	Standard
Brakes - Brake Brand Name	EVO
Brakes - Front Brake Type	Dual Disc
Brakes - Front Brake Diameter (in)	12.6
Brakes - Front Brake Diameter (mm)	320
Brakes - Rear Brake Type	Disc
Brakes - Rear Brake Diameter (in)	11.6
Brakes - Rear Brake Diameter (mm)	294.6
Anti-Lock Brakes	Standard
Linked Brake System Front to Rear	Standard

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	Yes
Seat - Seat Material	Vinyl
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	32.3
Seat Specifications - Seat Height (mm)	820.4
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard

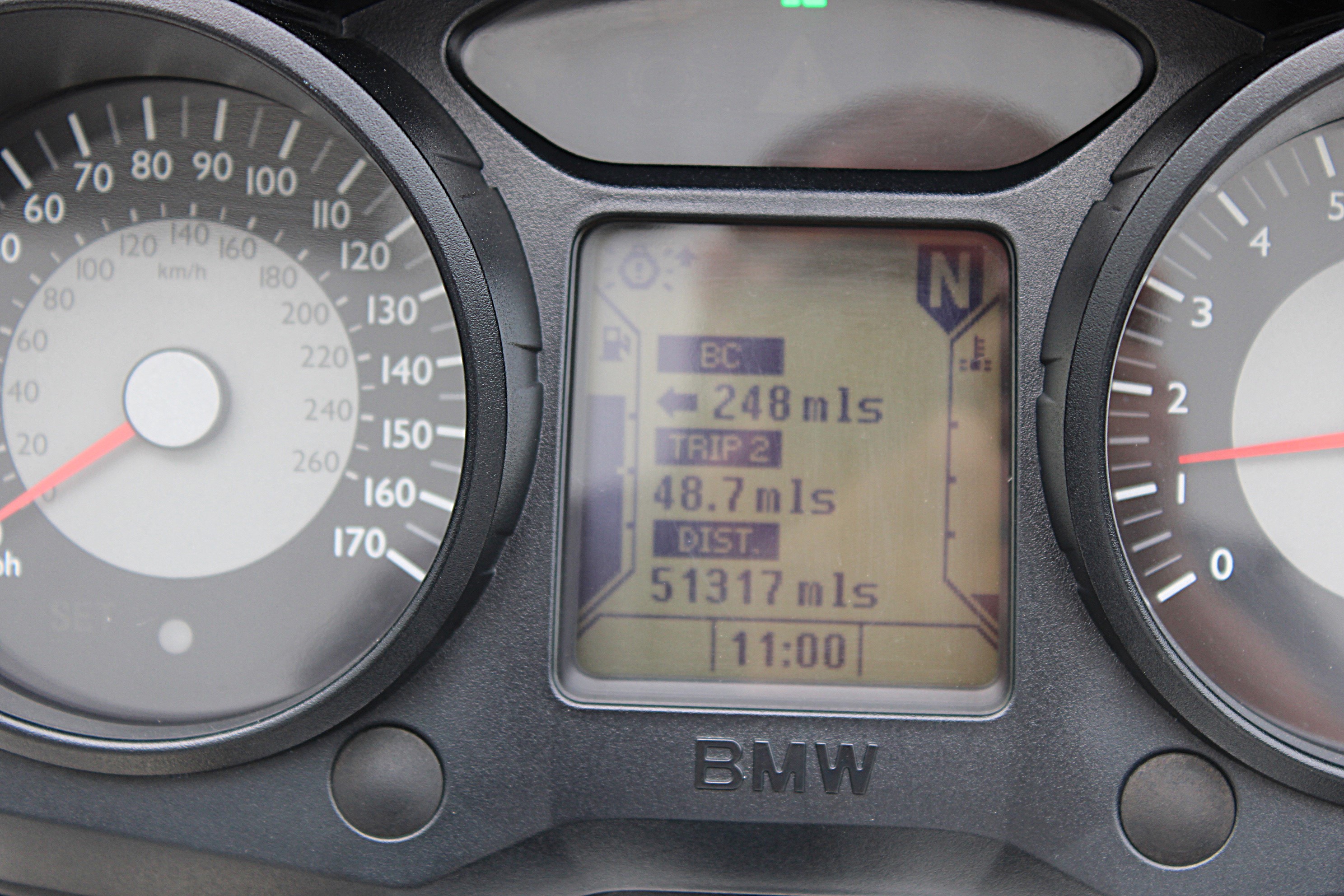

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Tachometer	Standard
Trip Odometer	Standard
Trip Computer	Standard
Speedometer	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Gauge
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Light
Service Reminder	Standard

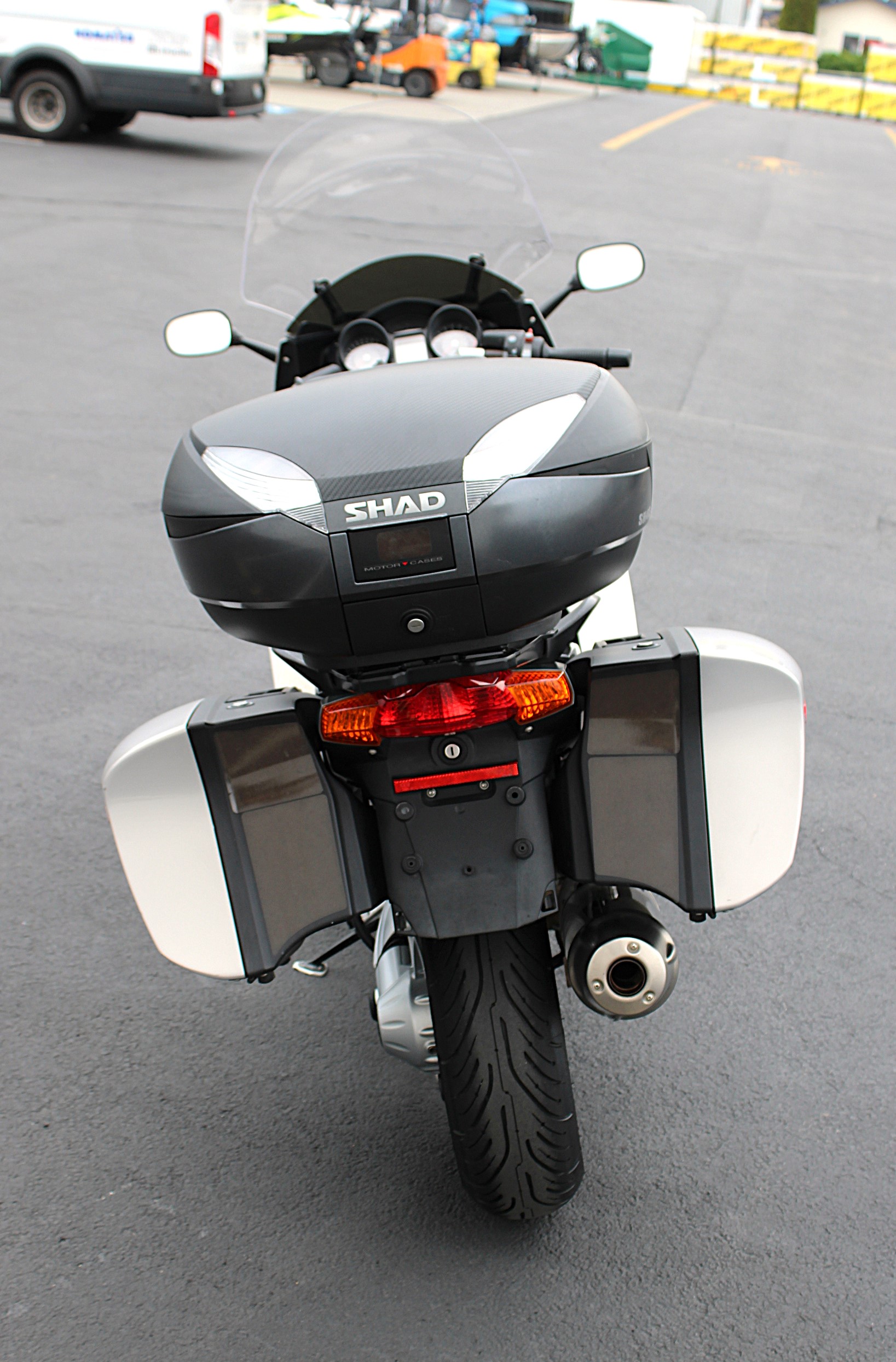

STORAGE

Hard Side Cases	Standard
Hard Side Cases - Side Case Material	Vinyl
Hard Side Cases - Number Of Side Cases	2
Hard Side Cases - Location	Left and Right Side
Side Storage Mount	Standard
Lockable Storage	Standard
Rear Rack	Standard

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors	Standard

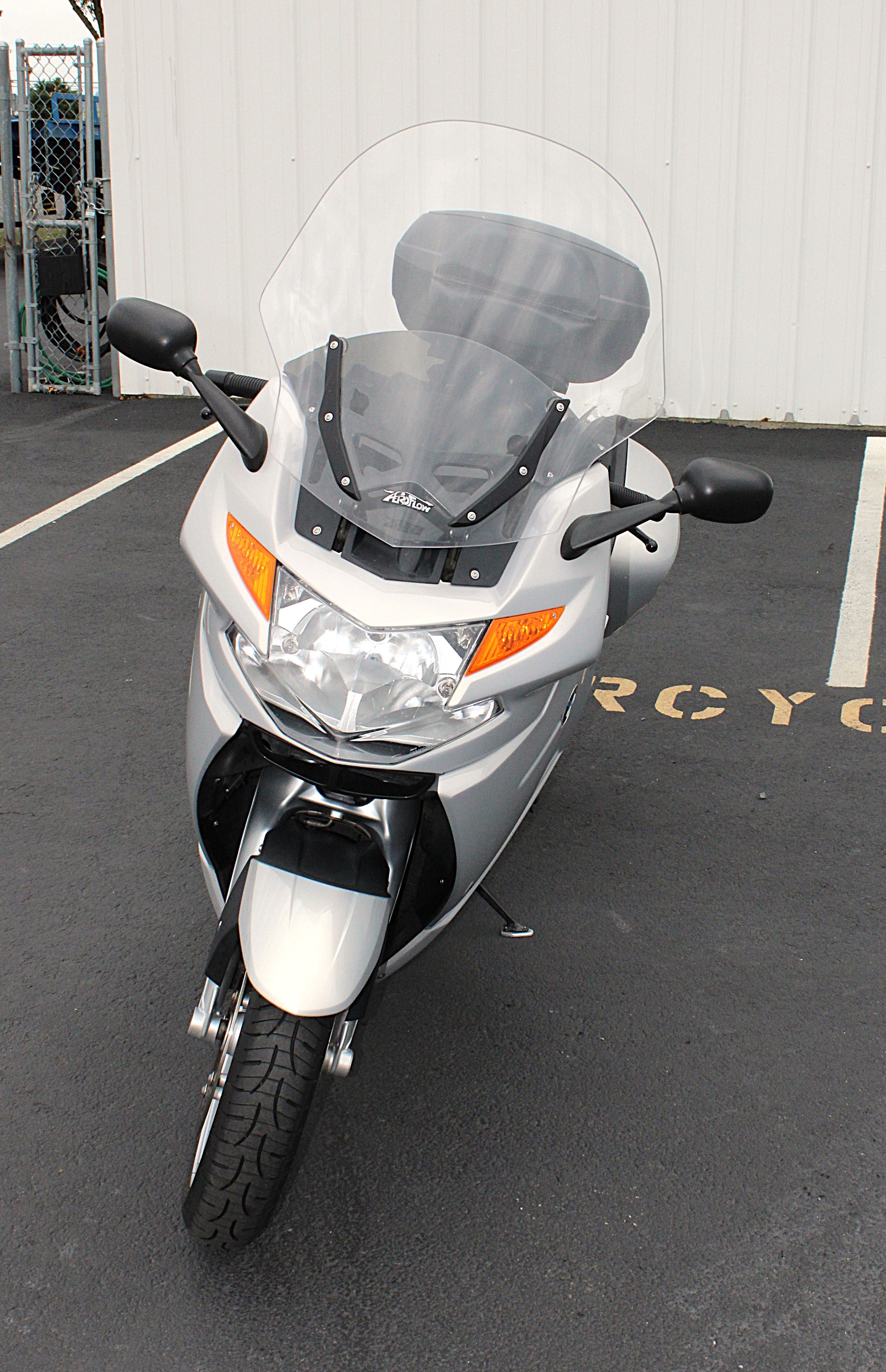

Windshield	Standard
Windshield - Windshield Lowers	No
Windshield - Height Adjustable	Yes
Windshield - Tinted	No
Windshield - Height	Mid

CONVENIENCE

Engine Immobilizer	Standard
Power Outlet	Standard
Adjustable Handlebars	Standard
Adjustable Levers	Standard

PAINT & FINISH

Paint

Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

MOUNTS

Side Case Mount	Standard
Windshield Mounts	Standard

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
