Specifications

PRICING

Price	Standard
Price - Warranty (Months)	24
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Brand Name	Twin Cam 96™
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	92.6
Engine - Torque (Nm)	125.6
Engine - Torque RPM	3500
Engine - Cooling	Air
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	OHV - Pushrod
Engine - Bore (mm)	95.3
Engine - Bore (in)	3.75
Engine - Stroke (mm)	111.3
Engine - Stroke (in)	4.38
Engine - Displacement (cc)	1584
Engine - Displacement (ci)	96
Engine - Compression Ratio	9.2:1
Engine - Starter	Electric
Engine - Fuel Requirements	Premium
Engine - US Miles Per Gallon (Hwy)	54
Engine - US Miles Per Gallon (City)	35
Engine - CAN Liters Per Kilometer (Hwy)	4.4
Engine - CAN Liters Per Kilometer (City)	6.7
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Belt
Transmission - Primary Drive (Engine / Transmission)	Chain
Transmission - Gear Ratio (1)	9.59
Transmission - Gear Ratio (2)	6.65
Transmission - Gear Ratio (3)	4.94
Transmission - Gear Ratio (4)	4
Transmission - Gear Ratio (5)	3.41
Transmission - Gear Ratio (6)	2.88
Transmission - Reverse	No
Heel Toe Shifter	Standard

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	94.2
Dimensions - Length (mm)	2392.7
Dimensions - Wheelbase (in)	63.5
Dimensions - Wheelbase (mm)	1612.9
Dimensions - Ground Clearance (in)	5.1
Dimensions - Ground Clearance (mm)	129.5
Dimensions - Length (ft)	7.85
Dimensions - Length (ft/ft)	7
Dimensions - Length (ft/in)	10.2
Weight	Standard
Weight - Dry Weight (lbs)	773
Weight - Dry Weight (kg)	350.6
Weight - Wet Weight (lbs)	810
Weight - Wet Weight (kg)	367.4
Capacities	Standard
Capacities - Fuel Capacity (gal)	6
Capacities - Fuel Capacity (l)	22.7
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.05

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Floor Boards	Standard
Floor Boards - Floor Board Location	Driver and Passenger
Hand Grips	Standard
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Chassis Protectors	Yes
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Engine Case Guard	Yes
Exterior Guards - Fork Guards	Yes
Exterior Guards - Saddle Bag Guard	Yes
Exterior Guards - Tank Guard	No
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Heel Guards	No
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Side Cover	Yes
Front Fender	Standard
Front Fender Trim	Standard
Rear Fender	Standard
Rear Fender Trim	Standard
Tank Divider	Standard
Stand	Standard
Stand - Stand Type	Kick
Handlebars	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Central Suspension Strut	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	Yes
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Air Adjustable	Yes

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Steel
Wheels - Chromed	Yes
Tires	Standard
Tires - Tire Brand	Dunlop®
Tires - Front Tire Width	130
Tires - Front Tire Aspect Ratio	80
Tires - Front Tire Speed Rating	65H
Tires - Front Wheel Diameter	17
Tires - Rear Tire Width	180
Tires - Rear Tire Aspect Ratio	65
Tires - Rear Tire Speed Rating	81H
Tires - Rear Wheel Diameter	16
Tires - Front Tire (Full Spec)	Dunlop® 130/80 R17 65H
Tires - Rear Tire (Full Spec)	Dunlop® 180/65 R16 81H

BRAKES

Brakes	Standard
Brakes - Brake Brand Name	Brembo®
Brakes - Front Brake Type	Dual Disc
Brakes - Front Brake Diameter (in)	11.5
Brakes - Front Brake Diameter (mm)	292.1
Brakes - Rear Brake Type	Disc
Brakes - Rear Brake Diameter (in)	11.5
Brakes - Rear Brake Diameter (mm)	292.1

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Leather
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	26.9
Seat Specifications - Seat Height (mm)	683.3
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Trip Odometer	Standard

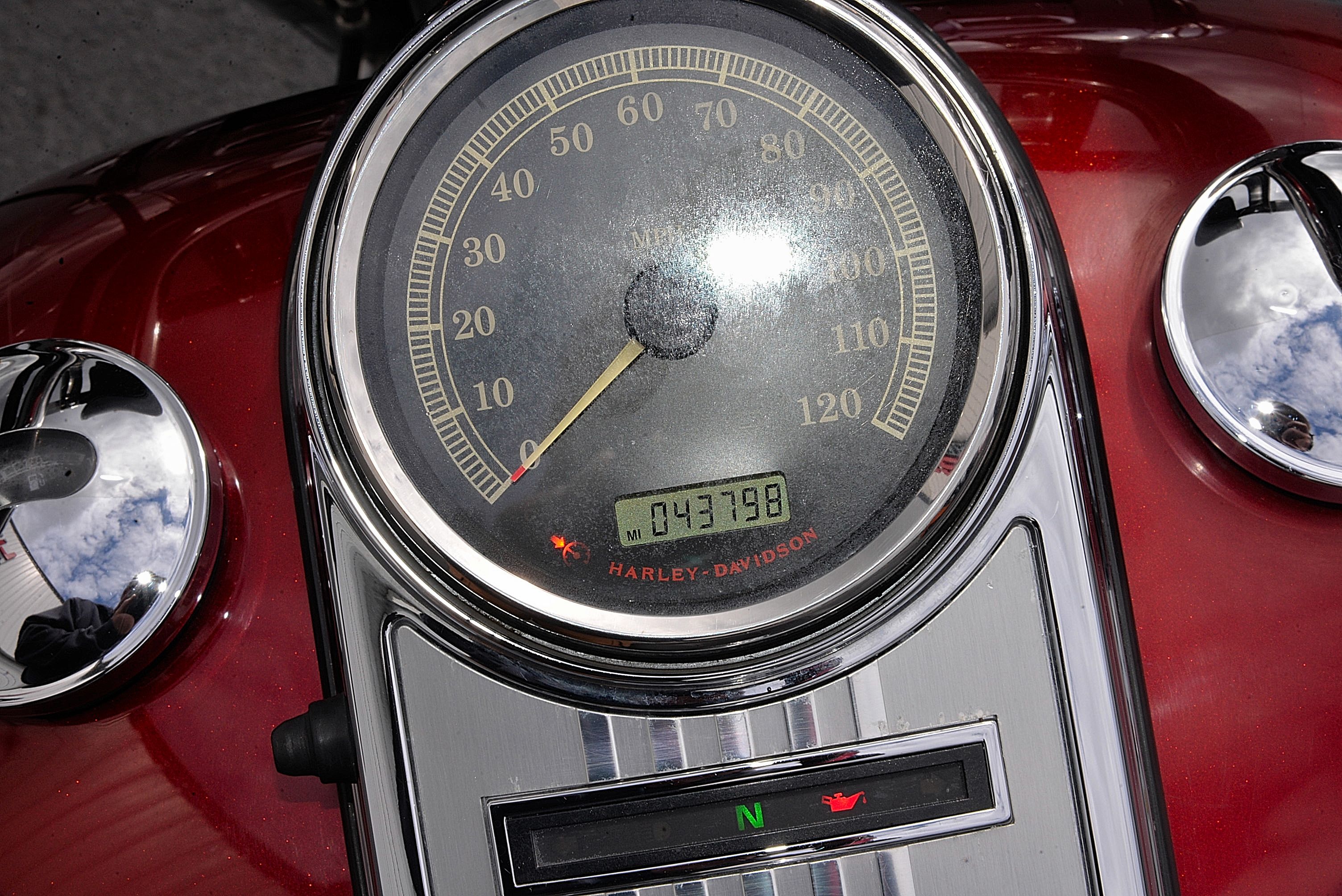

Speedometer	Standard
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge
Service Reminder	Standard

STORAGE

Hard Side Cases	Standard
Hard Side Cases - Side Case Material	Leather
Hard Side Cases - Number Of Side Cases	2
Hard Side Cases - Location	Left and Right Side
Side Storage Mount	Standard
Lockable Storage	Standard
Leather Storage	Standard
Helmet Storage	Standard

LIGHTS

Headlight Mounting Bar	Standard
Passing Lamps	Standard
Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors	Standard
Windshield	Standard
Windshield - Windshield Brand	Lexan®
Windshield - Windshield Lowers	No
Windshield - Height Adjustable	No
Windshield - Tinted	No
Windshield - Height	High

CONVENIENCE

Power Outlet	Standard
Cruise Control	Standard

PAINT & FINISH

Paint

Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

MOUNTS

Side Case Mount	Standard
Windshield Mounts	Standard

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
