Specifications

PRICING

Price	Standard
Price - Warranty (Months)	24
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Brand Name	Twin Cam 103™
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	100
Engine - Torque (Nm)	135.6
Engine - Torque RPM	3250
Engine - Cooling	Air
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	OHV - Pushrod
Engine - Bore (mm)	98.5
Engine - Bore (in)	3.88
Engine - Stroke (mm)	111.3
Engine - Stroke (in)	4.38
Engine - Displacement (cc)	1687.9
Engine - Displacement (ci)	103
Engine - Compression Ratio	9.6:1
Engine - Starter	Electric
Engine - Fuel Requirements	Premium
Engine - US Miles Per Gallon (Combined)	42
Engine - CAN Liters Per Kilometer (Combined)	5.6
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Belt
Transmission - Primary Drive (Engine / Transmission)	Chain
Transmission - Gear Ratio (1)	9.59
Transmission - Gear Ratio (2)	6.65
Transmission - Gear Ratio (3)	4.94
Transmission - Gear Ratio (4)	4
Transmission - Gear Ratio (5)	3.41
Transmission - Gear Ratio (6)	2.86
Transmission - Reverse	No
Heel Toe Shifter	Standard

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	98.6
Dimensions - Length (mm)	2504.4
Dimensions - Wheelbase (in)	63.5
Dimensions - Wheelbase (mm)	1612.9
Dimensions - Ground Clearance (in)	5.1
Dimensions - Ground Clearance (mm)	129.5
Dimensions - Length (ft)	8.22
Dimensions - Length (ft/ft)	8
Dimensions - Length (ft/in)	2.6
Weight	Standard
Weight - Dry Weight (lbs)	857
Weight - Dry Weight (kg)	388.7
Weight - Wet Weight (lbs)	901
Weight - Wet Weight (kg)	408.7
Capacities	Standard
Capacities - Fuel Capacity (gal)	6
Capacities - Fuel Capacity (l)	22.7
Performance	Standard
Performance - Engine Displacement to Weight (cc)	1.97

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Floor Boards	Standard
Floor Boards - Floor Board Location	Driver and Passenger
Hand Grips	Standard
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Chassis Protectors	Yes
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Engine Case Guard	Yes
Exterior Guards - Saddle Bag Guard	Yes
Exterior Guards - Tank Guard	No
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Radiator Cover	No
Exterior Covers - Side Cover	Yes
Front Fender	Standard
Front Fender Trim	Standard
Front Fender Rail	Standard
Rear Fender	Standard
Rear Fender Trim	Standard
Tank Divider	Standard
Tank Divider - Tank Divider Material	Leather
Tank Divider - Pocket	Yes
Stand	Standard
Stand - Stand Type	Kick
Lower Fairing	Standard
Handlebars	Standard
Upper Fairing	Standard
Wind Deflector	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Adjustable Rebound Damping	Yes
Front Suspension - Front Central Suspension Strut	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	Yes
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Air Adjustable	Yes

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Chromed	Yes
Tires	Standard
Tires - Tire Brand	Dunlop®
Tires - Front Tire Width	130
Tires - Front Tire Aspect Ratio	80
Tires - Front Tire Speed Rating	65H
Tires - Front Wheel Diameter	17
Tires - Rear Tire Width	180
Tires - Rear Tire Aspect Ratio	65
Tires - Rear Tire Speed Rating	81H
Tires - Rear Wheel Diameter	16
Tires - Front Tire (Full Spec)	Dunlop® 130/80 R17 65H
Tires - Rear Tire (Full Spec)	Dunlop® 180/65 R16 81H

BRAKES

Brakes	Standard
Brakes - Brake Brand Name	Brembo®
Brakes - Front Brake Type	Dual Hydraulic Disc
Brakes - Front Brake Diameter (in)	11.5
Brakes - Front Brake Diameter (mm)	292.1
Brakes - Rear Brake Type	Hydraulic Disc
Brakes - Rear Brake Diameter (in)	11.5
Brakes - Rear Brake Diameter (mm)	292.1
Anti-Lock Brakes	Standard
Linked Brake System Front to Rear	Standard

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Leather
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	27.3
Seat Specifications - Seat Height (mm)	693.4
Seat Specifications - Number Of Seats	2
Seat Backrest	Standard
Seat Backrest - Backrest Logo Plate	No
Seat Backrest - Backrest Type	Fixed
Seat Backrest - Backrest Location	Passenger
Seat Backrest - Lumbar Adjustment	Yes
Grab Rail or Strap	Standard

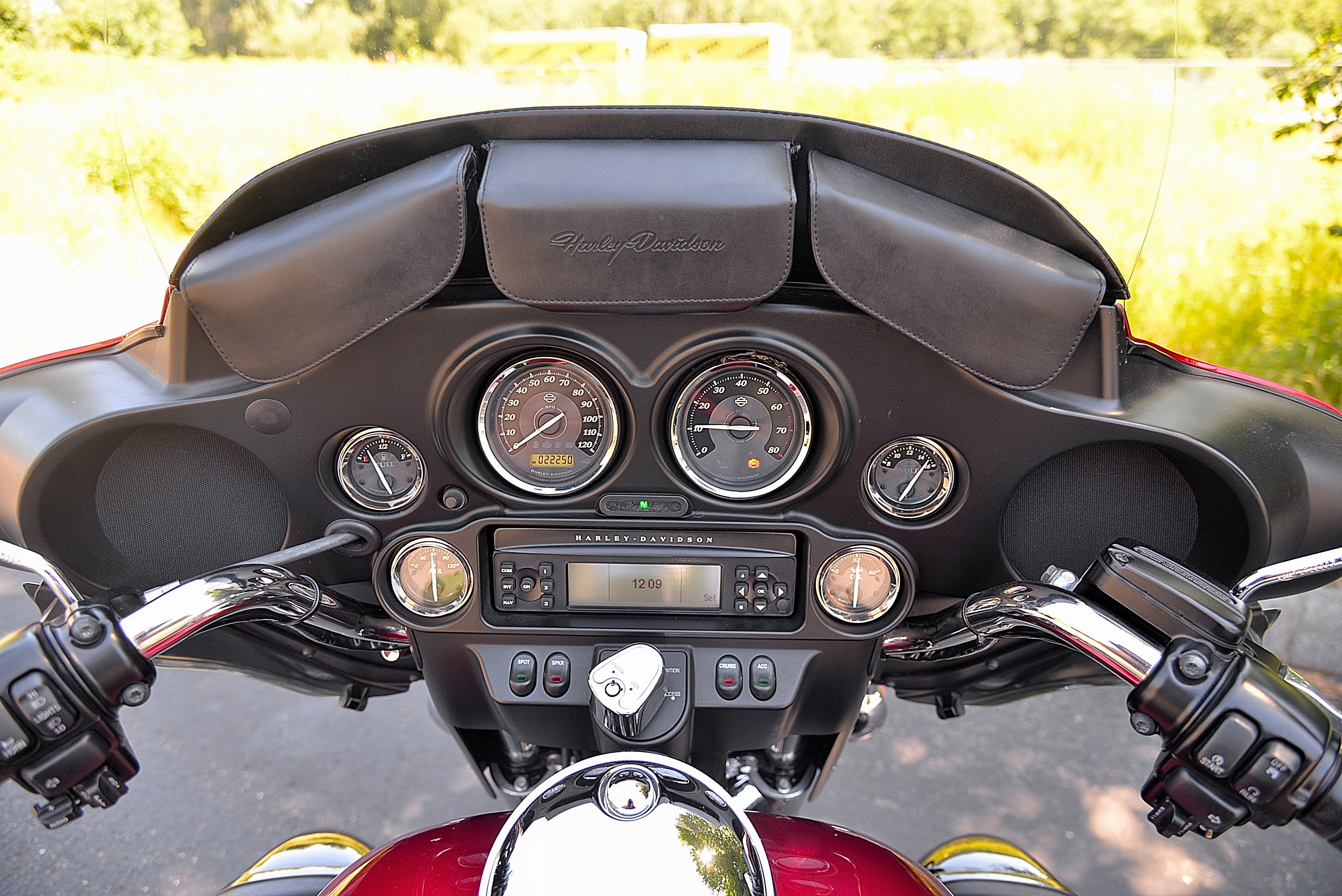

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Tachometer	Standard
Trip Odometer	Standard
Oil Pressure Gauge	Standard

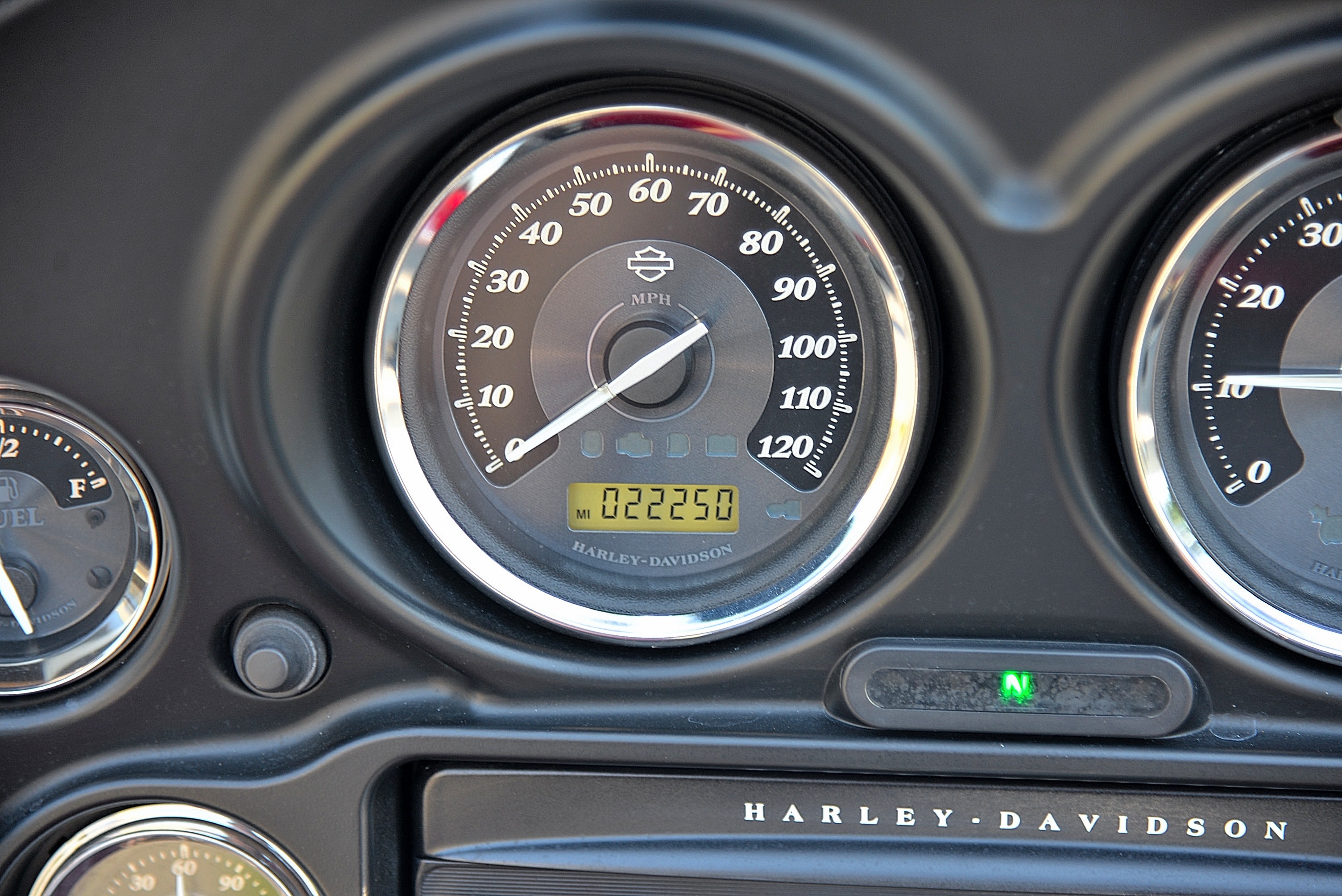

Speedometer	Standard
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge
Service Reminder	Standard

STORAGE

Hard Side Cases	Standard
Hard Side Cases - Side Case Material	Vinyl
Hard Side Cases - Number Of Side Cases	2
Hard Side Cases - Location	Left and Right Side
Side Storage Mount	Standard
Lockable Storage	Standard
Rear Rack	Standard
Rear Rack Storage	Standard
Rear Rack Storage - Rear Rack Storage Material	Hard Vinyl
Rear Rack Storage - Rear Rack Storage Trim	Plain
Bag Liners	Standard
Bag Liners - Bag Liner Material	Vinyl
Helmet Storage	Standard
Glove Box / Dash Storage	Standard

LIGHTS

Headlight Mounting Bar	Standard
Passing Lamps	Standard
Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors	Standard

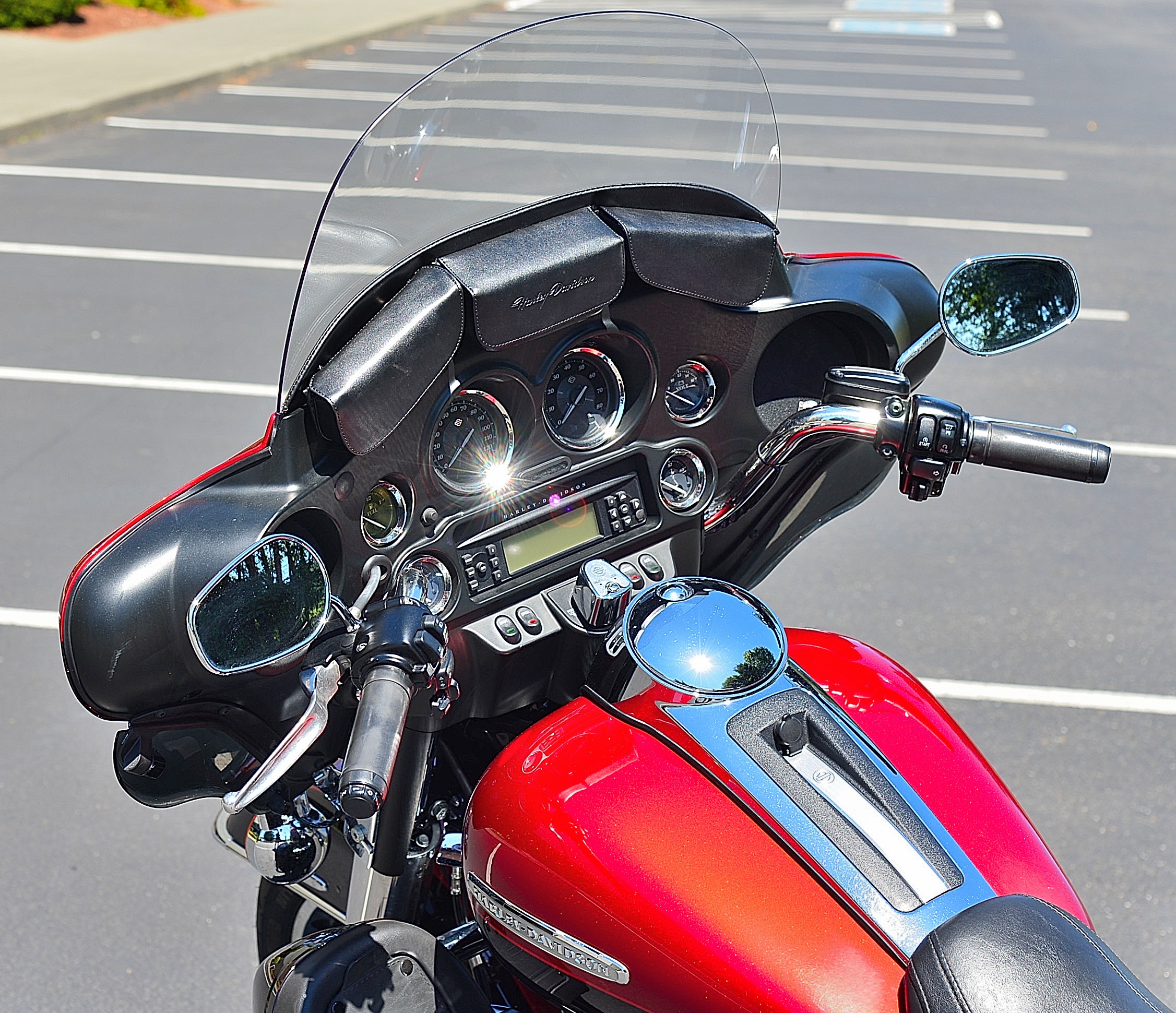

Windshield	Standard
Windshield - Windshield Brand	Lexan®
Windshield - Windshield Lowers	No
Windshield - Height Adjustable	No
Windshield - Tinted	No
Windshield - Height	High

CONVENIENCE

Engine Immobilizer	Standard
Engine Immobilizer - Engine Immobilizer Brand	Digitally Encoded Security System™ (DESS)
Heated Hand Grips	Standard
Heated Hand Grips - Heated Hand Grip Location	Driver
Heated Hand Grips - Adjustable	Yes
Power Outlet	Standard
Cruise Control	Standard

PAINT & FINISH

Paint

Standard

AUDIO & COMMUNICATION

Radio	Standard
Radio - Brand Name	Harman/Kardon
Speakers	Standard
Speakers - Number Of Speakers	4
CD Player	Standard
CD Player - Number Of Discs	1
CB Radio	Standard
Intercom	Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

MOUNTS

Side Case Mount	Standard
Tool Bag Mount	Standard
Windshield Mounts	Standard

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
