Specifications

PRICING

Price	Standard
Price - Warranty (Months)	12
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Brand Name	LC4
Engine - Engine Type	Single-Cylinder
Engine - Cylinders	1
Engine - Engine Stroke	4-Stroke
Engine - Horsepower (bhp)	67
Engine - Horsepower (kW)	50
Engine - Cooling	Liquid
Engine - Valves	4
Engine - Valves Per Cylinder	4
Engine - Valve Configuration	OHV
Engine - Bore (mm)	102
Engine - Bore (in)	4.02
Engine - Stroke (mm)	84.5
Engine - Stroke (in)	3.33
Engine - Displacement (cc)	690
Engine - Displacement (ci)	42.1
Engine - Compression Ratio	12.6:1
Engine - Starter	Electric
Engine - Fuel Requirements	Premium
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Carburetion Brand	Keihin
Carburetion - Fuel Injector	Yes
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Overdrive	Yes
Transmission - Primary Drive (Rear Wheel)	Chain
Transmission - Gear Ratio (1)	2.5
Transmission - Gear Ratio (2)	1.75
Transmission - Gear Ratio (3)	1.33
Transmission - Gear Ratio (4)	1.1
Transmission - Gear Ratio (5)	0.96
Transmission - Gear Ratio (6)	0.87
Transmission - Final Drive Ratio	2.19

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Wheelbase (in)	57.7
Dimensions - Wheelbase (mm)	1466
Dimensions - Ground Clearance (in)	7.6
Dimensions - Ground Clearance (mm)	192
Weight	Standard
Weight - Dry Weight (lbs)	329.6
Weight - Dry Weight (kg)	149.5
Capacities	Standard
Capacities - Fuel Capacity (gal)	3.7
Capacities - Fuel Capacity (l)	14
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.09

EXTERIOR

Construction	Standard
Construction - Frame	Chromium Molybdenum
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver and Passenger
Exterior Guards	Standard
Exterior Guards - Chain Guard	Yes
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Engine Case Guard	No
Exterior Guards - Fork Guards	Yes
Exterior Guards - Saddle Bag Guard	No
Exterior Guards - Belt Guard	No
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Heel Guards	No
Exterior Guards - Exhaust Guard	Yes
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Front Fender	Standard
Rear Fender	Standard
Stand	Standard
Stand - Stand Type	Kick
Spoiler	Standard
Handlebars	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Inverted Fork
Front Suspension - Front Suspension Size (in)	1.7
Front Suspension - Front Suspension Size (mm)	43
Front Suspension - Front Travel (in)	5.3
Front Suspension - Front Travel (mm)	135
Front Suspension - Front Adjustable Fork Pre-Load	Yes
Front Suspension - Front Adjustable Rebound Damping	Yes
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Front Suspension Brand Name	WP
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Travel (in)	5.3
Rear Suspension - Rear Travel (mm)	135
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	Yes
Rear Suspension - Number Rear Shock Absorbers	1
Rear Suspension - Rear Suspension Brand Name	WP
Rear Suspension - Rear Suspension Material	Aluminum
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Chromed	No
Tires	Standard
Tires - Tire Brand	Michelin®
Tires - Front Tire Width	120
Tires - Front Tire Aspect Ratio	70
Tires - Front Tire Speed Rating	58W
Tires - Front Wheel Diameter	17
Tires - Rear Tire Width	160
Tires - Rear Tire Aspect Ratio	60
Tires - Rear Tire Speed Rating	69W
Tires - Rear Wheel Diameter	17
Tires - Front Tire (Full Spec)	Michelin® Pilot Power 120/70 R17 58W
Tires - Rear Tire (Full Spec)	Michelin® Pilot Power 160/60 R17 69W

BRAKES

Brakes	Standard
Brakes - Brake Brand Name	Brembo®
Brakes - Front Brake Type	Disc
Brakes - Front Brake Diameter (in)	12.6
Brakes - Front Brake Diameter (mm)	320
Brakes - Rear Brake Type	Disc
Brakes - Rear Brake Diameter (in)	9.5
Brakes - Rear Brake Diameter (mm)	240
Anti-Lock Brakes	Standard
Linked Brake System Front to Rear	Standard

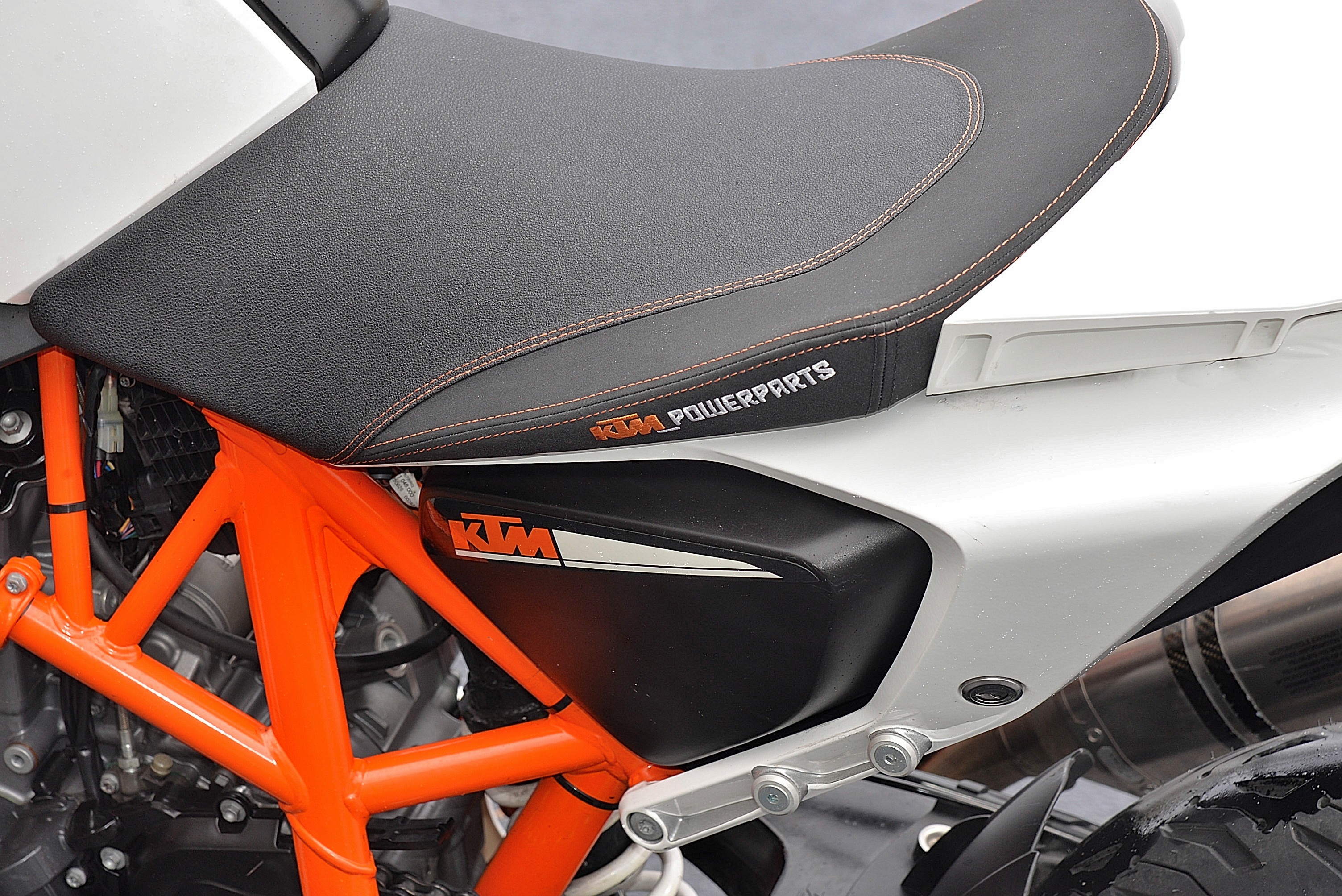

SEATS

Seat	Standard
Seat - Seat Type	Two-Piece
Seat - Adjustable	No
Seat - Seat Material	Vinyl
Seat - Seat Location	Driver and Passenger
Seat - Folding	Yes
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	32.9
Seat Specifications - Seat Height (mm)	835
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard

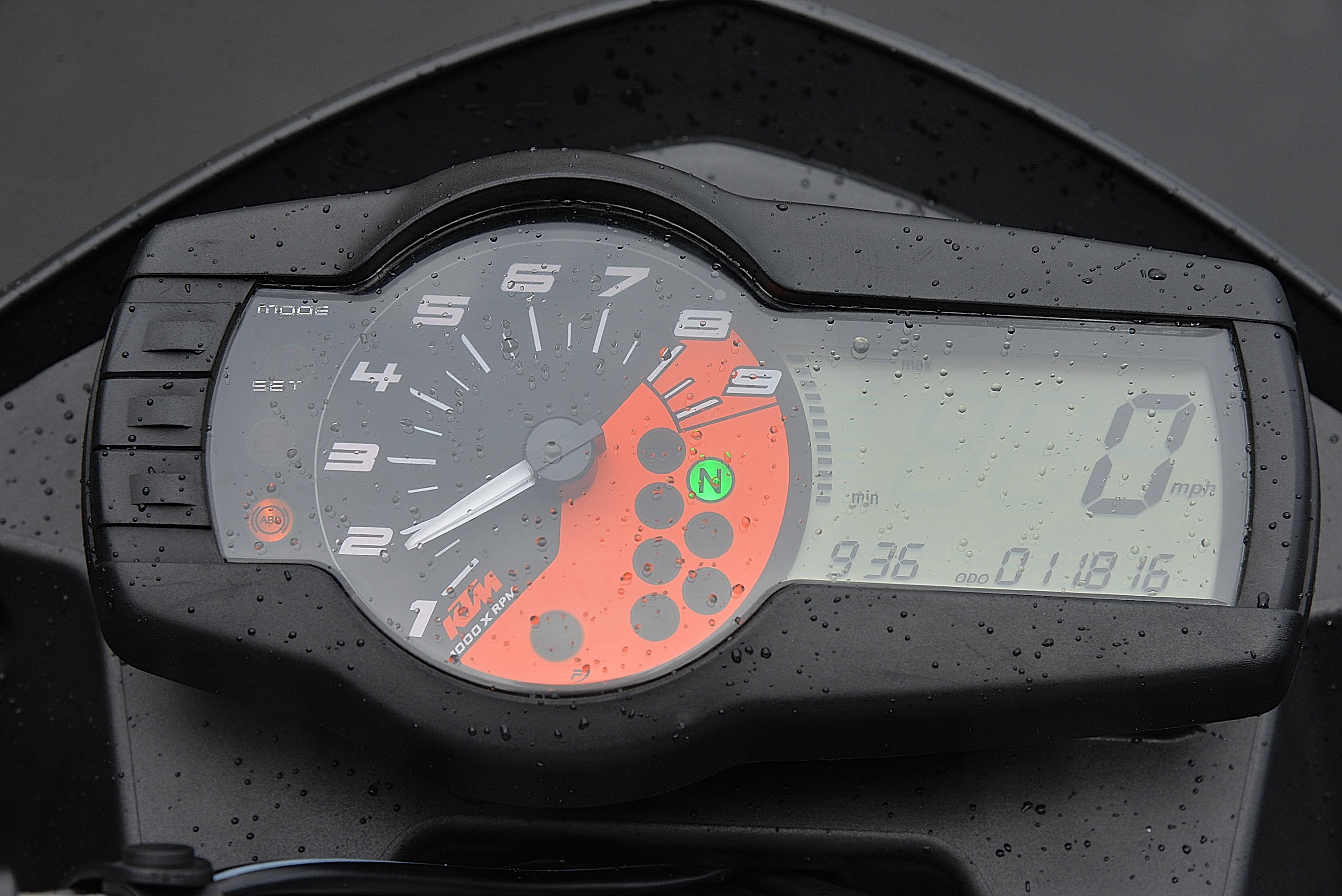

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Tachometer	Standard
Trip Odometer	Standard
Speedometer	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Light

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors

Standard

PAINT & FINISH

Paint	Standard
Paint - Metallic	No
Decal Kit	Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar
