Specifications

PRICING

Price	Standard
Price - Warranty (Months)	12
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Cooling	Liquid
Engine - Valves	6
Engine - Valves Per Cylinder	3
Engine - Valve Configuration	SOHC
Engine - Bore (mm)	79
Engine - Bore (in)	3.11
Engine - Stroke (mm)	76
Engine - Stroke (in)	2.99
Engine - Displacement (cc)	745
Engine - Displacement (ci)	45.5
Engine - Compression Ratio	9.6:1
Engine - Starter	Electric
Engine - Fuel Requirements	Regular
Engine - US Miles Per Gallon (Combined)	56
Engine - CAN Liters Per Kilometer (Combined)	4.2
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Fuel Injector Size (mm)	34
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	5
Transmission - Primary Drive (Rear Wheel)	Shaft
Transmission - Reverse	No

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Wheelbase (in)	64.6
Dimensions - Wheelbase (mm)	1640.8
Weight	Standard
Weight - Wet Weight (lbs)	549
Weight - Wet Weight (kg)	249
Capacities	Standard
Capacities - Fuel Capacity (gal)	3.7
Capacities - Fuel Capacity (l)	14
Capacities - Fuel Capacity Reserve (gal)	0.9
Capacities - Fuel Capacity Reserve (l)	3.4
Performance	Standard

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Construction - Body Material	Plastic
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver and Passenger
Foot Pegs - Adjustable	No
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Fork Guards	Yes
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Side Cover	Yes
Front Fender	Standard
Rear Fender	Standard
Stand	Standard
Stand - Stand Type	Kick
Handlebars	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Suspension Size (in)	1.6
Front Suspension - Front Suspension Size (mm)	41
Front Suspension - Front Travel (in)	4.6
Front Suspension - Front Travel (mm)	116.8
Front Suspension - Front Adjustable Fork Pre-Load	No
Front Suspension - Front Adjustable Rebound Damping	No
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Steering Damper	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Travel (in)	3.5
Rear Suspension - Rear Travel (mm)	88.9
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	No
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Steel
Wheels - Tube / Tubeless	Tubed
Wheels - Chromed	No
Tires	Standard
Tires - Front Tire Width	120
Tires - Front Tire Aspect Ratio	90
Tires - Front Wheel Diameter	17
Tires - Rear Tire Width	160
Tires - Rear Tire Aspect Ratio	80
Tires - Rear Wheel Diameter	15
Tires - Front Tire (Full Spec)	120/90 R17
Tires - Rear Tire (Full Spec)	160/80 R15

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Hydraulic Disc
Brakes - Front Brake Diameter (in)	11.7
Brakes - Front Brake Diameter (mm)	296
Brakes - Rear Brake Type	Drum

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Vinyl
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	25.8
Seat Specifications - Seat Height (mm)	655.3
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard
Sidecar - Detachable	No

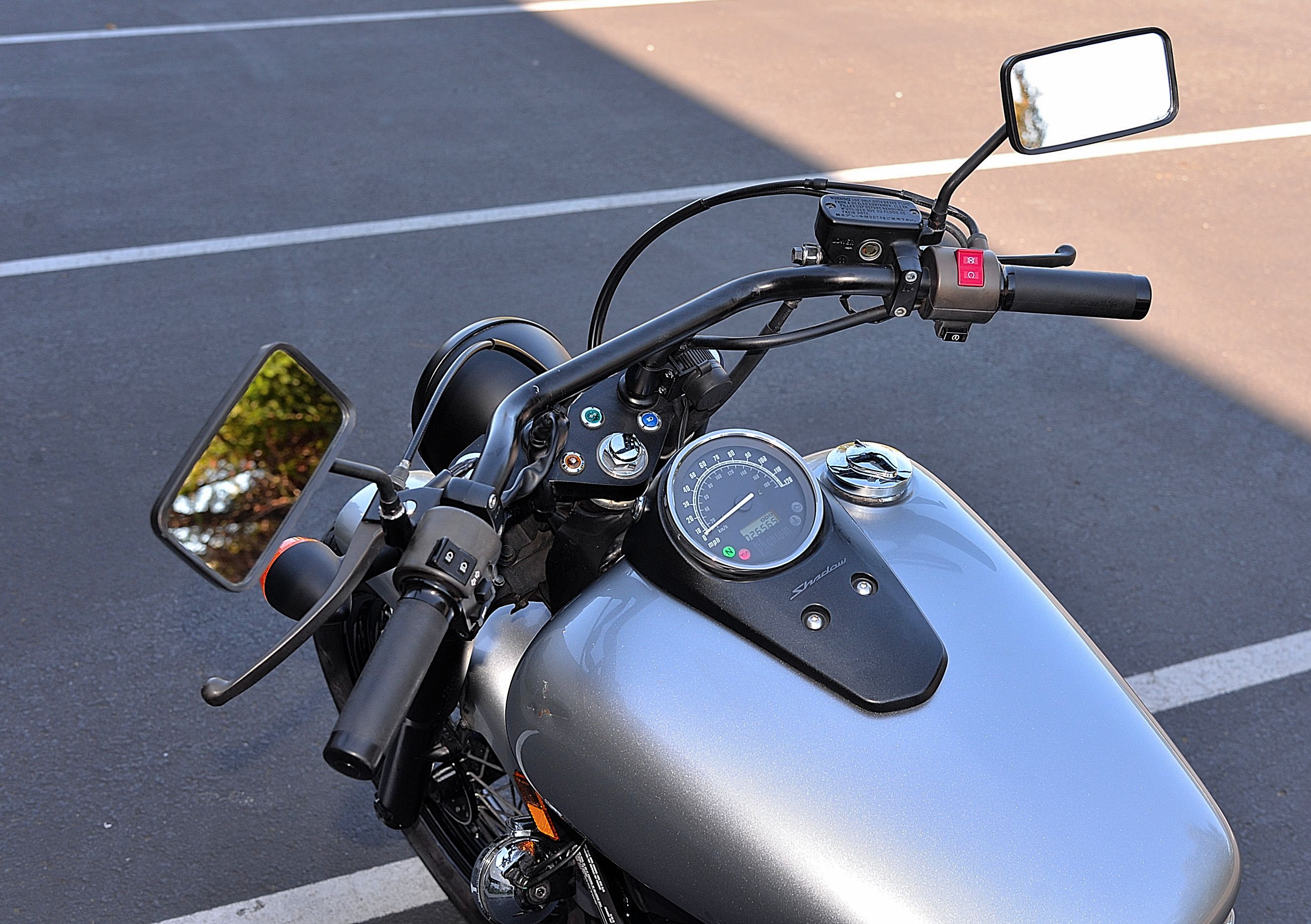

INSTRUMENTATION

Digital Instrumentation	Standard
Trip Odometer	Standard

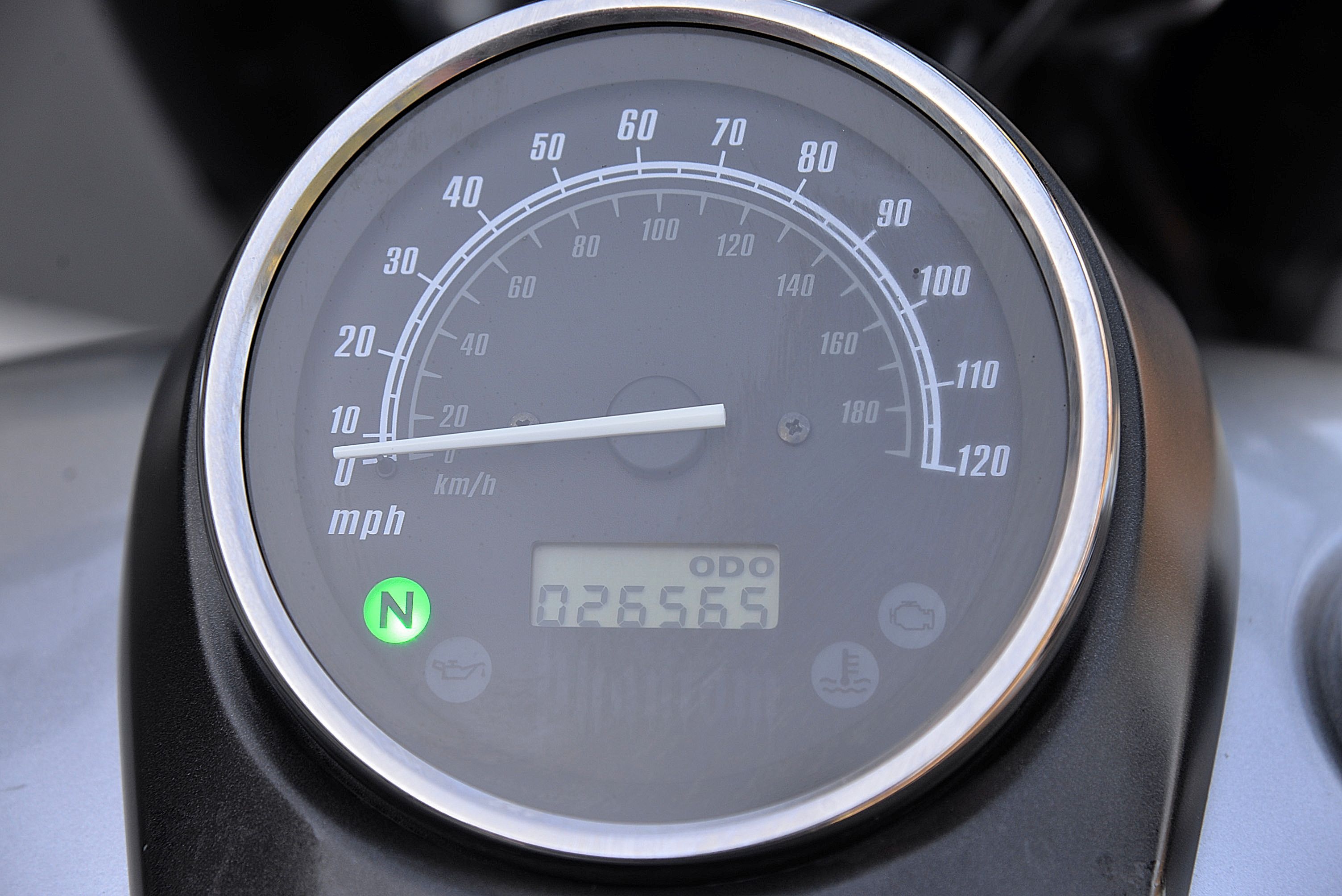

Speedometer	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Light

STORAGE

Underseat Storage	Standard
Cupholder - Number Of Cupholders	0
Sidecar Storage Cover - Camouflage Trim	No

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors

Standard

CONVENIENCE

Heated Hand Grips - Adjustable

No

PAINT & FINISH

Paint	Standard
Paint - Metallic	Yes

AUDIO & COMMUNICATION

Radio - Satellite	No
Speakers - Number Of Speakers	0
CD Player - Number Of Discs	0

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
