Specifications

PRICING

Price	Standard
Price - Warranty (Months)	24
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard

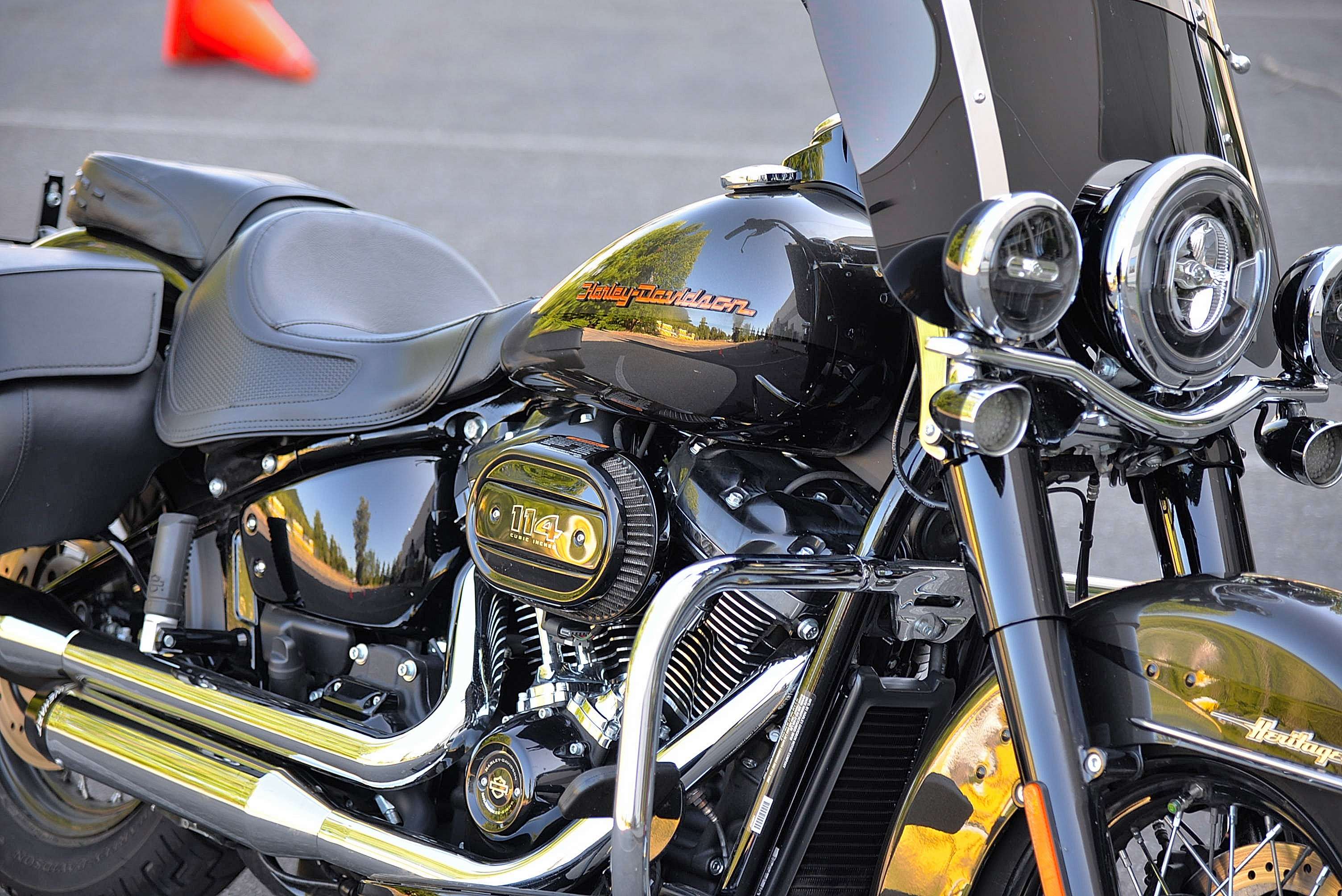

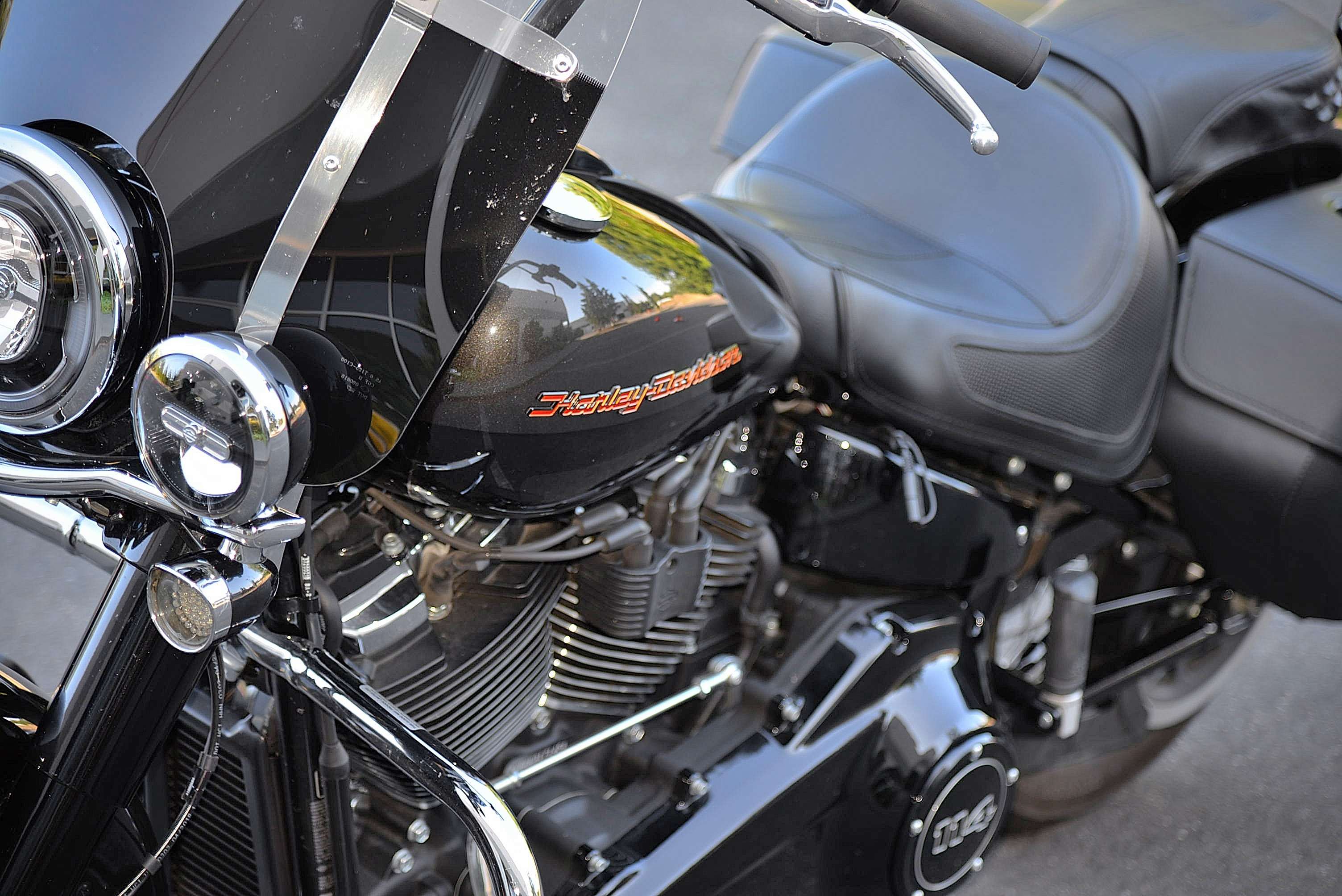

Engine - Engine Brand Name	Milwaukee-Eight™ 114
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	119
Engine - Torque (Nm)	161.3
Engine - Torque RPM	3000
Engine - Cooling	Oil
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	OHV - Pushrod
Engine - Bore (mm)	102.1
Engine - Bore (in)	4.02
Engine - Stroke (mm)	114.3
Engine - Stroke (in)	4.5
Engine - Displacement (cc)	1868
Engine - Displacement (ci)	114
Engine - Compression Ratio	10.5:1
Engine - Starter	Electric
Engine - Fuel Requirements	Premium
Engine - US Miles Per Gallon (Combined)	47
Engine - CAN Liters Per Kilometer (Combined)	5
Engine - Fuel Type	Gas
Engine - Turbocharged	No
Engine - Supercharged	No
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Belt
Transmission - Primary Drive (Engine / Transmission)	Chain
Transmission - Gear Ratio (1)	9.311
Transmission - Gear Ratio (2)	6.454
Transmission - Gear Ratio (3)	4.793
Transmission - Gear Ratio (4)	3.882
Transmission - Gear Ratio (5)	3.307
Transmission - Gear Ratio (6)	2.79
Transmission - Reverse	No
Transmission - Transmission Brand	Six-Speed Cruise Drive®
Heel Toe Shifter	Standard

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	95.1
Dimensions - Length (mm)	2415
Dimensions - Width (in)	36.6
Dimensions - Width (mm)	930
Dimensions - Height (in)	53.9
Dimensions - Height (mm)	1370
Dimensions - Wheelbase (in)	64.2
Dimensions - Wheelbase (mm)	1630
Dimensions - Ground Clearance (in)	4.7
Dimensions - Ground Clearance (mm)	120
Dimensions - Length (ft)	7.92
Dimensions - Length (ft/ft)	7
Dimensions - Length (ft/in)	11.1
Weight	Standard
Weight - Dry Weight (lbs)	697
Weight - Dry Weight (kg)	316.2
Weight - Wet Weight (lbs)	728
Weight - Wet Weight (kg)	330.2
Capacities	Standard
Capacities - Fuel Capacity (gal)	5
Capacities - Fuel Capacity (l)	18.9
Capacities - Storage Capacity (cuft)	1.5
Capacities - Storage Capacity (gal)	9.6
Capacities - Storage Capacity (l)	42.5
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.68

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Construction - Body Material	Steel
Floor Boards	Standard
Floor Boards - Floor Board Location	Driver
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Passenger
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Fork Guards	Yes
Exterior Guards - Tank Guard	No
Exterior Guards - Belt Guard	Yes
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Heel Guards	No
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Side Cover	Yes

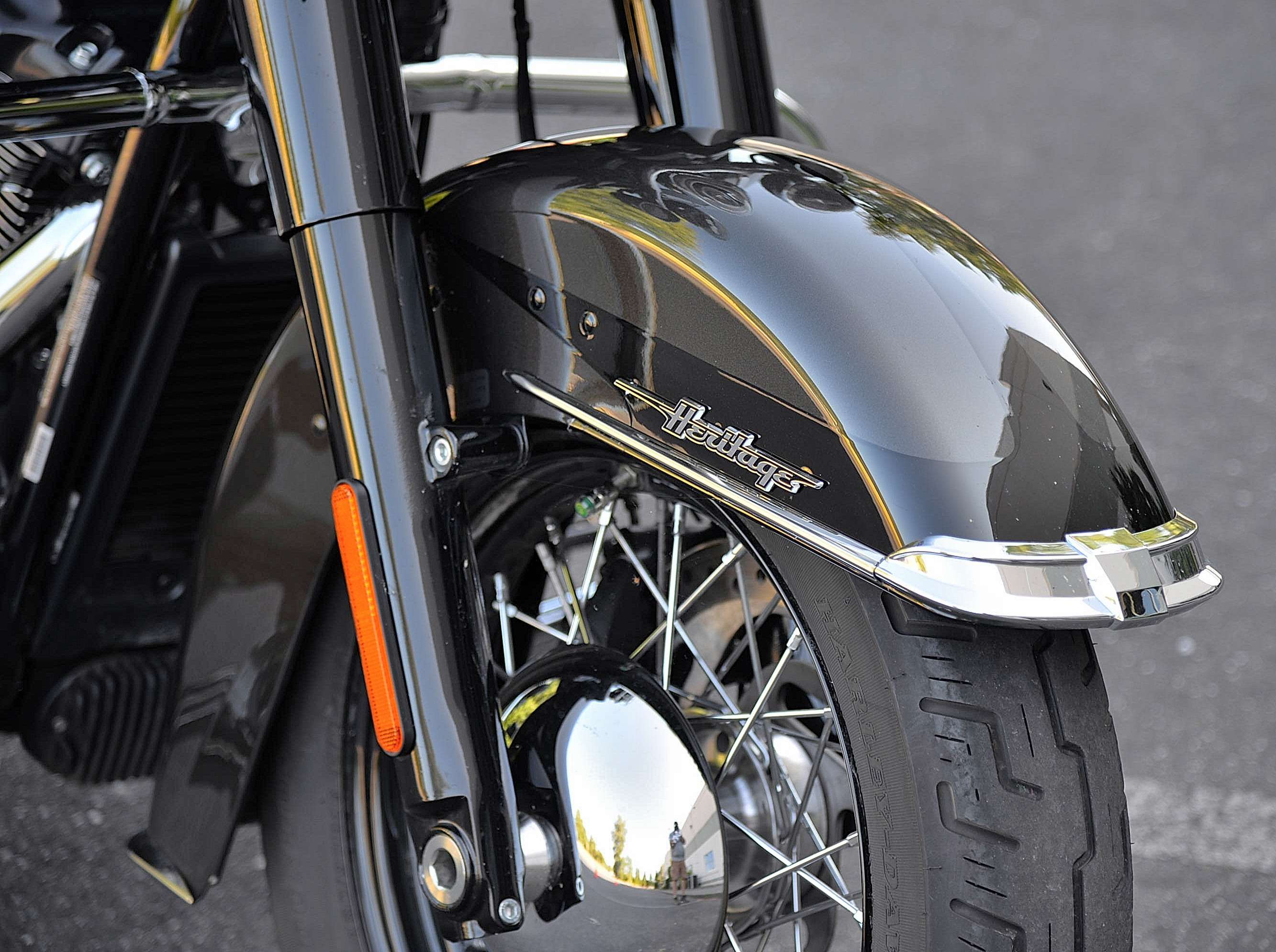

Front Fender	Standard
Front Fender Trim	Standard
Rear Fender	Standard
Rear Fender Trim	Standard
Tank Divider	Standard
Stand	Standard
Stand - Stand Type	Kick

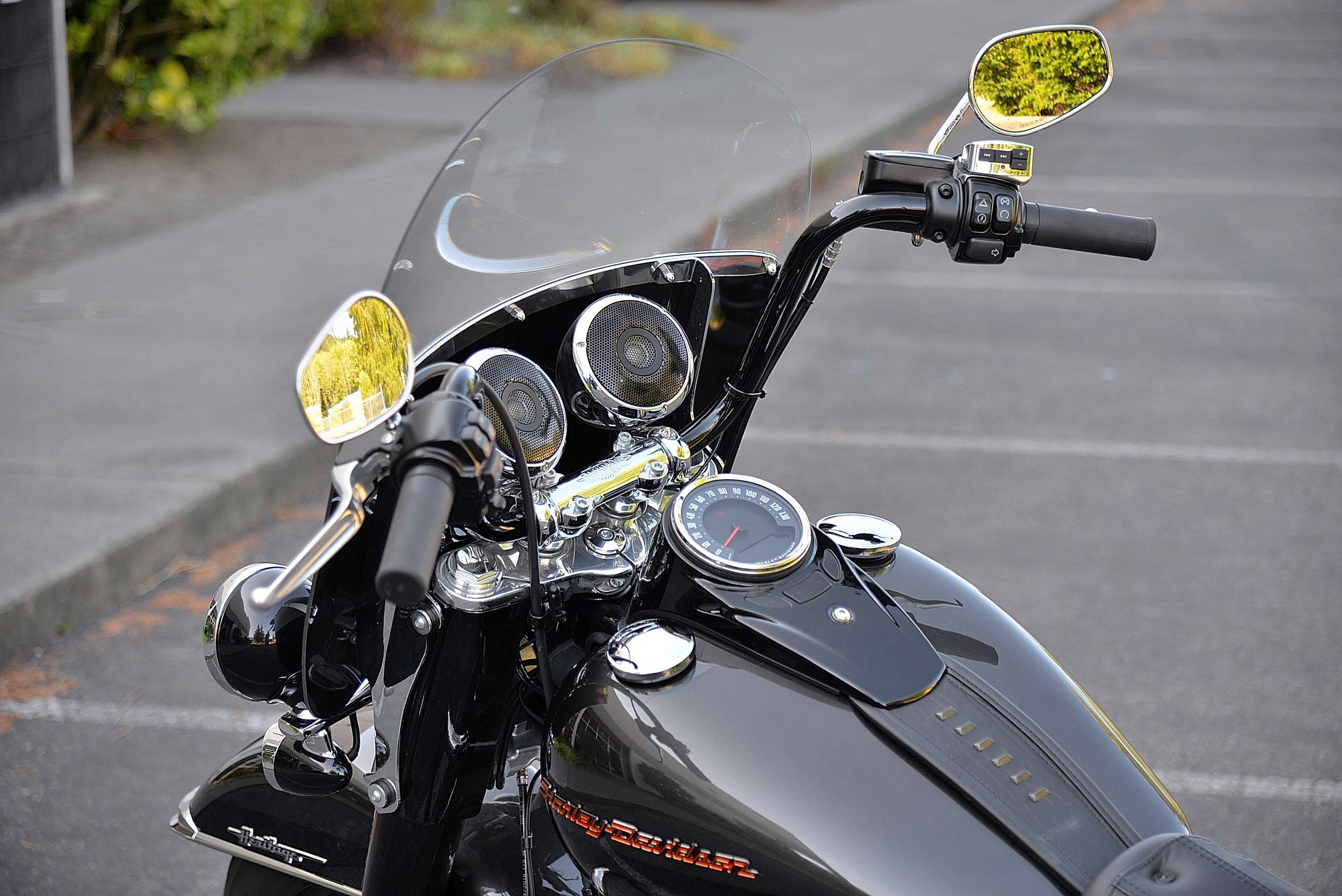

Handlebars	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Travel (in)	5.1
Front Suspension - Front Travel (mm)	130
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Steering Damper	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	Yes
Rear Suspension - Number Rear Shock Absorbers	1
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Steel
Wheels - Chromed	Yes
Tires	Standard
Tires - Front Tire Width	130
Tires - Front Tire Aspect Ratio	90
Tires - Front Tire Speed Rating	H
Tires - Front Wheel Diameter	16
Tires - Rear Tire Width	150
Tires - Rear Tire Aspect Ratio	80
Tires - Rear Tire Speed Rating	H
Tires - Rear Wheel Diameter	16
Tires - Front Tire (Full Spec)	130/90 R16 53H
Tires - Rear Tire (Full Spec)	150/80 R16 77H

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Hydraulic Disc
Brakes - Rear Brake Type	Hydraulic Disc
Anti-Lock Brakes	Standard

SEATS

Seat	Standard
Seat - Seat Type	Two-Piece
Seat - Adjustable	No
Seat - Seat Material	Leather
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	26.8
Seat Specifications - Seat Height (mm)	680.7
Seat Specifications - Number Of Seats	2
Detachable Passenger Seat	Standard
Grab Rail or Strap	Standard

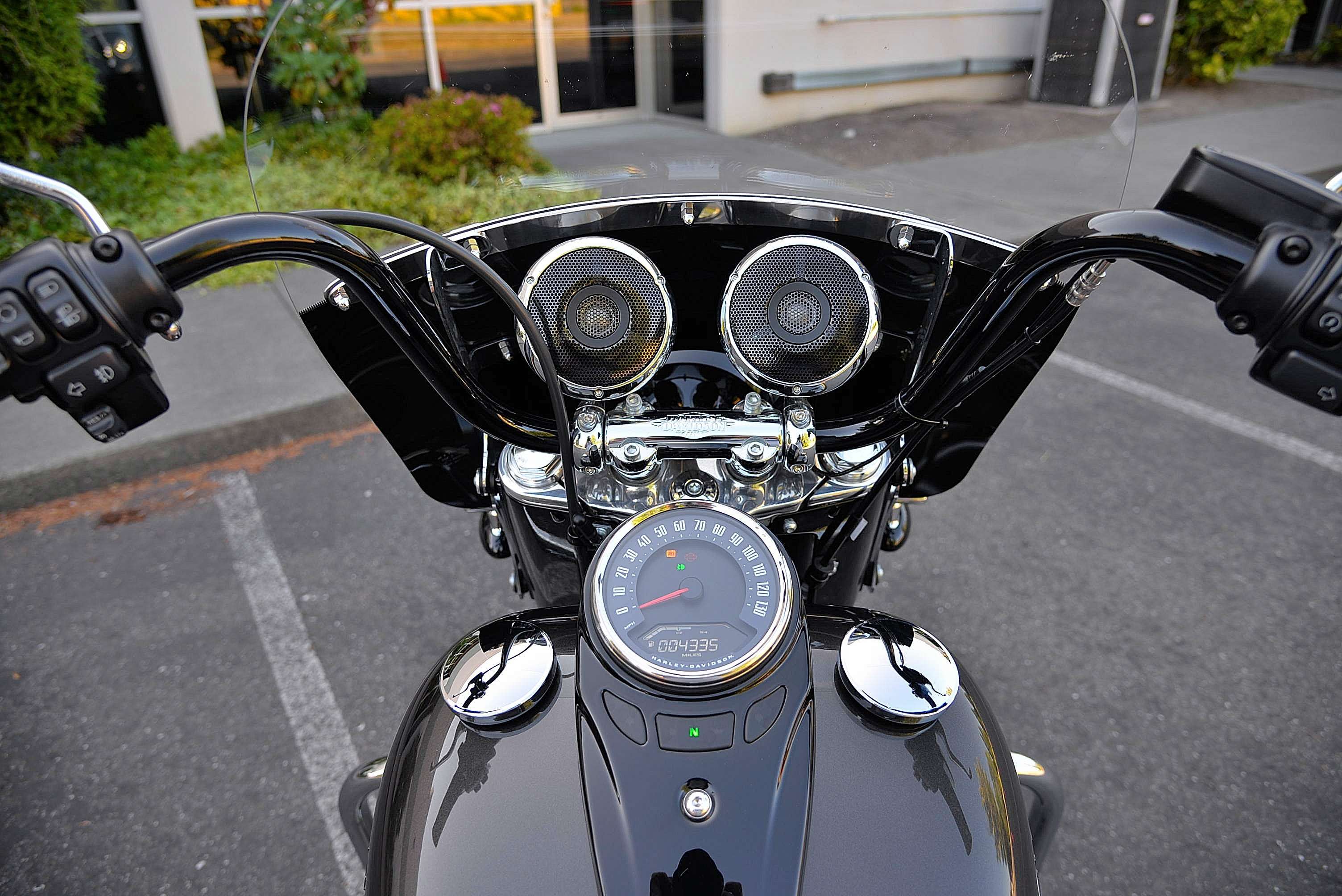

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Tachometer	Standard
Trip Odometer	Standard
Trip Computer	Standard

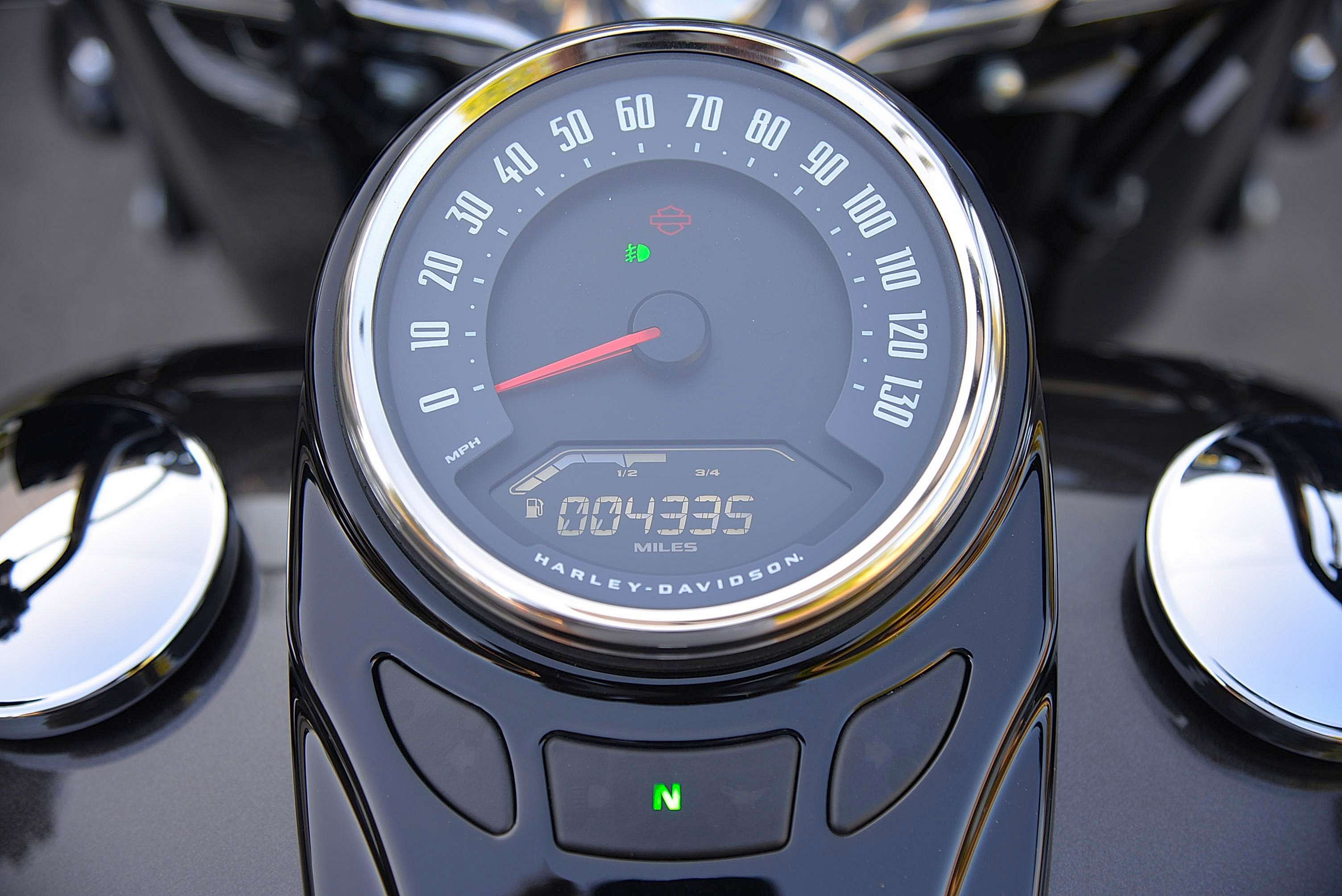

Speedometer	Standard
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge
Service Reminder	Standard

STORAGE

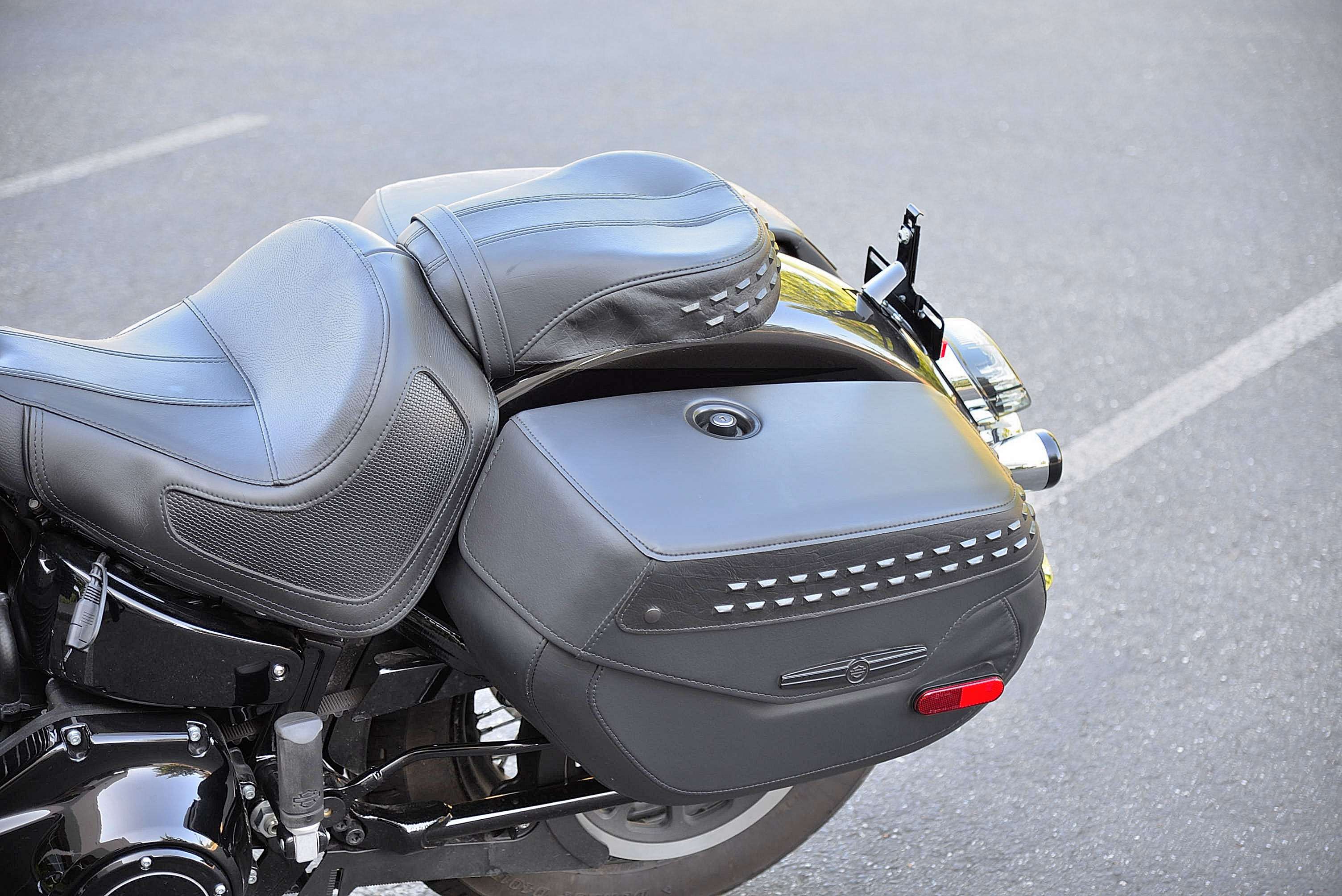

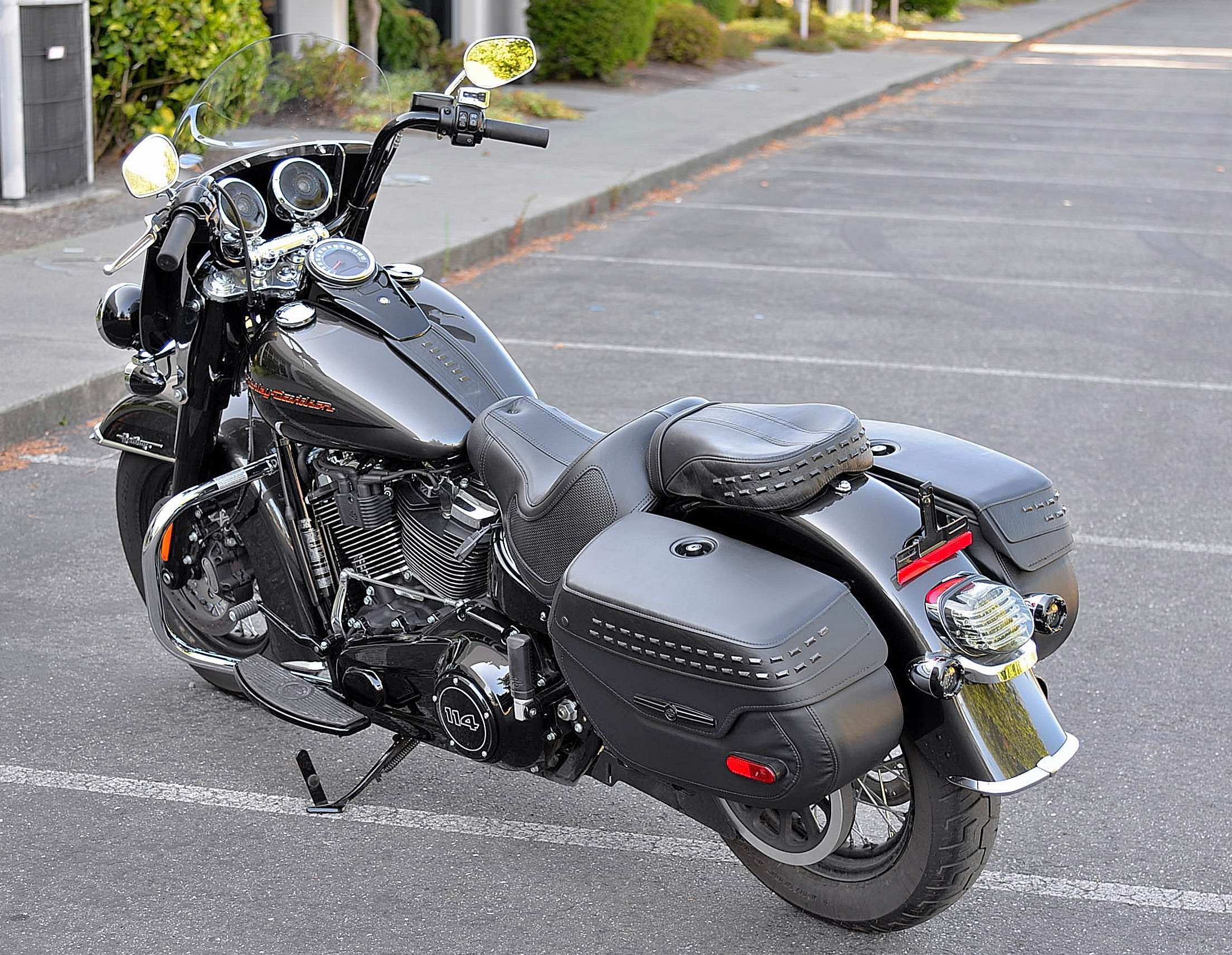

Saddle Bag(s)	Standard
Saddle Bag(s) - Saddle Bag Material	Leather
Saddle Bag(s) - Saddle Bag Trim	Studded
Saddle Bag(s) - Number Of Saddle Bags	2
Saddle Bag(s) - Location	Left and Right Side
Side Storage Mount	Standard
Leather Storage	Standard
Helmet Storage	Standard

LIGHTS

Headlight Mounting Bar	Standard
Passing Lamps	Standard

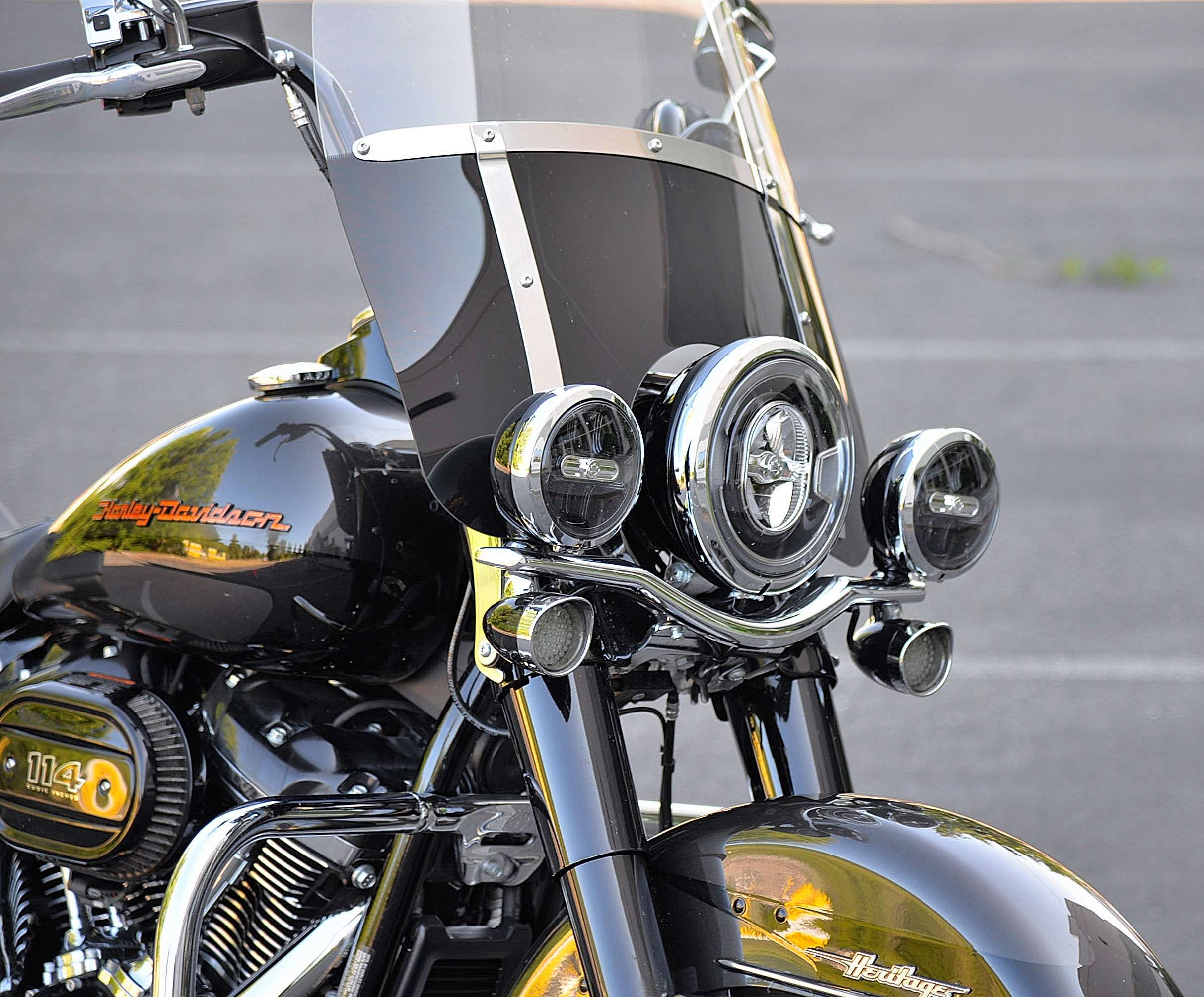

Headlight(s)	Standard
Headlight(s) - Type	LED

GLASS

Rearview Mirrors	Standard
Windshield	Standard
Windshield - Windshield Lowers	No
Windshield - Height Adjustable	No
Windshield - Tinted	No
Windshield - Height	High

CONVENIENCE

Engine Immobilizer	Standard
Engine Immobilizer - Engine Immobilizer Brand	Digitally Encoded Security System™ (DESS)
Keyless Ignition	Standard
Power Outlet	Standard
Cruise Control	Standard

PAINT & FINISH

Paint

Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

MOUNTS

Saddle Bag Mounts	Standard
Windshield Mounts	Standard

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
