Specifications

PRICING

Price	Standard
Price - Warranty (Months)	12
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Type	Parallel Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	46.4
Engine - Torque (Nm)	62.9
Engine - Torque RPM	8000
Engine - Cooling	Air
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	SOHC
Engine - Bore (mm)	77
Engine - Bore (in)	3.03
Engine - Stroke (mm)	83
Engine - Stroke (in)	3.27
Engine - Displacement (cc)	773
Engine - Displacement (ci)	47.2
Engine - Compression Ratio	8.4:1
Engine - Starter	Electric
Engine - Fuel Type	Gas
Engine - Turbocharged	No
Engine - Supercharged	No
Carburetion	Standard
Carburetion - Carburetion Brand	Keihin
Carburetion - Fuel Injector	Yes
Carburetion - Fuel Injector Size (mm)	34
Carburetion - Carburetor	No
Carburetion - Number Of Carburetors	0
Carburetion - Carburetion Type	Fuel Injected
Parental Controls - Speed Governor	No

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	5
Transmission - Primary Drive (Rear Wheel)	Chain
Transmission - Reverse	No

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	86.2
Dimensions - Length (mm)	2189.5
Dimensions - Width (in)	31.1
Dimensions - Width (mm)	790
Dimensions - Height (in)	42.3
Dimensions - Height (mm)	1074.4
Dimensions - Wheelbase (in)	57.7
Dimensions - Wheelbase (mm)	1465.6
Dimensions - Ground Clearance (in)	4.9
Dimensions - Ground Clearance (mm)	124.5
Dimensions - Length (ft)	7.18
Dimensions - Length (ft/ft)	7
Dimensions - Length (ft/in)	2.2
Weight	Standard
Weight - Wet Weight (lbs)	496.1
Weight - Wet Weight (kg)	225
Capacities	Standard
Capacities - Fuel Capacity (gal)	4
Capacities - Fuel Capacity (l)	15.1
Performance	Standard

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Construction - Body Material	Plastic
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver and Passenger
Foot Pegs - Adjustable	No
Exterior Guards	Standard
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Fork Guards	Yes
Exterior Guards - Saddle Bag Guard	No
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Side Cover	Yes
Front Fender	Standard
Rear Fender	Standard
Tank Divider - Pocket	No
Stand	Standard
Stand - Stand Type	Kick
Handlebars	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Suspension Size (in)	1.6
Front Suspension - Front Suspension Size (mm)	41
Front Suspension - Front Travel (in)	5.1
Front Suspension - Front Travel (mm)	129.5
Front Suspension - Front Adjustable Fork Pre-Load	No
Front Suspension - Front Adjustable Rebound Damping	No
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Steering Damper	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Travel (in)	4.2
Rear Suspension - Rear Travel (mm)	106.7
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	No
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Aluminum
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Tube / Tubeless	Tubed
Wheels - Front Wheel Width (in)	2.5
Wheels - Rear Wheel Width (in)	3
Tires	Standard
Tires - Tire Brand	Dunlop®
Tires - Front Tire Width	100
Tires - Front Tire Aspect Ratio	90
Tires - Front Tire Speed Rating	H
Tires - Front Wheel Diameter	18
Tires - Rear Tire Width	130
Tires - Rear Tire Aspect Ratio	80
Tires - Rear Tire Speed Rating	H
Tires - Rear Wheel Diameter	18
Tires - Front Tire (Full Spec)	Dunlop® K300F: 100/90-18 M/C 57H
Tires - Rear Tire (Full Spec)	Dunlop® K300: 130/80-18 M/C 66H

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Hydraulic Disc
Brakes - Front Brake Diameter (in)	12.6
Brakes - Front Brake Diameter (mm)	320
Brakes - Rear Brake Type	Hydraulic Disc
Brakes - Rear Brake Diameter (in)	10.6
Brakes - Rear Brake Diameter (mm)	270
Anti-Lock Brakes	Standard
Linked Brake System Front to Rear	Standard

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Vinyl
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	31.1
Seat Specifications - Seat Height (mm)	790
Seat Specifications - Number Of Seats	2
Seat Backrest - Backrest Logo Plate	No
Seat Backrest - Lumbar Adjustment	No
Sidecar - Detachable	No

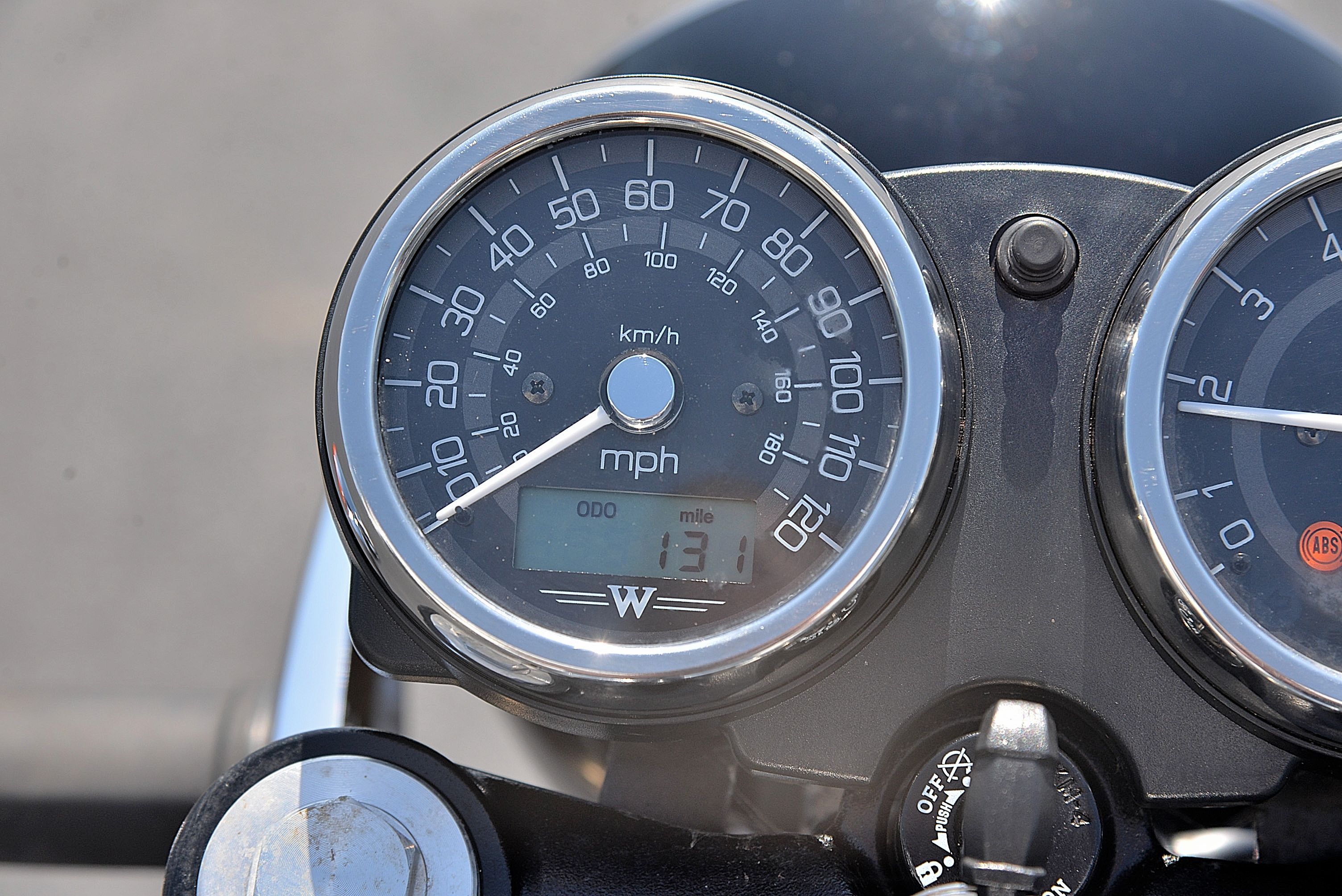

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Tachometer	Standard
Trip Odometer	Standard
Speedometer	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Light

STORAGE

Hard Side Cases - Number Of Side Cases	0
Saddle Bag(s) - Number Of Saddle Bags	0
Underseat Storage	Standard
Lockable Storage	Standard
Cupholder - Number Of Cupholders	0
Sidecar Storage Cover - Camouflage Trim	No

LIGHTS

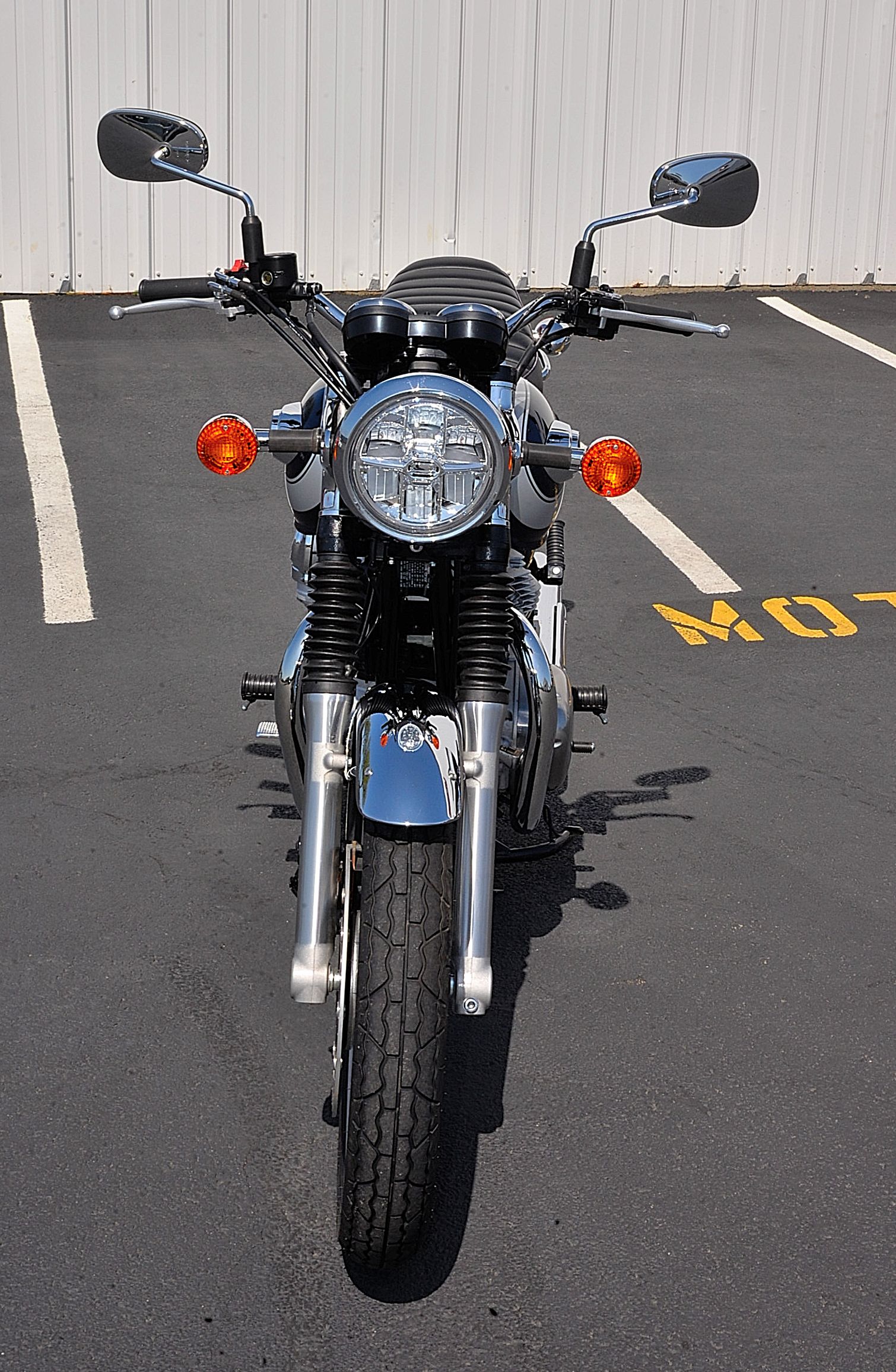

Headlight(s)	Standard
Headlight(s) - Type	LED

GLASS

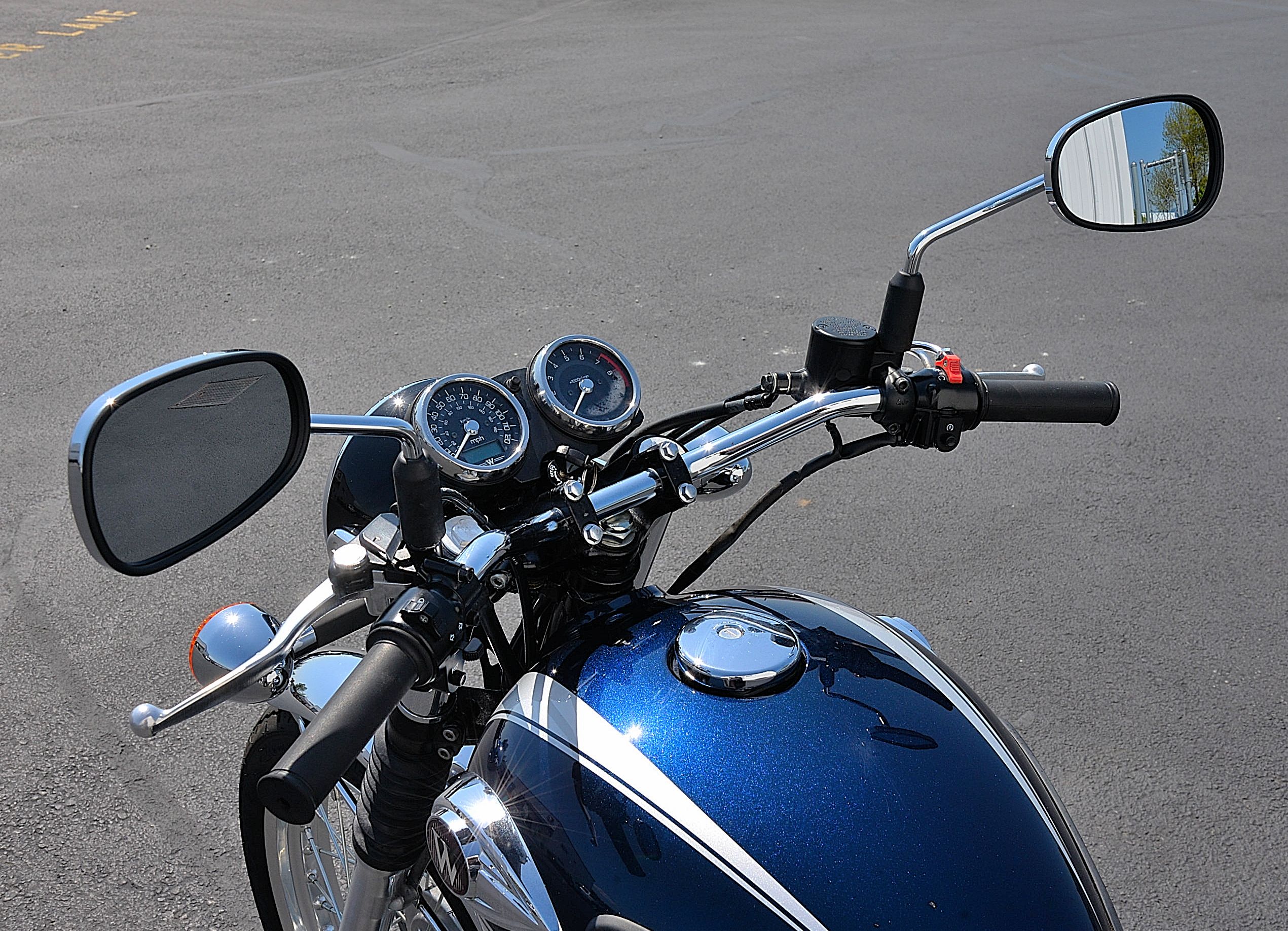

Rearview Mirrors	Standard
Windshield	Standard
Windshield - Windshield Lowers	No
Windshield - Height Adjustable	No
Windshield - Tinted	No
Windshield - Height	Low

PAINT & FINISH

Paint	Standard
Paint - Metallic	Yes

AUDIO & COMMUNICATION

Radio - Satellite	No
Speakers - Number Of Speakers	0
CD Player - Number Of Discs	0

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

MOUNTS

Windshield Mounts

Standard

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
