MSRP: $6,799.00
* Plus Applicable Charges
* Sale Price does not include Freight, Set-up, Tax, License and Doc fee.PERFORMANCE
V-TWIN ENGINE
Nothing pumps out the torque like a bold V-twin. The Phantom’s power makes it perfect for around-town cruising, commutes and casual weekend-long rides.
STYLE
STYLISH FINISH
Bobber-inspired styling with extensive blacked-out and matte finishes.
SHORTY FRONT FENDER
Minimalist front fender gives the Shadow Phantom a lighter, cleaner, more progressive look.
SPOKED WHEELS
Spoked black wheels and hubs feature a 120/90-17 front tire and 160/80-15 rear tire to complete the overall custom look.
COMFORT
LOW SEAT HEIGHT
Skimming the pavement at just 25.8 inches, the Phantom’s low seat height makes flat-footing it at stoplights or in parking lots a breeze. And the Phantom’s narrow seat/tank junction makes it feel even lower.
GUNFIGHTER SADDLE
Sleek, one-piece gunfighter-type seat is comfortable and looks great too.
DRIVETRAIN
SHAFT FINAL DRIVE
Clean, efficient, proven, low-maintenance. Shaft final drive is the perfect choice for a machine like this, and for riders who pile on the miles. You never have to worry about lubrication or adjustment out on the road. And an added plus: it helps keep your bike cleaner, too.

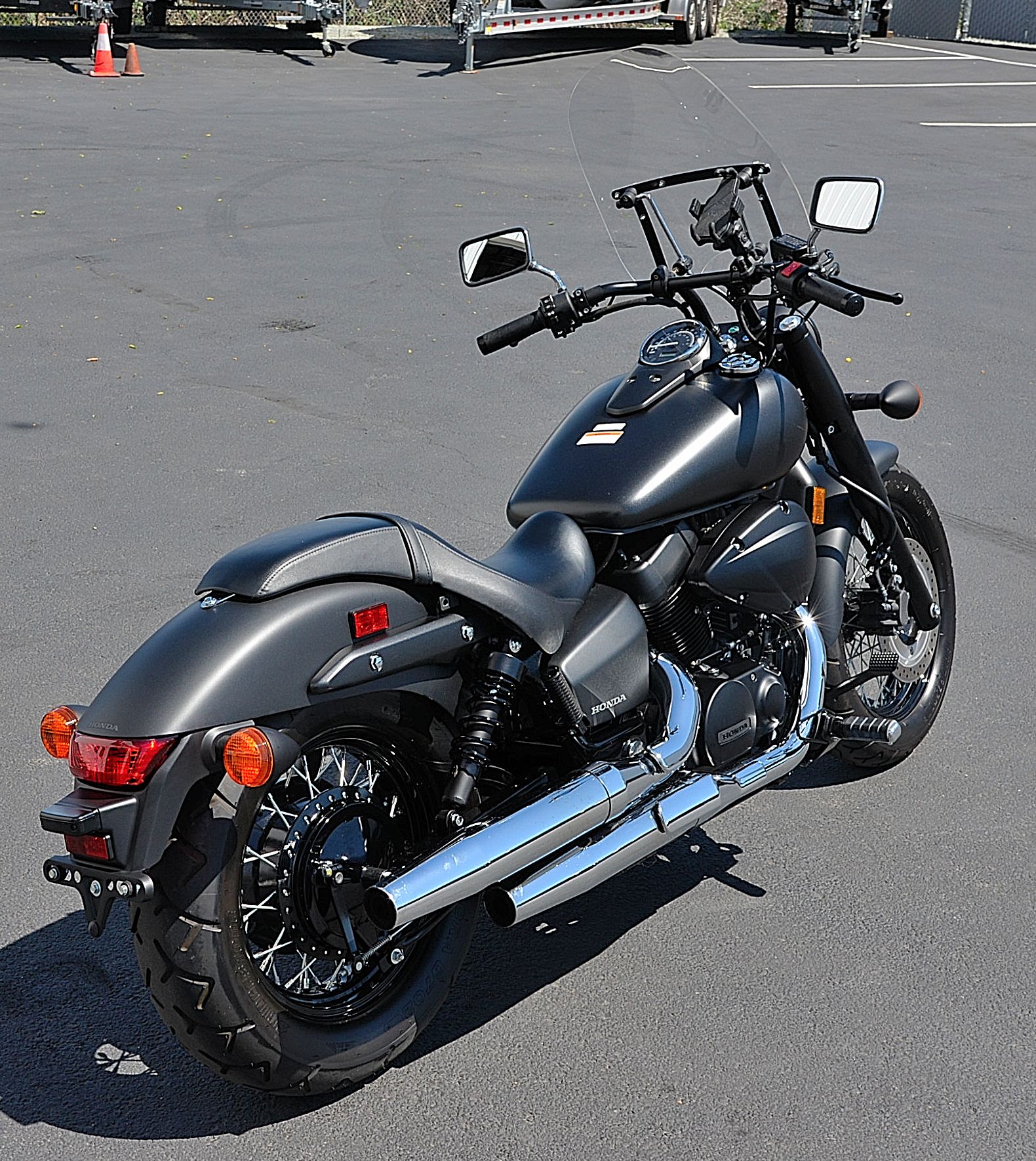

2-INTO-2 EXHAUST SYSTEM
Sleek pipes feature bullet-style mufflers for that classic cruiser style of yesteryear. Large-diameter head pipes and 2-into-2 system design combine to put out true, V-twin cruiser sound.
FIVE-SPEED TRANSMISSION
Wide-ratio five-speed transmission lets you cruise the boulevard at a low, unhurried pace, yet allows you hop on the highway without revving the engine through the roof.
PROGRAMMED FUEL INJECTION (PGM-FI)
Forget about fiddling with a choke—the Shadow's fuel injection system means no-hassle start-ups on cold mornings or at high altitudes, and optimal performance in any condition.
THREE-VALVE DUAL-PLUG COMBUSTION CHAMBER
It’s the best of both worlds: The three-valve combustion chambers used on many of our V-twin cruisers feature two intake valves and one exhaust, helping them breathe efficiently to boost both horsepower and torque.
ENGINEERING
FRONT-DISC BRAKE
If there’s one place you don’t want retro performance, it’s your brakes. That’s why we gave the Shadow Phantom a 296mm front disc for distinctly modern stopping power.
PRICING
| Price | Standard |
| Price - Warranty (Months) | 12 |
| Price - Warranty (Condition) | Limited |
ENGINE
| Engine | Standard |
| Engine - Engine Type | V Twin |
| Engine - Cylinders | 2 |
| Engine - Engine Stroke | 4-Stroke |
| Engine - Cooling | Liquid |
| Engine - Valves | 6 |
| Engine - Valves Per Cylinder | 3 |
| Engine - Valve Configuration | SOHC |
| Engine - Bore (mm) | 79 |
| Engine - Bore (in) | 3.11 |
| Engine - Stroke (mm) | 76 |
| Engine - Stroke (in) | 2.99 |
| Engine - Displacement (cc) | 745 |
| Engine - Displacement (ci) | 45.5 |
| Engine - Compression Ratio | 9.6:1 |
| Engine - Starter | Electric |
| Engine - Fuel Requirements | Regular |
| Engine - US Miles Per Gallon (Combined) | 56 |
| Engine - CAN Liters Per Kilometer (Combined) | 4.2 |
| Engine - Fuel Type | Gas |
| Engine - Turbocharged | No |
| Engine - Supercharged | No |
| Carburetion | Standard |
| Carburetion - Fuel Injector | Yes |
| Carburetion - Fuel Injector Size (mm) | 34 |
| Carburetion - Carburetor | No |
| Carburetion - Number Of Carburetors | 0 |
| Carburetion - Carburetion Type | Fuel Injected |
| Parental Controls - Speed Governor | No |
TRANSMISSION
| Transmission | Standard |
| Transmission - Transmission Type | Manual |
| Transmission - Number Of Speeds | 5 |
| Transmission - Primary Drive (Rear Wheel) | Shaft |
| Transmission - Gear Ratio (1) | 2.4 |
| Transmission - Gear Ratio (2) | 1.55 |
| Transmission - Gear Ratio (3) | 1.17 |
| Transmission - Gear Ratio (4) | 0.96 |
| Transmission - Gear Ratio (5) | 0.85 |
| Transmission - Reverse | No |
TECHNICAL SPECIFICATIONS
| Dimensions | Standard |
| Dimensions - Length (in) | 94.3 |
| Dimensions - Length (mm) | 2395.2 |
| Dimensions - Width (in) | 32.5 |
| Dimensions - Width (mm) | 825.5 |
| Dimensions - Height (in) | 42.9 |
| Dimensions - Height (mm) | 1089.7 |
| Dimensions - Wheelbase (in) | 64.6 |
| Dimensions - Wheelbase (mm) | 1640.8 |
| Dimensions - Ground Clearance (in) | 5.1 |
| Dimensions - Ground Clearance (mm) | 129.5 |
| Dimensions - Length (ft) | 7.86 |
| Dimensions - Length (ft/ft) | 7 |
| Dimensions - Length (ft/in) | 10.3 |
| Weight | Standard |
| Weight - Wet Weight (lbs) | 549 |
| Weight - Wet Weight (kg) | 249 |
| Capacities | Standard |
| Capacities - Fuel Capacity (gal) | 3.7 |
| Capacities - Fuel Capacity (l) | 14 |
| Capacities - Fuel Capacity Reserve (gal) | 0.9 |
| Capacities - Fuel Capacity Reserve (l) | 3.4 |
| Performance | Standard |
EXTERIOR
| Construction | Standard |
| Construction - Frame | Steel |
| Construction - Body Material | Plastic |
| Hand Grips | Standard |
| Foot Pegs | Standard |
| Foot Pegs - Foot Peg Location | Driver and Passenger |
| Foot Pegs - Adjustable | No |
| Exterior Guards | Standard |
| Exterior Guards - Chain Guard | No |
| Exterior Guards - Fork Guards | Yes |
| Exterior Guards - Hand Guards | No |
| Exterior Guards - Brush Guard | No |
| Exterior Guards - Light Guard | No |
| Exterior Covers | Standard |
| Exterior Covers - Side Cover | Yes |
| Front Fender | Standard |
| Rear Fender | Standard |
| Stand | Standard |
| Stand - Stand Type | Kick |
| Handlebars | Standard |
SUSPENSION
| Front Suspension | Standard |
| Front Suspension - Front Suspension Type | Telescopic Fork |
| Front Suspension - Front Suspension Size (in) | 1.6 |
| Front Suspension - Front Suspension Size (mm) | 41 |
| Front Suspension - Front Travel (in) | 4.6 |
| Front Suspension - Front Travel (mm) | 116.8 |
| Front Suspension - Front Adjustable Fork Pre-Load | No |
| Front Suspension - Front Adjustable Rebound Damping | No |
| Front Suspension - Front Central Suspension Strut | No |
| Front Suspension - Steering Damper | No |
| Rear Suspension | Standard |
| Rear Suspension - Rear Suspension Type | Twin Sided Swing Arm |
| Rear Suspension - Rear Travel (in) | 3.5 |
| Rear Suspension - Rear Travel (mm) | 88.9 |
| Rear Suspension - Rear Adjustable Shock / Spring Pre-Load | Yes |
| Rear Suspension - Rear Adjustable Rebound Damping | No |
| Rear Suspension - Number Rear Shock Absorbers | 2 |
| Rear Suspension - Air Adjustable | No |
WHEELS & TIRES
| Wheels | Standard |
| Wheels - Wheels Composition | Steel |
| Wheels - Tube / Tubeless | Tubed |
| Wheels - Chromed | No |
| Tires | Standard |
| Tires - Tire Brand | Dunlop® |
| Tires - Front Tire Width | 120 |
| Tires - Front Tire Aspect Ratio | 90 |
| Tires - Front Tire Speed Rating | S |
| Tires - Front Wheel Diameter | 17 |
| Tires - Rear Tire Width | 160 |
| Tires - Rear Tire Aspect Ratio | 80 |
| Tires - Rear Tire Speed Rating | S |
| Tires - Rear Wheel Diameter | 15 |
| Tires - Front Tire (Full Spec) | Dunlop® 120/90 R17 64S |
| Tires - Rear Tire (Full Spec) | Dunlop® 160/80 R15 74S |
BRAKES
| Brakes | Standard |
| Brakes - Front Brake Type | Hydraulic Disc |
| Brakes - Front Brake Diameter (in) | 11.7 |
| Brakes - Front Brake Diameter (mm) | 296 |
| Brakes - Rear Brake Type | Drum |
| Brakes - Rear Brake Diameter (in) | 7.1 |
| Brakes - Rear Brake Diameter (mm) | 180 |
SEATS
| Seat | Standard |
| Seat - Seat Type | One-Piece |
| Seat - Adjustable | No |
| Seat - Seat Material | Vinyl |
| Seat - Seat Location | Driver and Passenger |
| Seat - Folding | No |
| Seat Specifications | Standard |
| Seat Specifications - Seat Height (in) | 25.8 |
| Seat Specifications - Seat Height (mm) | 655.3 |
| Seat Specifications - Number Of Seats | 2 |
| Grab Rail or Strap | Standard |
| Sidecar - Detachable | No |

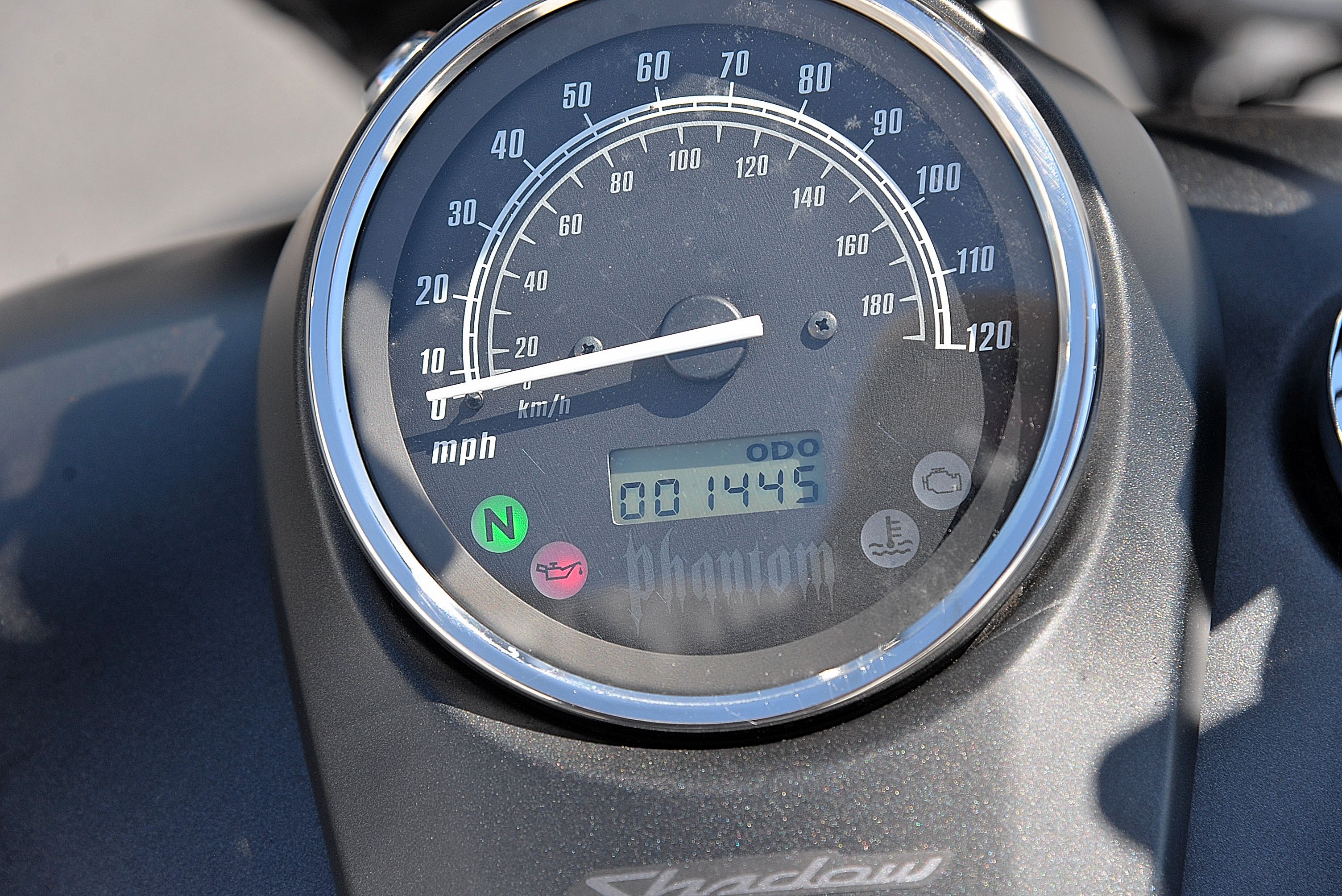

INSTRUMENTATION
| Digital Instrumentation | Standard |
| Trip Odometer | Standard |
| Speedometer | Standard |
| Temperature Warning | Standard |
| Temperature Warning - Temperature Warning Type | Light |
| Fuel Level Warning | Standard |
| Fuel Level Warning - Fuel Level Warning Type | Light |
STORAGE
| Hard Side Cases - Number Of Side Cases | 0 |
| Underseat Storage | Standard |
| Cupholder - Number Of Cupholders | 0 |
| Sidecar Storage Cover - Camouflage Trim | No |
LIGHTS
| Halogen Headlight(s) | Standard |
| Headlight(s) | Standard |
| Headlight(s) - Type | Halogen |
GLASS
| Rearview Mirrors | Standard |
| Windshield - Windshield Lowers | No |
| Windshield - Height Adjustable | No |
| Windshield - Tinted | No |
CONVENIENCE
| Heated Hand Grips - Adjustable | No |
PAINT & FINISH
| Paint | Standard |
| Paint - Metallic | Yes |
AUDIO & COMMUNICATION
| Radio - Satellite | No |
| Speakers - Number Of Speakers | 0 |
| CD Player - Number Of Discs | 0 |
STEERING
| Steering | Standard |
| Steering - Steering Control | Handlebar |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
